For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid

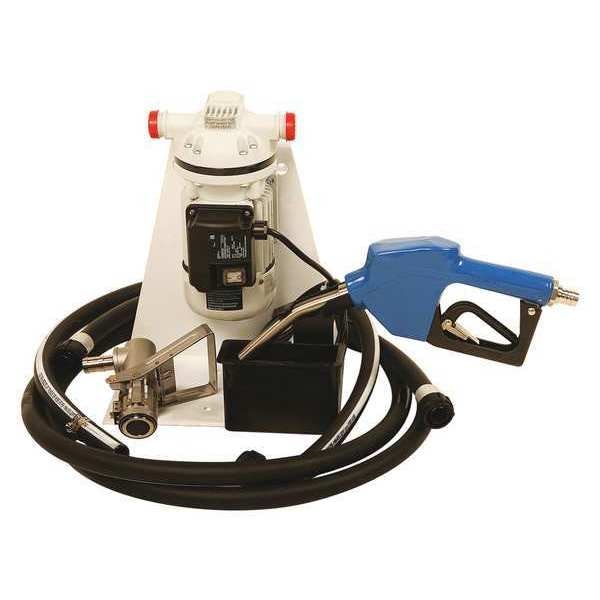

Item Electric Drum Pump
Includes Coupler, Drip Cup, Hose, Nozzle Hanger, Side Mount Hanger
Max. Viscosity 10 cps
Motor Type 2 Pole
Power Source Corded Electric
Wetted Materials EPDM, Polypropylene, Stainless Steel
Voltage 115VAC
Motor Enclosure IP55
Metered Yes
Motor RPM 1,750 RPM
Hz 60
Pressure Range 23 psi
Adapter Type RSV
Nozzle Material Stainless Steel
Inlet 3/4"
Max. Head 48 ft.
Nozzle Type Automatic
Housing Material Polypropylene
Amps 3.5
Application Diesel Exhaust Fluid, Anti-Freeze, Clean Water
Bypass Valve Internal
Gasket Material EPDM
Features Dispenses 8 gpm
Max. GPM for Water 8
Bearing Type Sealed Ball
Agency Compliance ISO
Self-Priming Yes
Max. Temp. 104 Degrees F
Max. Liquid Temp. 104 Degrees F
Pump Design Nutating Diaphragm
HP 1/10
Seal Material EPDM
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Max. Pressure 38 psi
GPM 8
Phase Single
Duty Intermittent
pH Range 5.0 to 10
Shaft Material Stainless Steel
Duty Cycle Intermittent
Adapter Material 316 Stainless Steel
Pump Body Material Polypropylene
Hose Material Peroxide Cured EPDM
Seal Type Mechanical
Suction Lift 6 ft.
Max. Specific Gravity 1.09
Full Load Amps 4.5 A
Suction Tube Material EPDM
Includes Nozzle Yes
Max. Flow Rate 8 gpm
For Container Type Drum, Tote
Variable Speed No
Max. Fluid Temp. 104 Degrees F
Diesel Exhaust Fluid Compatible Yes
Nozzle Operation Automatic
Spout Connection Type Integral to Nozzle
Pump Connection OD 1 in
Max. Head - Pumps 48 ft
Suction Tube OD 1 in Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Motor HP 1/10 hp
Frequency (Hz) 60 Hz
Noise Level 70 dB
Discharge Tube Outlet OD 1 in
Hose Cover Material Thermal Plastic
Max. Oil Flow 8 gpm
Suction Tube ID 3/4 in
Spout Material 316 Stainless Steel
Includes Bung Adapter No
Includes Spout Yes
Includes Discharge Hose Yes
Housing Material - Pumps Polypropylene
Min. Fluid Temp. 17 Degrees F
Runs Dry Yes
Discharge Connection Type Hose Barb Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Max. Head Pressure 23 psi
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Includes Suction Tube Yes
Discharge Tube Outlet ID 3/4 in
Number of Phases 1
Hose Tube Material EPDM
Food Grade No
Pump Connection Type Hose Barb
Max. Outlet Pressure 23 psi
Rated Voltage 115 V AC
Explosion Proof No
Grease NT
Gear Lube NT
Motor Enclosure Design Totally Enclosed Fan Cooled
Maximum Viscosity 10 cps
Maximum Fluid Temperature 104 Degrees F
Nozzle Fluid Compatibility DEF
Maximum Flow Rate 8 gpm
Maximum Outlet Pressure 23 psi
Housing Finish Powder Coated
Mount Type Foot
Standards ISO
Pump Connection ID 3/4 in
Adapter Connection Standard Buttress
Minimum Fluid Temperature 17 Degrees F
Full Load Current 4.5 A
Maximum Oil Flow 8 gpm
Wetted Material EPDM/Polypropylene/Stainless Steel
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Motor Horsepower 1/10 hp
Hazardous Location Class Not Rated
Maximum Head Pressure 23 psi
Plug Type NEMA 5-15-P
Motor Speed 1,750 RPM
Static Protection Not Groundable
Maximum Head 48 ft
Meter Type Included No Meter Included
Pump Technology Diaphragm
Frequency 60 Hz
Power Source - TS Only Corded Electric
