For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid

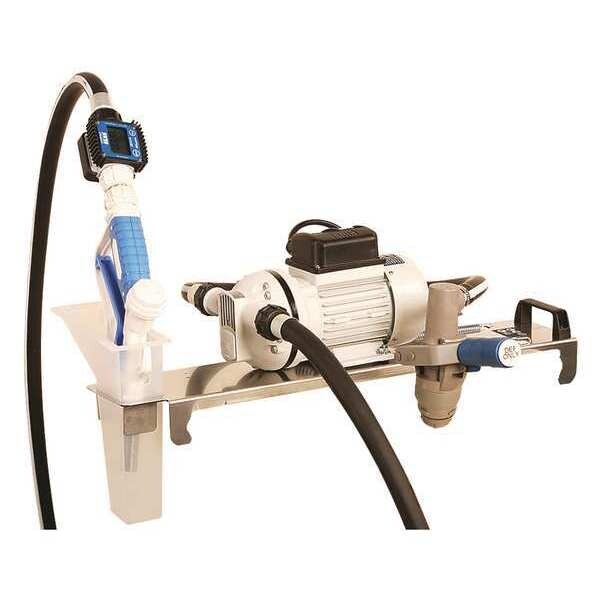

Item Electric Drum Pump
Includes Nozzle Holder, Spring Loaded Drum Mounting Bracket
Max. Viscosity 10 cps
Motor Type 2 Pole
Power Source Corded Electric
Wetted Materials EPDM, Polypropylene, Stainless Steel
Voltage 115VAC
Motor Enclosure IP55
Metered Yes
Motor RPM 1,750 RPM
Max. Head 48 ft.
Seal Material EPDM
Hose Material Peroxide Cured EPDM
Gasket Material EPDM
Phase Single
HP 1/10
Pump Body Material Polypropylene, EPDM
Hz 60
Max. Liquid Temp. 104 Degrees F
pH Range 9.8 to 10
Max. Pressure 23 psi
Application Diesel Exhaust Fluid, Anti-Freeze, Clean Water
GPM 8
DEF Compatible Yes
Housing Material Polypropylene
Standards ISO
Max. Temp. 104 Degrees F
Agency Compliance ISO
RPM 1730
Max. GPM for Water 8
Full Load Amps 4.5 A
Self-Priming Yes
Suction Tube Material EPDM
Hose Tube Material EPDM
Frequency (Hz) 60 Hz
Pump Connection Type Hose Barb
Includes Discharge Hose Yes
Max. Head Pressure 23 psi
Noise Level 70 dB
Food Grade No
Nozzle Material Polypropylene/Stainless Steel
Suction Tube ID 3/4 in
Variable Speed No
Includes Spout Yes
Hose Cover Material Thermal Plastic
Nozzle Operation Manual
Max. Flow Rate 8 gpm Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Housing Material - Pumps Polypropylene
Spout Connection Type Integral to Nozzle
Max. Fluid Temp. 104 Degrees F Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Discharge Connection Type Hose Barb
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Pump Connection OD 1 in
Discharge Tube Outlet ID 3/4 in
Max. Oil Flow 8 gpm
Runs Dry Yes
Duty Cycle Intermittent
Min. Fluid Temp. 17 Degrees F
Includes Nozzle Yes
Diesel Exhaust Fluid Compatible Yes
Spout Material 316 Stainless Steel
Includes Suction Tube Yes
Suction Tube OD 1 in
Discharge Tube Outlet OD 1 in
For Container Type Drum, Tote
Number of Phases 1
Max. Head - Pumps 48 ft
Includes Bung Adapter No
Motor HP 1/10 hp
Explosion Proof No
Grease NT
Gear Lube NT
Rated Voltage 115 V AC
Max. Outlet Pressure 23 psi
Maximum Flow Rate 8 gpm
Meter Type Included Digital
Mount Type Foot
Motor Enclosure Design Totally Enclosed Fan Cooled
Pump Connection ID 3/4 in
Maximum Viscosity 10 cps
Frequency 60 Hz
Maximum Head 48 ft
Full Load Current 4.5 A
Wetted Material EPDM/Polypropylene/Stainless Steel
Maximum Fluid Temperature 104 Degrees F
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Maximum Oil Flow 8 gpm
Pump Technology Diaphragm
Minimum Fluid Temperature 17 Degrees F
Adapter Connection Standard Buttress
Housing Finish Powder Coated
Maximum Head Pressure 23 psi
Maximum Outlet Pressure 23 psi
Meter Unit Of Measure Gallons, Liters
Hazardous Location Class Not Rated
Static Protection Not Groundable
Motor Horsepower 1/10 hp
Motor Speed 1,750 RPM
Plug Type NEMA 5-15-P
Nozzle Fluid Compatibility DEF
Power Source - TS Only Corded Electric
