Voltage 115VAC
Application Agriculture; Automotive; Construction; Farming; Industrial; Marine; Trucking
HP 1
Housing Material 316 Stainless Steel
GPM 25
Seal Material EPDM
RPM 1750
Pump Design Centrifugal
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

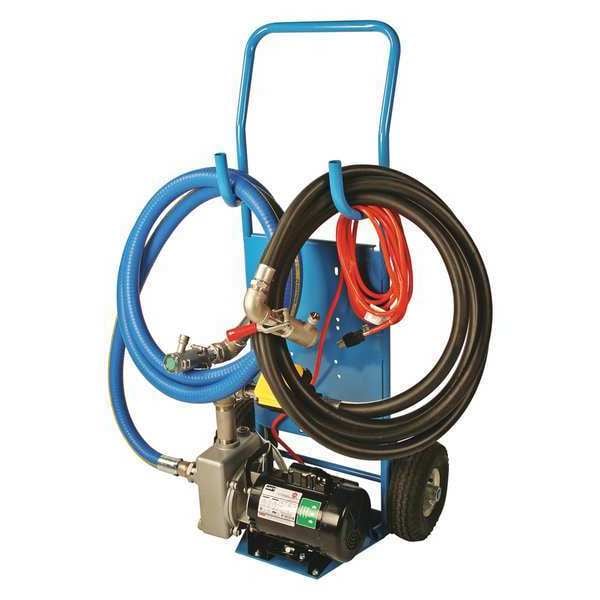

Item Electric Drum Pump
Compatible Fluids Diesel Exhaust Fluid, Antifreeze, Clean Water
Features TEFC with Overload Protection
Nozzle Type MicroMatic RSV
Bearing Type Sealed Ball
Metered Yes
For Use With Antifreeze, Clean Water, Diesel Exhaust Fluid
Standards ISO
Pressure Range 38 psi
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Includes (2) Wheel Cart
Nozzle Material Polypropylene/Stainless Steel
Duty Cycle Continuous
Bypass Valve No
Wetted Materials EPDM, Polypropylene, Stainless Steel
Motor Enclosure TEFC
Motor Type 4 Pole
Agency Compliance ISO
Max. Head Pressure 45 psi
Frequency (Hz) 60 Hz
Motor RPM 3,600 RPM
Motor HP 1 hp
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Hose Tube Material EPDM
Hose Cover Material Polyurethane
Discharge Tube Outlet OD 1 in
Min. Fluid Temp. 17 Degrees F
Suction Tube Material Plastic
Includes Spout Yes Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Power Source Corded Electric Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Food Grade No
Spout Connection Type FNPT
Discharge Tube Outlet ID 1 in
Max. Oil Flow 30 gpm
Housing Material - Pumps 316 Stainless Steel
Max. Flow Rate 30 gpm
Pump Connection OD 1 1/4 in
Max. Head - Pumps 94 ft
Full Load Amps 6.0 A
Includes Nozzle Yes
Includes Suction Tube Yes
Pump Connection Type FNPT
Noise Level 80 dB
Includes Discharge Hose Yes
Runs Dry Yes
Variable Speed No
Discharge Connection Type FNPT
Diesel Exhaust Fluid Compatible Yes
Max. Fluid Temp. 104 Degrees F
Number of Phases 1
Suction Tube ID 3/4 in
Includes Bung Adapter No
Spout Material 316 Stainless Steel
Suction Tube OD 1 in
For Container Type Drum, Tote
Nozzle Operation Manual
Rated Voltage 115 V AC
Max. Outlet Pressure 35 psi
Gear Lube NT
Grease NT
Explosion Proof No
Minimum Fluid Temperature 17 Degrees F
Nozzle Fluid Compatibility DEF
Maximum Outlet Pressure 35 psi
Maximum Oil Flow 30 gpm
Plug Type NEMA 5-15-P
Maximum Flow Rate 30 gpm
Motor Enclosure Design Totally Enclosed Fan Cooled
Adapter Connection Standard Buttress
Frequency 60 Hz
Meter Unit Of Measure Gallons, Liters
Pump Connection ID 1 1/4 in
Maximum Fluid Temperature 104 Degrees F
Full Load Current 6 A
Mount Type Foot
Hazardous Location Class Not Rated
Maximum Viscosity 10 cps
Motor Speed 3,600 RPM
Static Protection Not Groundable
Housing Finish Powder Coated
Pump Technology Centrifugal
Maximum Head 94 ft
Maximum Head Pressure 45 psi
Phase Single
Meter Type Included Digital
Wetted Material EPDM/Polypropylene/Stainless Steel
Motor Horsepower 1 hp
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Power Source - TS Only Corded Electric
Power Source - old Corded Electric
