Voltage 115VAC
Application Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP 1/10
Housing Material Polypropylene
GPM 8
Seal Material EPDM
Pump Design Nutating Diaphragm
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

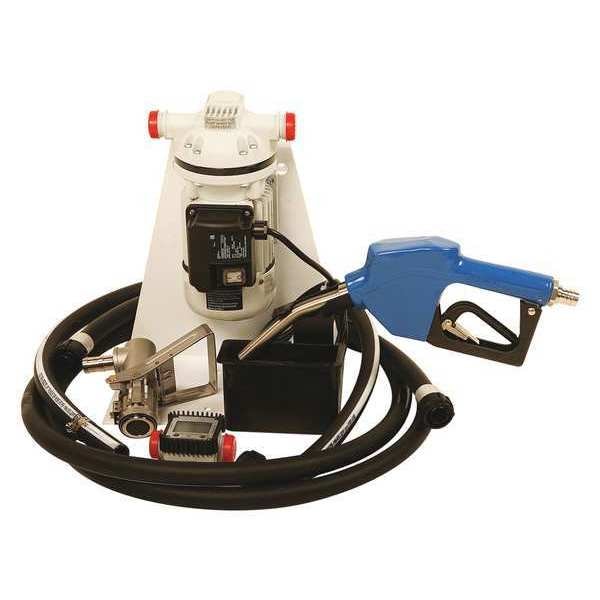

Item Electric Drum Pump
Amps 3.5
Phase Single
pH Range 5.0 to 10
Nozzle Type Automatic
Motor Enclosure IP55
Inlet 3/4"
Adapter Type RSV
Gasket Material EPDM
Pressure Range 23 psi
Max. Pressure 36 psi
Max. Head 48 ft.
Wetted Materials EPDM, Polypropylene, Stainless Steel
Pump Body Material Polypropylene
Hose Material Peroxide Cured EPDM
Duty Intermittent
Shaft Material Stainless Steel
Max. GPM for Water 8
Bypass Valve Internal
Motor Type 2 Pole
Includes Coupler, Drip Cup, Hose, Nozzle Hanger, Side Mount Hanger
Agency Compliance ISO
Nozzle Material Stainless Steel
Adapter Material 316 Stainless Steel
Bearing Type Sealed Ball
Max. Liquid Temp. 104 Degrees F
Max. Temp. 104 Degrees F
For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Features Dispenses 8 gpm
Suction Lift 6 ft.
Duty Cycle Intermittent
Metered No
Hz 60
Max. Specific Gravity 1.09
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Suction Tube Material EPDM
Nozzle Operation Automatic
Frequency (Hz) 60 Hz
Max. Flow Rate 8 gpm
Spout Connection Type Integral to Nozzle
Food Grade No
Runs Dry Yes
Includes Suction Tube Yes
Full Load Amps 4.5 A
Min. Fluid Temp. 17 Degrees F
Spout Material 316 Stainless Steel
Includes Discharge Hose Yes
Number of Phases 1
Max. Head - Pumps 48 ft Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Suction Tube OD 1 in
Suction Tube ID 3/4 in
Discharge Connection Type Hose Barb
For Container Type Drum, Tote
Includes Nozzle Yes Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Pump Connection OD 1 in
Discharge Tube Outlet ID 3/4 in
Motor RPM 1,750 RPM
Motor HP 1/10 hp
Hose Tube Material EPDM
Includes Bung Adapter No
Max. Fluid Temp. 104 Degrees F
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Variable Speed No
Discharge Tube Outlet OD 1 in
Noise Level 70 dB
Housing Material - Pumps Polypropylene
Pump Connection Type Hose Barb
Includes Spout Yes
Max. Oil Flow 8 gpm
Max. Head Pressure 23 psi
Hose Cover Material Thermal Plastic
Power Source Corded Electric
Diesel Exhaust Fluid Compatible Yes
Max. Outlet Pressure 23 psi
Explosion Proof No
Gear Lube NT
Rated Voltage 115 V AC
Grease NT
Full Load Current 4.5 A
Frequency 60 Hz
Static Protection Not Groundable
Maximum Fluid Temperature 104 Degrees F
Hazardous Location Class Not Rated
Motor Speed 1,750 RPM
Maximum Flow Rate 8 gpm
Maximum Head 48 ft
Plug Type NEMA 5-15-P
Pump Connection ID 3/4 in
Pump Technology Diaphragm
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Motor Enclosure Design Totally Enclosed Fan Cooled
Maximum Oil Flow 8 gpm
Maximum Viscosity 10 cps
Meter Unit Of Measure Gallons, Liters
Meter Type Included Digital
Maximum Head Pressure 23 psi
Wetted Material EPDM/Polypropylene/Stainless Steel
Maximum Outlet Pressure 23 psi
Mount Type Foot
Adapter Connection Standard Buttress
Nozzle Fluid Compatibility DEF
Standards ISO
Minimum Fluid Temperature 17 Degrees F
Housing Finish Powder Coated
Motor Horsepower 1/10 hp
Power Source - TS Only Corded Electric
