Voltage 12VDC
Application Agriculture; Automotive; Construction; Farming; Industrial; Marine; Trucking
HP 1/10
Housing Material Polypropylene
GPM 8
Seal Material EPDM
RPM 2600
Pump Design Nutating Diaphragm
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

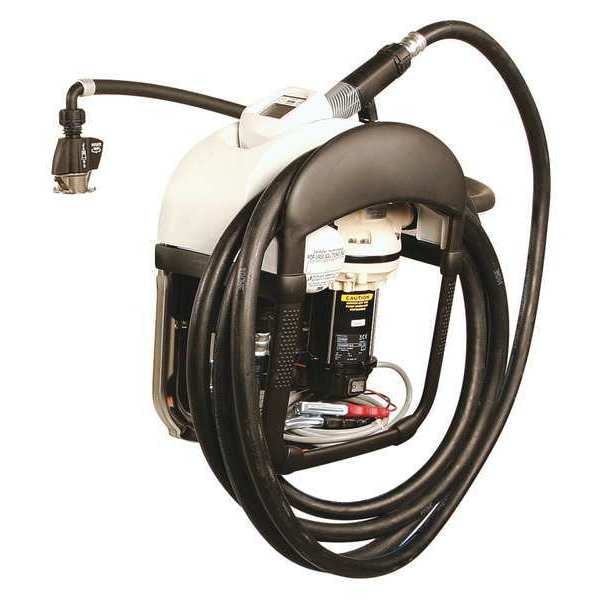

Item Electric Drum Pump
Bearing Type Sealed Ball
Duty Cycle Intermittent
Includes Drip Cup, Hanger Bracket, Nozzle Holder
Bypass Valve Internal
Nozzle Type Automatic
Standards ISO
Metered Yes
Nozzle Material Polypropylene/Stainless Steel
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
For Use With Antifreeze, Clean Water, Diesel Exhaust Fluid
Pressure Range 23 psi
Wetted Materials EPDM, Polypropylene, Stainless Steel
Agency Compliance ISO
Motor Enclosure IP55
Motor Type 2 Pole
Spout Connection Type Integral to Nozzle
Runs Dry Yes
Motor HP 1/10 hp
Includes Spout Yes
Number of Phases 1
Max. Oil Flow 8 gpm
Pump Connection Type Hose Barb
Hose Cover Material Thermal Plastic
Full Load Amps 22.0 A
Nozzle Operation Automatic
Diesel Exhaust Fluid Compatible Yes
Housing Material - Pumps Polypropylene
Includes Nozzle Yes
Plug Type Spring Clamp
Food Grade No
Suction Tube OD 1 in
Variable Speed No
Discharge Tube Outlet OD 1 in
Max. Head Pressure 23 psi
Discharge Tube Outlet ID 3/4 in
Pump Connection OD 1 in
Max. Head - Pumps 48 ft
Suction Tube Material EPDM Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Min. Fluid Temp. 17 Degrees F
Power Source Corded Electric
Includes Bung Adapter No
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Includes Suction Tube Yes Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Suction Tube ID 3/4 in
Spout Material 316 Stainless Steel
Discharge Connection Type Hose Barb
Includes Discharge Hose Yes
Motor RPM 2,600 RPM
Max. Flow Rate 8 gpm
Max. Fluid Temp. 104 Degrees F
Hose Tube Material EPDM
Noise Level 70 dB
For Container Type Drum, Tote
Max. Outlet Pressure 23 psi
Grease NT
Rated Voltage 12 V DC
Explosion Proof No
Gear Lube NT
Mount Type Foot
Maximum Outlet Pressure 23 psi
Pump Technology Diaphragm
Minimum Fluid Temperature 17 Degrees F
Motor Speed 2,600 RPM
Static Protection Not Groundable
Maximum Fluid Temperature 104 Degrees F
Maximum Viscosity 10 cps
Housing Finish Powder Coated
Maximum Oil Flow 8 gpm
Maximum Flow Rate 8 gpm
Nozzle Fluid Compatibility DEF
Wetted Material EPDM/Polypropylene/Stainless Steel
Full Load Current 22 A
Maximum Head 48 ft
Meter Type Included Digital
Motor Enclosure Design Totally Enclosed Non-Ventilated
Adapter Connection Standard Buttress
Motor Horsepower 1/10 hp
Maximum Head Pressure 23 psi
Pump Connection ID 3/4 in
Meter Unit Of Measure Gallons, Liters
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Hazardous Location Class Not Rated
Phase Single
Power Source - TS Only Corded Electric
