Voltage 115VAC
Application Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP 1/10
Housing Material Polypropylene
GPM 8
Seal Material EPDM
Pump Design Nutating Diaphragm
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

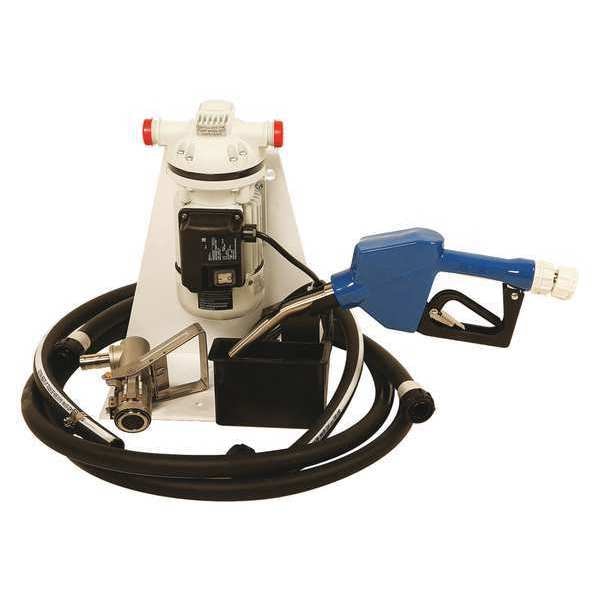

Item Electric Drum Pump
For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Max. Pressure 37 psi
Wetted Materials EPDM, Polypropylene, Stainless Steel
Max. Temp. 104 Degrees F
Adapter Material 316 Stainless Steel
Pressure Range 23 psi
Bypass Valve Internal
Metered No
Max. Head 48 ft.
Max. Liquid Temp. 104 Degrees F
Gasket Material EPDM
pH Range 5.0 to 10
Max. Specific Gravity 1.09
Duty Cycle Intermittent
Agency Compliance ISO
Bearing Type Sealed Ball
Phase Single
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Shaft Material Stainless Steel
Nozzle Type Automatic
Duty Intermittent
Includes Coupler, Drip Cup, Hose, Nozzle Hanger, Side Mount Hanger
Inlet 3/4"
Max. GPM for Water 8
Features Dispenses 8 gpm
Pump Body Material Polypropylene
Hose Material Peroxide Cured EPDM
Motor Type 2 Pole
Amps 3.5
Suction Lift 6 ft.
Hz 60
Adapter Type RSV
Nozzle Material Stainless Steel
Motor Enclosure IP55
Housing Material - Pumps Polypropylene
Includes Discharge Hose Yes
Spout Connection Type Integral to Nozzle
Runs Dry Yes
Discharge Tube Outlet ID 3/4 in
Suction Tube ID 3/4 in
Max. Head Pressure 23 psi
Hose Cover Material Thermal Plastic
Min. Fluid Temp. 17 Degrees F
Spout Material 316 Stainless Steel
Suction Tube Material EPDM
Pump Connection Type Hose Barb
Number of Phases 1
Motor HP 1/10 hp
Max. Flow Rate 8 gpm
Includes Nozzle Yes
Max. Head - Pumps 48 ft
Discharge Tube Outlet OD 1 in
For Container Type Drum, Tote
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Power Source Corded Electric
Diesel Exhaust Fluid Compatible Yes
Food Grade No
Pump Connection OD 1 in
Max. Fluid Temp. 104 Degrees F
Motor RPM 1,750 RPM
Max. Oil Flow 8 gpm
Includes Bung Adapter No Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Frequency (Hz) 60 Hz
Discharge Connection Type Hose Barb
Suction Tube OD 1 in
Variable Speed No Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Includes Suction Tube Yes
Full Load Amps 4.5 A
Hose Tube Material EPDM
Includes Spout Yes
Nozzle Operation Automatic
Noise Level 70 dB
Explosion Proof No
Grease NT
Rated Voltage 115 V AC
Max. Outlet Pressure 23 psi
Gear Lube NT
Maximum Outlet Pressure 23 psi
Meter Type Included No Meter Included
Frequency 60 Hz
Maximum Oil Flow 8 gpm
Minimum Fluid Temperature 17 Degrees F
Full Load Current 4.5 A
Motor Speed 1,750 RPM
Maximum Head 48 ft
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Pump Connection ID 3/4 in
Mount Type Foot
Pump Technology Diaphragm
Adapter Connection Standard Buttress
Plug Type NEMA 5-15-P
Maximum Flow Rate 8 gpm
Maximum Head Pressure 23 psi
Static Protection Not Groundable
Standards ISO
Maximum Viscosity 10 cps
Motor Horsepower 1/10 hp
Motor Enclosure Design Totally Enclosed Fan Cooled
Nozzle Fluid Compatibility DEF
Wetted Material EPDM/Polypropylene/Stainless Steel
Hazardous Location Class Not Rated
Housing Finish Powder Coated
Maximum Fluid Temperature 104 Degrees F
Power Source - TS Only Corded Electric
