Voltage 12VDC
Application Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP 1/10
Housing Material Polypropylene
GPM 8
Seal Material EPDM
Pump Design Nutating Diaphragm
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

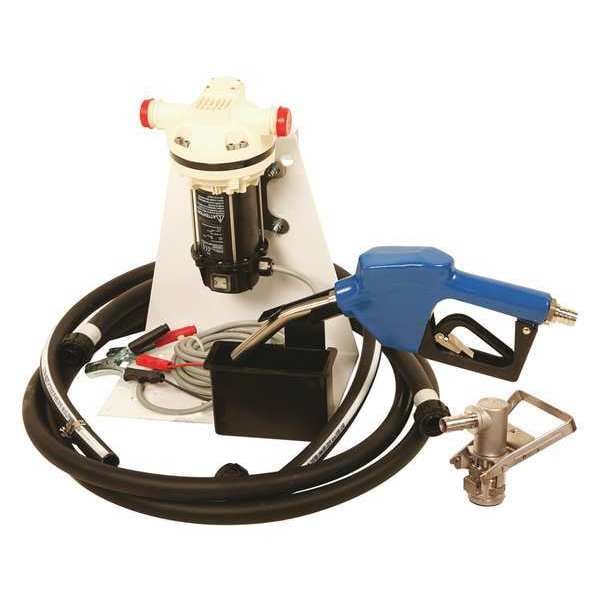

Item Electric Drum Pump
Motor Enclosure IP55
Duty Intermittent
For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Shaft Material Stainless Steel
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
pH Range 5.0 to 10
Gasket Material EPDM
Includes Coupler, Drip Cup, Hose, Nozzle Hanger, Side Mount Hanger
Max. Head 48 ft.
Metered Yes
Nozzle Type Automatic
Suction Lift 6 ft.
Hz 60
Max. GPM for Water 8
Nozzle Material Stainless Steel
Inlet 3/4"
Max. Specific Gravity 1.09
Max. Pressure 30 psi
Hose Material Peroxide Cured EPDM
Adapter Type RSV
Pressure Range 23 psi
Adapter Material 316 Stainless Steel
Motor Type 2 Pole
Max. Temp. 104 Degrees F
Duty Cycle Intermittent
Features Dispenses 8 gpm
Bypass Valve Internal
Amps 3.5
Pump Body Material Polypropylene
Wetted Materials EPDM, Polypropylene, Stainless Steel
Agency Compliance ISO
Max. Liquid Temp. 104 Degrees F
Bearing Type Sealed Ball
Phase Single
Discharge Connection Type Hose Barb
Pump Connection Type Hose Barb
Spout Material 316 Stainless Steel
Includes Discharge Hose Yes
Discharge Tube Outlet ID 3/4 in
Suction Tube Material EPDM
Spout Connection Type Integral to Nozzle
Hose Tube Material EPDM
Includes Bung Adapter No
Housing Material - Pumps Polypropylene
Max. Fluid Temp. 104 Degrees F Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Motor HP 1/10 hp
Includes Suction Tube Yes
Plug Type Spring Clamp
Max. Oil Flow 8 gpm
Max. Head - Pumps 48 ft
Min. Fluid Temp. 17 Degrees F Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Discharge Tube Outlet OD 1 in
Variable Speed No
Noise Level 70 dB
Number of Phases 1
Food Grade No
Diesel Exhaust Fluid Compatible Yes
Motor RPM 2,600 RPM
Nozzle Operation Automatic
Suction Tube ID 3/4 in
Includes Spout Yes
For Container Type Drum, Tote
Runs Dry Yes
Max. Head Pressure 23 psi
Pump Connection OD 1 in
Suction Tube OD 1 in
Hose Cover Material Thermal Plastic
Max. Flow Rate 8 gpm
Full Load Amps 22.0 A
Power Source Corded Electric
Includes Nozzle Yes
Rated Voltage 12 V DC
Max. Outlet Pressure 23 psi
Grease NT
Explosion Proof No
Gear Lube NT
Maximum Head 48 ft
Wetted Material EPDM/Polypropylene/Stainless Steel
Mount Type Foot
Motor Speed 2,600 RPM
Maximum Flow Rate 8 gpm
Housing Finish Powder Coated
Maximum Outlet Pressure 23 psi
Maximum Fluid Temperature 104 Degrees F
Motor Enclosure Design Totally Enclosed Non-Ventilated
Nozzle Fluid Compatibility DEF
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Minimum Fluid Temperature 17 Degrees F
Hazardous Location Class Not Rated
Maximum Viscosity 10 cps
Maximum Head Pressure 23 psi
Motor Horsepower 1/10 hp
Adapter Connection Standard Buttress
Standards ISO
Static Protection Not Groundable
Maximum Oil Flow 8 gpm
Meter Type Included No Meter Included
Pump Technology Diaphragm
Full Load Current 22 A
Pump Connection ID 3/4 in
Power Source - TS Only Corded Electric
