For Use With Caustics, Cleaners, Degreasers, Deionized Water, Diesel Exhaust Fluid, Solvents

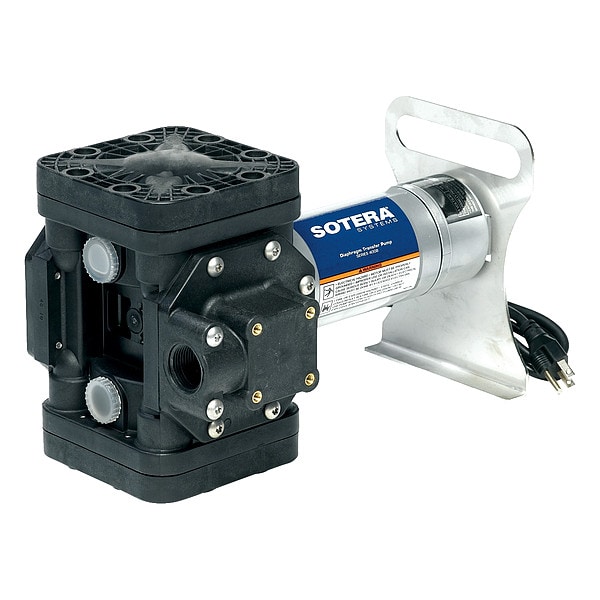

Item Electric Drum Pump
Includes Pump only
Max. Viscosity 3,000 cps
Motor Type Capacitor Start
Power Source Corded Electric
Wetted Materials Fluorocarbon, Polypropylene, Santoprene, Stainless Steel
Voltage 115VAC
Motor Enclosure TENV
Metered No
Max. Flow GPM 12-15 gpm
Motor RPM 3,450 RPM
Max. GPM for Water 15
Max. Head 34 ft.
Piston Material Santoprene
Housing Material Polypropylene
Hz 60
pH Range 3.6 to 11.9
GPM 13
Max. Temp. 130 Degrees F
Type Diaphragm
DEF Compatible Yes
Max. Pressure 15 psi
Seal Material Fluorocarbon
Phase Single
Max. GPM for Oil 12
Application Diesel Exhaust Fluid, Solvents, Cleaners, Degreasers, Deionized Water, Caustics
HP 1/4
Max. Liquid Temp. 130 Degrees F
Pump Connection ID 1 in
Housing Material - Pumps Polypropylene
Max. Head - Pumps 34 ft
Frequency (Hz) 60 Hz
Discharge Tube Outlet OD 1 in
Pump Connection OD 1 3/8 in
Motor HP 1/4 hp
Duty Cycle Intermittent
Diesel Exhaust Fluid Compatible No
Discharge Tube Outlet ID 3/4 in
Discharge Connection Type FNPT
Includes Bung Adapter No
For Container Type Drum
Max. Flow Rate 13 gpm
Includes Discharge Hose No
Full Load Amps 2.5 A
Includes Nozzle No
Includes Suction Tube No
Noise Level 77 dB
Max. Fluid Temp. 130 Degrees F
Variable Speed No
Runs Dry Yes
Food Grade No
For Media Type Fertilizers, Fungicides, Herbicides, Motor Oil
Number of Phases 1 Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 20%,Acetic Acid 80%,Acetone,Ammonia Liquid,Ammonium Hydroxide,Anhydrous Ammonia,Antifreeze Coolant,Automatic Transmission Fluid,Biodiesel,Bleach,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Citric Acid 50%,Concentrated Nitric Acid,Cyclohexane,DEF,Deionized Water,Diesel Fuel,E85,Ethanol,Ethyl Acetate,Ethylene Glycol,Formic Acid,Fresh Water,Gasoline,Glacial Acetic Acid,Glycerin,Heptane,Hexane,Petroleum Oil,Synthetic Oil,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Isopropanol,Kerosene,Lacquer Thinners,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Potassium Hydroxide 50%,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Xylene
Pump Connection Type FNPT
Compatible Chemicals Fertilizers, Fungicides, Herbicides, Motor Oil
Max. Outlet Pressure 15 psi
Rated Voltage 115 V AC
Gear Lube NT
Grease NT
Static Protection No Grounding Line Included
Pump Technology Diaphragm
Meter Type Included No Meter Included
Chemical Compatibility Fertilizers, Fungicides, Herbicides, Motor Oil
Includes Follower Plate No Follower Plate Included
Maximum Outlet Pressure 15 psi
Maximum Fluid Temperature 130 Degrees F
Maximum Head 34 ft
Includes Spout No
Motor Enclosure Design Totally Enclosed Non-Ventilated
Motor Horsepower 1/4 hp
Minimum Fluid Temperature -40 Degrees F
Container Cover Type Included No Cover Included
Wetted Material Fluorocarbon/Polypropylene/Santoprene/Stainless Steel
Motor Speed 3,450 RPM
Maximum Viscosity 3,000 cps
Adapter Connection Standard MNPT
Container Type Included Drum
Frequency 60 Hz
Full Load Current 2.5 A
Maximum Flow Rate 13 gpm
Power Source - TS Only Corded Electric
Power Source - old Corded Electric
