MFR # 10036
Zoro # G3366870
UPC # -
Country of Origin Italy

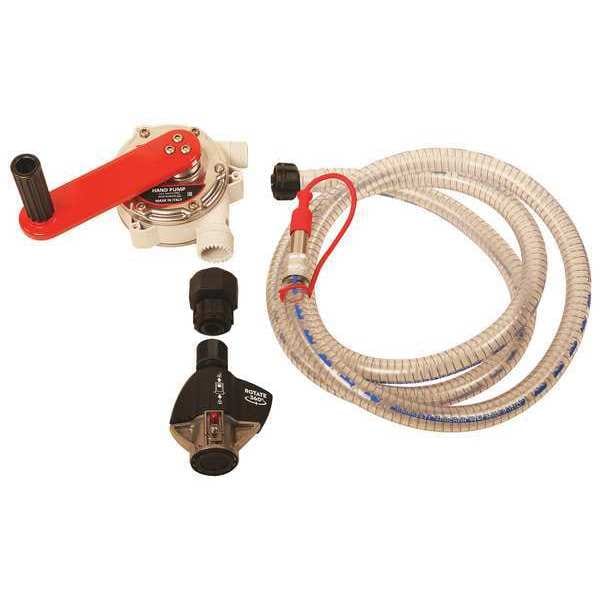

Item Hand Pump
Action Type Rotary
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Max. Flow Rate 13 oz per stroke
Max. Viscosity 10 cps
Diesel Exhaust Fluid Compatible Yes
Wetted Materials EPDM, Polyethylene
Includes Suction Tube No
For Use With 195205B/ N48GP48
Discharge Tube Outlet ID 3/4 in
Hose Tube Material EPDM
Discharge Tube Outlet OD 1 in
Includes RSV Coupler, Spout Cap
Adapter Material 316 Stainless Steel
Seal Material EPDM
Gasket Material EPDM
Agency Compliance ISO 22241-3
Features Check Valve, Dispenses 10 gal Per 100 Revolutions
Metered No
Standards ISO 22241-3
Discharge Tubing Material Polypropylene
Motor RPM Depends on Fluid Viscosity
Max. Flow GPM 10
Self-Priming No
Max. Fluid Temp. 150 Degrees F
Nozzle Operation Manual
Max. Head Pressure 10 psi
Duty Cycle Continuous
Includes Spout Yes
Power Source Manual
Spout Material 316 Stainless Steel
Includes Bung Adapter Yes Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetic Acid (Glacial),Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Housing Material - Pumps Polypropylene, Stainless Steel
Food Grade No
Max. Head - Pumps 3 ft
Runs Dry Yes
Includes Discharge Hose Yes
For Container Type Drum, Tote
Includes Nozzle Yes
Discharge Connection Type BSP Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Min. Operating Temp. 17 Degrees F
Pump Connection ID 1 in
Max. Oil Flow 13 oz per stroke
Gear Lube NT
Max. Outlet Pressure 10 psi
Hose Cover Material EPDM
Container Cover Type Included No Cover Included
Maximum Fluid Temperature 150 Degrees F
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Housing Material Polypropylene/Stainless Steel
Static Protection No Grounding Line Included
Nozzle Material Polypropylene/Stainless Steel
Maximum Oil Flow 13 oz per stroke
Wetted Material Polyethylene/Stainless Steel
Maximum Head Pressure 10 psi
Meter Type Included No Meter Included
Maximum Flow Rate 13 oz per stroke
Mount Type Bung
Maximum Viscosity 10 cps
Adapter Connection Standard Buttress
Minimum Operating Temperature 17 Degrees F
Suction Tube Material Polyethylene
Maximum Outlet Pressure 10 psi
Pump Technology Vane
Maximum Head 3 ft
Power Source - TS Only Manual
Power Source - old Manual
