  11. Spring Return Hose Reel, 3/4 in Hose Diameter, 50 ft Length, 852 psi Max. Pressure, Stainless Steel

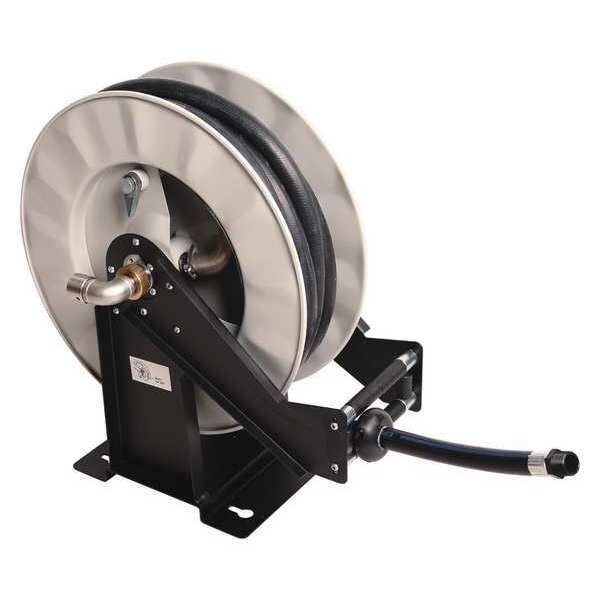

Liquidynamics Spring Return Hose Reel, 3/4 in Hose Diameter, 50 ft Length, 852 psi Max. Pressure, Stainless Steel 88402DEF-50 - main

Spring Return Hose Reel, 3/4 in Hose Diameter, 50 ft Length, 852 psi Max. Pressure, Stainless Steel

  • Mfr # 88402DEF-50

  • Zoro # G2439985

product price: $1,509.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
852 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose Mounted on Reel with Ball Stop
Hose Inside Dia.
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
88402DEF-50
Zoro #
G2439985
UPC #
-
Country of Origin
Italy

Dimensions

Hose Inside Dia.
3/4 in
Overall Height
23 1/2 in
Hose Length
50 ft
Overall Width
11 3/4 in
Overall Length
21 in
Reel Diameter
11 in
Hose Outside Dia.
3/4 in
Overall Depth
21 in
Reel Width
6 in
Mount Hole Diameter
7/16 in
Hose Fitting B Size
3/4 in
Mounting Hole Center to Center Width
5 3/4 in
Swivel Outlet Thread Size
3/4 in - 14
Swivel Inlet Thread Size
3/4 in - 14
Mount Base Height
1 3/32 in
Swivel Outlet Size
3/4 in
Swivel Inlet Size
3/4 in
Overall Dimensions
21 in L x 11 3/4 in W x 23 1/2 in H
Fitting Size
3/4 in x 3/4 in
Mounting Hole Center to Center Height
9 1/2 in
Hose Fitting A Size
3/4 in
Mount Base Width
9 1/2 in

Details

Item
Spring Return Hose Reel
Max. Pressure
852 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose Mounted on Reel with Ball Stop
Hose End Configuration
3/4 in MNPT
Hose Color
Black
Hose Material
EPDM
Mounting
Floor, Wall, Ceiling, Bench and Vehicles
Reel Color
Gray
Features
Double Arm
Application
Diesel Exhaust Fluid, Water
Swivel Material
Stainless Steel
Housing Material
Stainless Steel
Seal Type
Urethane
Duty Rating
Heavy Duty, Industrial
Hose Outlet
3/4" (M)NPT
Bearings
Permanently Lubricated
Latch
Constant Tension
Reel Inlet
3/4 in
Max. Temp.
150 Degrees F
Finish - Hose Reels
Powder Coated
DEF Compatible
Yes
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Acetone, Methyl Ethyl Ketone (MEK), Methyl (Methanol), Calcium Chloride, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Hydrazine, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Lacquer Thinners, Toluene, Xylene, Motor Oil, Methyl Chloride, Sodium Bisulfate, Trichlorethylene (50%), E85, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid, Brake Fluid, Fertilizers, Fungicides, Herbicides, Lithium Grease, Naphtha, Paint, Paint Thinner, Pesticides, Turpentine, Windshield Washer Fluid
For Media Type
Acetic Acid, Citric Acid, Ethanol, Isopropanol, Antifreeze, Ethylene Glycol, Glycerin, Sodium Bicarbonate, Formaldehyde, Ammonium Hydroxide, Bleach, Potassium Hydroxide (50%), Water, Sodium Bisulfite, DEF
Agency Compliance
ISO 22241
Diesel Exhaust Fluid Compatible
Yes
Food Grade
No
Compatible Chemicals
Acetic Acid 20%, Citric Acid 50%, Ethyl (Ethanol), Isopropyl (Isopropanol), Antifreeze (Coolant), Ethylene Glycol, Glycerin, Sodium Bicarbonate (10%), Formaldehyde 40%, Formaldehyde, Ammonium Hydroxide, Sodium Hypochlorite/Bleach (to 20%), Potassium Hydroxide (50%), Fresh Water, Salt Water, Deionized Water, Sodium Bisulfite, DEF
Grease
NT
Latch Type
Spring Loaded
Maximum Operating Temperature
140 Degrees F
Maximum Operating Pressure
210 psi
Fitting Type
NPT x NPT
Hose Fitting B Gender
Male
Hose Fitting A Type
NPT
Pedestal Type
Dual Pedestal
Hose Reel Primary Application
DEF
Swivel Outlet Gender
Male
Base Motion Type
Stationary
Fasteners Included
No
Speed Limited Retraction
No
Number of Mount Holes
4
Swivel Inlet Type
NPT
Swivel Inlet Gender
Female
Standards
CE
Hose Capacity
50 ft (3/4 in I.D.)
Reel Material
Steel
Includes Hose Stop
Yes
Bearing Construction
Permanently Lubricated
Spiral Hose Guard
No
Twin Hose Compatible
No
Hose Fitting A Gender
Male
Number of Guide Arms
Double Arm
Hose Fitting A Material
Polypropylene
Corrosion-Resistant
Yes
Hose Cover Material
EPDM
Hose Fitting B Type
NPT
Minimum Operating Temperature
-30 Degrees F
Hose Fitting B Material
Polypropylene
Swivel Outlet Type
NPT
For Dual Hose
No
Hose Tube Material
EPDM
Reel Finish
Powder Coated
Includes Leader Hose
No
Includes Hose
Yes
Hose Reel Type
Wall Mount Hose Reel
Weight
71 lb

Description

Spring Return Hose Reel, DEF, 210 psi, Hose Capacity 50 ft (3/4 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/4 in, Hose Length 50 ft, Reel Material Steel, Mounting Location Bench, Ceiling, Truck, Wall, Speed Limited Retraction No, Overall Height 23 1/2 in, Overall Length 21 in, Overall Width 11 3/4 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Black, Hose Cover Material EPDM, Hose Fitting A Gender Male
