  9. Emergency Light, LED, 9.6 V DC, 13-3/8 in. Length, 11 in. Width

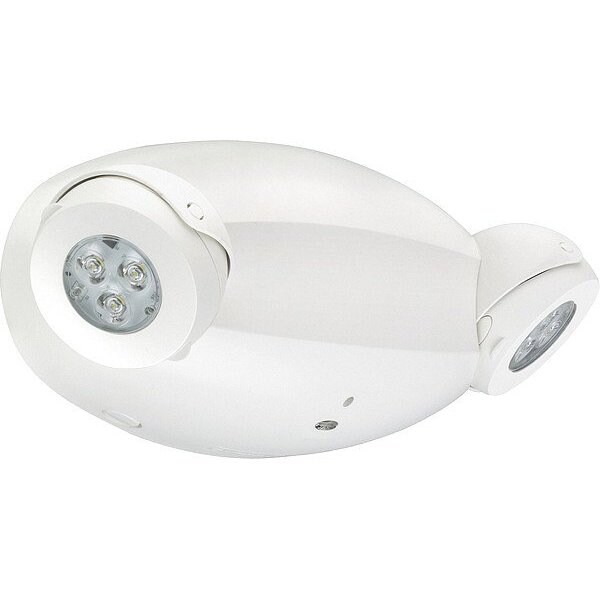

Lithonia Lighting Emergency Light, LED, 9.6 V DC, 13-3/8 in. Length, 11 in. Width ELM6L UVOLT LTP SDRT - main

Emergency Light, LED, 9.6 V DC, 13-3/8 in. Length, 11 in. Width

  • Mfr # ELM6L UVOLT LTP SDRT

  • Zoro # G6282040

product price: $212.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Housing Material
Plastic
Housing Color
White
IP Rating
Not Rated
Mounting
Ceiling/Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ELM6L UVOLT LTP SDRT
Zoro #
G6282040
UPC #
191723916454
Country of Origin
Mexico

Dimensions

Height
5 15/16 in
Width
3 45/64 in
Length
13 3/8 in
Overall Height
6 in
Recommended Mounting Height
7 1/2 ft
Manufacturers Warranty Length
5 yr
Overall Width
3 3/4 in
Overall Length
13 1/2 in

Details

Item
Emergency Light
Lighting Technology
LED
Housing Material
Plastic
Housing Color
White
IP Rating
Not Rated
Mounting
Ceiling/Wall
Standards
California Energy Commission Title 20 Section 1605.3, FCC, NFPA 101, NFPA 70, NOM, OSHA, UL 924
Head Lamps Adjustable
Yes
Watts @ 90 Minutes
11 W
Output Voltage
9.6V DC
Features
Self-Diagnostic and Remote Test
Lamp Watts - Emergency Lighting and Exit Signs
10.6 W
Item - Emergency Lighting and Exit Signs
Emergency Light
Voltage - Emergency Lighting and Exit Signs
120/347
Housing Material - Emergency Lighting and Exit Signs
Plastic
Optional Guard
4YFV2
Number of Lamp Heads
2
Bulb Technology
LED
Warranty
5 yr
Emergency Illumination Time - Emergency Lighting and Exit Signs
2 hr
Operating Temp. Range
10 Degrees to 40 Degrees C
Battery Chemistry
Lithium Iron Phosphate
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Housing Color - Emergency Lighting and Exit Signs
White
Input Voltage
120 to 347V AC
Emergency Illumination Time
120 min
Remote Capacity
11 W
Maximum Operating Temperature
104 Degrees F
Lamp Output
1,100 lm
Battery Voltage
9.6 V DC
Environmental Rating
Damp Location Rated
Self Diagnostics
Yes
Emergency Wattage
11 W
Diagnostic Testing Function
Self Diagnostics/Remote Test
Adjustable Lamp Heads
Yes
Minimum Operating Temperature
50 Degrees F
NEMA Rating
Not Rated
CA Title 20 Compliant
Yes
Series
ELM6L
Recommended Single Fixture Spacing
74 ft
Lamp Wattage
5.3 W
Number of Bulbs
2
Lamp Color Temperature
5000K
Emergency Battery Backup
Yes
Compliance Type
None
Lamp Head Shape
Round
Housing Finish
UV Stabilized
Bulb Included
Yes
Remote Capable
Yes

Description

The ELM6L Series from the Lithonia Lighting Quantum Family is a thermoplastic, dual round head emergency unit allowing for maximized spacing between units down long hallways and open spaces. ELM6L features adjustable optics for ease of installation and maximum path of egress.


•Provides up to 98' spacing between units
•MVOLT (120-277V); UVOLT (120-347V)
