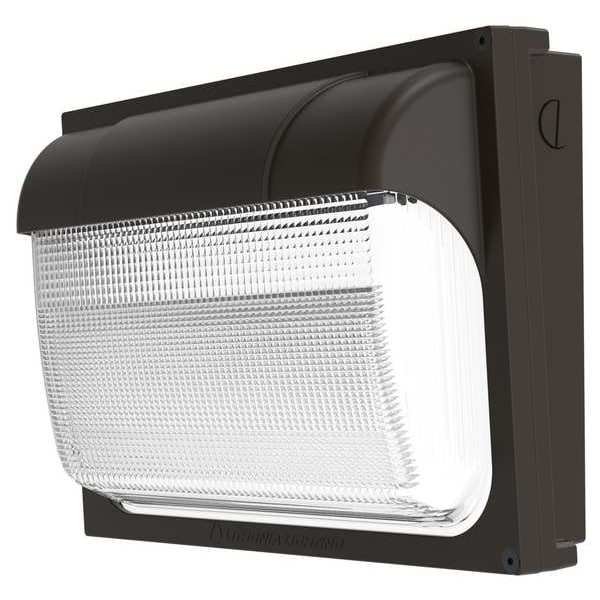

Lithonia Lighting LED Size 2 Wallpack TWX2 LED ALO 40K MVOLT DDBTXD - main

LED Size 2 Wallpack

  • Mfr # TWX2 LED ALO 40K MVOLT DDBTXD

  • Zoro # G800948127

product price:  $154.99
/ea
Free Shipping & Returns

Key Features

Voltage
120 to 277V AC
Width
13 in
Height
9 in
Series
TWX2
Light Technology
LED
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TWX2 LED ALO 40K MVOLT DDBTXD
Zoro #
G800948127
UPC #
194994620488
Country of Origin
Mexico

Dimensions

Width
13 in
Height
9 in
Recommended Mounting Height
15 ft
Depth
4 1/2 in
Knockout Size
1/2 in
Overall Height
9 in
Hub Size
1/2 in NPT
Manufacturers Warranty Length
5 yr
Overall Width
13 in
Mounting Height - Maximum
15 ft

Details

Item
Wall Pack
Voltage
120 to 277V AC
Series
TWX2
Light Technology
LED
Fixture Sensor Type
Not Found
Lumens
6,850 lm
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Fixture Lens Material
Borosilicate Glass
Light Distribution Shape
Type III
Housing Material
Aluminum
Standards
CSA, DLC
LED Replacement For
70 to 400W HID
Min. Operating Temp.
32 Degrees F
Lumens per Watt
127 lm/W
Color Temperature
4000K
IP Rating
IP65
Fixture Housing Color
Bronze
Fixture Housing Material
Die-Cast Aluminum
Special Features
Adjustable Light Output, Low Initial Cost, Provide Superior Illumination
Max. Operating Temp.
104 Degrees F
Operating Temp. Range
32 Degrees to 104 Degrees F
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
Fixture Wattage
100 W
Color Rendering Index
80
Rated Life
100,000 hr
Warranty
5 yr Limited
Lamp Watts
54 W
Lumen Selectable
Not Selectable
Number of Hubs
0
High Pressure Sodium Wattage Equivalency
250 W
Sensor Type
Not Sensor Compatible
Metal Halide Wattage Equivalency
250 W
Number of Knockouts
3
Housing Color
Bronze
Color Selectable
Not Selectable
Light Output
6,850 lm
Operating Temperature - Maximum
104 Degrees F
Light Distribution Type - IESNA
Type III
Mount Type
Surface
Operating Temperature - Minimum
32 Degrees F

Description

The LITHONIA LIGHTING TWX2 LED ALO 40K MVOLT DDBTXD is an LED wall pack for outdoor surface-mount lighting applications. It uses adjustable light output set during installation and provides 6,850 lumens at 4000K with a Type III distribution. This fixture operates on 120 to 277V AC and is designed to replace 70W to 400W HID luminaires, including up to 250W metal halide or high pressure sodium fixtures, while reducing energy use compared with traditional metal halide wall packs.

Key Features of the LITHONIA LIGHTING TWX2 LED ALO 40K MVOLT DDBTXD:

  • Light source: LED wall pack with 54W lamp watts and 127 lumens per watt.
  • Adjustable light output: ALO feature allows the light output to be set during installation.
  • Light color: 4000K color temperature with 80 CRI.
  • Distribution: Type III light distribution for outdoor area coverage.
  • Housing: Bronze die-cast aluminum body with borosilicate glass lens.
  • Electrical: Multi-volt operation from 120 to 277V AC.
  • Ingress rating: IP65.
  • Dimensions: 13 in W x 9 in H x 4-1/2 in D.
  • Mounting: Surface mount with 1/2 in NPT hub size and three 1/2 in knockouts.
  • Service life: Rated life of 100,000 hours.
  • Mounting height: Recommended maximum mounting height of 15 ft.
  • Standards: CSA and DLC listed.
