Shop LITHONIA LIGHTING

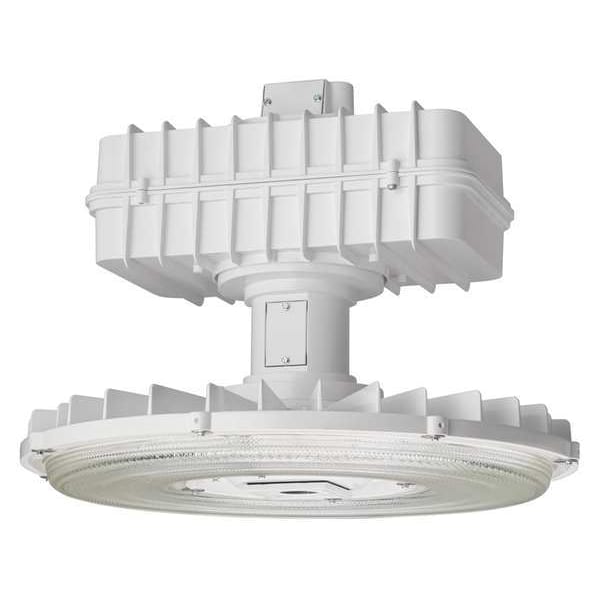

LEDHighBay, White, JHBL, 223/8inL, 223/8inW

  • Mfr # JHBL24000LMGLNDHVOLTGZ1050K70CRIDWHXD

  • Zoro # G2819699

product price:
$
1,087.99
/ea
Free Shipping & Returns

Key Features

Suggested Fixture Mounting Height
Up to 60 ft
Lighting Technology
LED
Light Distribution
Narrow
Color Temperature
5000K
Lamp Type - Fixtures
Integrated LED
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JHBL24000LMGLNDHVOLTGZ1050K70CRIDWHXD
Zoro #
G2819699
UPC #
193048072433
Country of Origin
Mexico

Dimensions

Suggested Fixture Mounting Height
Up to 60 ft
Fixture Length
22 3/8 in
Fixture Width
22 3/8 in
Fixture Height
16 5/8 in
Space to Mtg. Height Ratio
0.9
Height
16-5/8
Length
22 3/8 in
Width
22-3/8
Overall Height
16 5/8 in
Overall Length
22 3/8 in
Overall Width
22 3/8 in
Nominal Size - Fixtures
2 ft x 2 ft
Suggested Fixture Mounting Height Range
40 to 60 ft.
Suggested Mounting Height - Maximum
30 ft
Suggested Mounting Height - Minimum
12 ft
Nominal Length
18 in
Wire Rope Length
22 3/8 in

Details

Lighting Technology
LED
Lumens
25,769 lm
Light Distribution
Narrow
Fixture Voltage
347 to 480
Color Temperature
5000K
Lamp Type - Fixtures
Integrated LED
Standards
CSA Certified to US and Canadian Safety Standards
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Max. Fixture Wattage
185 W
LED Replacement For
(6) Lamp LFL
Lumens Per Watt
139.0
Fixture Series
JHBL
Watts
197
Fixture Rated Life
100,000 hr
IP Rating
IP65
Fixture Housing Color
White
Fixture Housing Material
Aluminum
Includes
3/4 NPS Threaded Hub
Emergency Back Up Battery
No
Fixture Warranty
5 yr
Number of Light Bars
4
Item
LED High Bay
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
Occupancy Sensor
No
Bulb Technology
LED
Lighting Certification
DesignLights Consortium (DLC)
Dimmable
Yes
Lamp Watts - Fixtures
185 W
Fixture Mounting Type
Hook, Pendant
CRI
70
Fixture Temp. Range
-40 Degrees to 131 Degrees F
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Fixture Lens Material
Glass
Color Temp.
5000K
Color Rendering Index
70.0
Warranty
5 yr.
Rated Life
100,000 hr
Voltage
347 to 480V AC
Lumens per Watt
139 lm/W
Min. Ambient Temp.
-40 Degrees F
Ingress Protection Rating
65
Bulbs Included
Integrated
Emergency Battery Backup
No
Housing Color
White
Ambient Temp. Range
-40 Degrees to 149 Degrees F
Lens Material
Glass
For Bulb Base Type
Integrated LED
Series
JHBL
For Bulb Shape
Integrated LED
Bay Light Type
High Bay
For Bulb Type
Integrated LED
CA Title 24 Compliant
No
Lamp Type
Integrated LED
Number of Bulbs
0
Max. Ambient Temp.
149 Degrees F
Housing Material
Die-Cast Aluminum
Reflector Type
Enclosed
Maximum Fixture Wattage
185 W
Lens Type
Glass
Mounting Style
Ceiling, Suspended
Color Selectable
Not Selectable
Ambient Temperature - Minimum
-40 Degrees C
Light Output
25,769 lm
Lumen Selectable
Not Selectable
Product Type
LED High Bay
Ambient Temperature - Maximum
65 Degrees C

Description

LED High Bay, LED Replacement For 6 Lamp LFL, Fixture Voltage 347 to 480, 185 Watts, 25,769 Lumens, Color Temp. 5000K, Fixture Rated Life 100,000 hr., Standards CSA Cerified to US and Canadian Safety Standards, Light Distribution Narrow, Fixture Length 22-3/8 In., Fixture Width 22-3/8 In., Fixture Height 16-5/8 In., Dimmable Yes, Fixture Series JHBL, Occupancy Sensor No, Fixture Lens Material Glass, Number of Light Bars 4, Space to Mtg. Height Ratio 0.9, CRI 70
