Shop LITHONIA LIGHTING

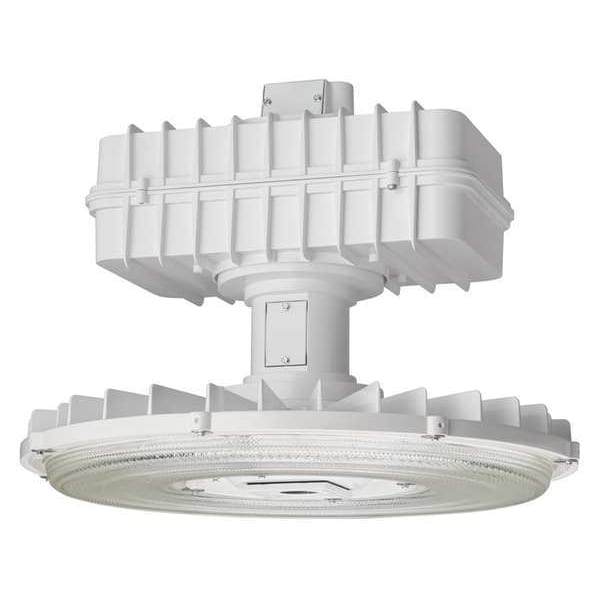

LEDHighBay, White, JHBL, 223/8inL, 223/8inW

  • Mfr # JHBL24000LMGLWDHVOLTGZ1050K70CRIDWHXD

  • Zoro # G2819680

product price:
$
1,054.99
/ea
Free Shipping & Returns

Key Features

Suggested Fixture Mounting Height
Up to 60 ft
Lighting Technology
LED
Light Distribution
Wide
Color Temperature
5000K
Lamp Type - Fixtures
Integrated LED
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JHBL24000LMGLWDHVOLTGZ1050K70CRIDWHXD
Zoro #
G2819680
UPC #
193048051568
Country of Origin
Mexico

Dimensions

Suggested Fixture Mounting Height
Up to 60 ft
Space to Mtg. Height Ratio
1.2
Fixture Height
16 5/8 in
Fixture Width
22 3/8 in
Fixture Length
22 3/8 in
Length
22-3/8
Width
22-3/8
Height
16-5/8
Nominal Size - Fixtures
2 ft x 2 ft
Overall Length
22 3/8 in
Overall Width
22 3/8 in
Overall Height
16 5/8 in
Suggested Fixture Mounting Height Range
40 to 60 ft.
Suggested Mounting Height - Minimum
12 ft
Suggested Mounting Height - Maximum
30 ft
Nominal Length
18 in
Wire Rope Length
22 3/8 in

Details

Lighting Technology
LED
Lumens
26,515 lm
Light Distribution
Wide
Fixture Voltage
347 to 480
Color Temperature
5000K
Lamp Type - Fixtures
Integrated LED
Standards
CSA Certified to US and Canadian Safety Standards
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Max. Fixture Wattage
185 W
LED Replacement For
(6) Lamp LFL
Lighting Certification
DesignLights Consortium (DLC)
Occupancy Sensor
No
Watts
197
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Fixture Temp. Range
-40 Degrees to 131 Degrees F
Dimmable
Yes
Fixture Warranty
5 yr
Fixture Rated Life
100,000 hr
Bulb Technology
LED
Fixture Housing Material
Aluminum
Fixture Mounting Type
Hook, Pendant
Color Temp.
5000K
Fixture Lens Material
Glass
IP Rating
IP65
Number of Light Bars
4
Includes
3/4 NPS Threaded Hub
Item
LED High Bay
Fixture Housing Color
White
CRI
70
Emergency Back Up Battery
No
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
Lumens Per Watt
143.0
Lamp Watts - Fixtures
185 W
Color Rendering Index
70.0
Fixture Series
JHBL
Warranty
5 yr.
Rated Life
100,000 hr
Voltage
347 to 480V AC
Lumens per Watt
143 lm/W
Ambient Temp. Range
-40 Degrees to 149 Degrees F
Emergency Battery Backup
No
Lens Material
Glass
Bay Light Type
High Bay
Ingress Protection Rating
65
Number of Bulbs
0
Housing Material
Die-Cast Aluminum
CA Title 24 Compliant
No
Bulbs Included
Integrated
For Bulb Shape
Integrated LED
For Bulb Type
Integrated LED
Min. Ambient Temp.
-40 Degrees F
Max. Ambient Temp.
149 Degrees F
Series
JHBL
Reflector Type
Enclosed
Lamp Type
Integrated LED
Housing Color
White
For Bulb Base Type
Integrated LED
Lens Type
Glass
Light Output
26,515 lm
Product Type
LED High Bay
Lumen Selectable
Not Selectable
Ambient Temperature - Minimum
-40 Degrees C
Maximum Fixture Wattage
185 W
Ambient Temperature - Maximum
65 Degrees C
Color Selectable
Not Selectable
Mounting Style
Ceiling, Suspended

Description

LED High Bay, LED Replacement For 6 Lamp LFL, Fixture Voltage 347 to 480, 185 Watts, 26,515 Lumens, Color Temp. 5000K, Fixture Rated Life 100,000 hr., Standards CSA Cerified to US and Canadian Safety Standards, Light Distribution Wide, Fixture Length 22-3/8 In., Fixture Width 22-3/8 In., Fixture Height 16-5/8 In., Dimmable Yes, Fixture Series JHBL, Occupancy Sensor No, Fixture Lens Material Glass, Number of Light Bars 4, Space to Mtg. Height Ratio 1.2, CRI 70
