  9. LED High Bay Fixture, 100W, 12000 lm, 5000K
Shop All LED Bay Lights
Southwire

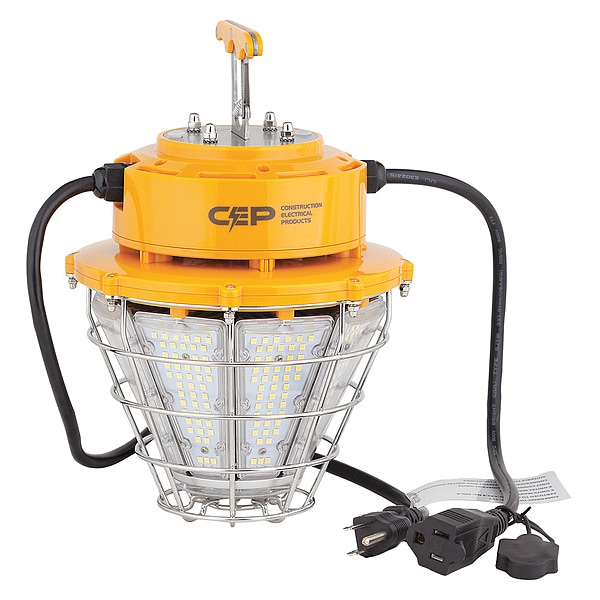

LED High Bay Fixture, 100W, 12000 lm, 5000K

product price: $237.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Lighting Technology LED
  • Light Distribution Flood
  • Fixture Voltage 120 to 277
  • Color Temperature 5000K
  • Standards cETLus Listed for Damp Locations, RoHS Compliant
See all product information

Product Information

Dimensions

Space to Mtg. Height Ratio 2 to 1
Fixture Width 8 in
Fixture Height 11 1/2 in
Fixture Length 8 in
Overall Height 11.5 in
Nominal Size - Fixtures 1 ft x 1 ft
Overall Width 8 in
Cord Length 6 ft
Overall Length 8 in
Cord Length - Job Site Lighting 6 ft
Power Cord Length 6 ft
Overall Depth 8 in

Details

Lighting Technology LED
Lumens 12,000 lm
Light Distribution Flood
Fixture Voltage 120 to 277
Color Temperature 5000K
Standards cETLus Listed for Damp Locations, RoHS Compliant
Fixture Type - High and Low Bay Fixtures Linear High Bay
LED Replacement For 400W MH
Green Environmental Attribute RoHS 2011/65/EU Compliant
Bulb Technology LED
Dimmable No
Occupancy Sensor No
Fixture Rated Life 50,000 hr
Color Temp. 5000K
Fixutre Mounting Type Standard
Lumens Per Watt 120.0
Number of Light Bars 1
Fixture Lens Material Tempered Glass
Emergency Back Up Battery No
Fixture Series CL
Fixture Temp. Range -20 Degrees to 50 Degrees C
Fixture Mounting Type Standard
Fixture Housing Color Orange
Color Rendering Index 85
Fixture Warranty 1 yr
Lighting Certification Unrated
Fixture Lens Type Clear
Item LED High Bay Fixture
Includes Wire Cage
Rated Life 0 hr, 50 hr
Voltage 120 to 277V
Lumens per Watt 100 lm/W
Housing Color Orange
For Bulb Type LED
Bay Light Type High Bay
Lamp Type Integrated LED
Series CL
Power Source Corded
Number of Lamp Heads 1
Type - Job Site Lighting Hanging
Lamp Watts 100
Plug Type Straight Blade
Cord Designation SJTW
Maximum Brightness 12,000 lm
Job Light Type Hanging Light
Maximum Operating Temperature 140 Degrees F
Current 0.83 A @ 120V
Switch Type No Switch
Number of Bulb Fixtures 1
Cord Wire Gauge 16 AWG
Lamp Guard Metal
Mount Type Hook
Lens Material Tempered Glass
Beam Angle 360 Degrees
For Location Indoor, Outdoor
Frame Color Orange
Includes Mounting Hardware Yes
Includes Bulb Yes
Bulb Base Type Screw In
Features 15A Female Receptacle to Daisy Chain Lights Downstream, Polycarbonate Impact Resistant Lenses, Spring Loaded Quick Mount Hook Allows Unit to be Mounted in Seconds, Tapered LED Panels for Greater Horizontal Lux, Wire Cage for Added Protection
Operating Voltage 120 to 277V AC
NEMA Plug Configuration 5-15P
Lamp Life 50,000 hr
Hazardous Location Specification Not Rated
Number of Cord Wires 3
Minimum Operating Temperature -20 Degrees F
Wattage 100 W

Description

LED High Bay Fixture, Bulb Base Type Screw In, Bulb Spacing Not Applicable, Color Temperature 5000K, Head Diameter Not Applicable, Lighting Technology LED, Maximum Brightness 12,000 lm, Mount Type Hook, Number of Bulb Fixtures 1, Operating Voltage 120 to 277V AC, Overall Depth 8 in, Overall Height 11.5 in, Power Cord Length 6 ft, String Overall Length Not Applicable, Switch Type No Switch, Wattage 100 W, Color Rendering Index 85, Hazardous Location Specification Not Rated
