Shop LITHONIA LIGHTING

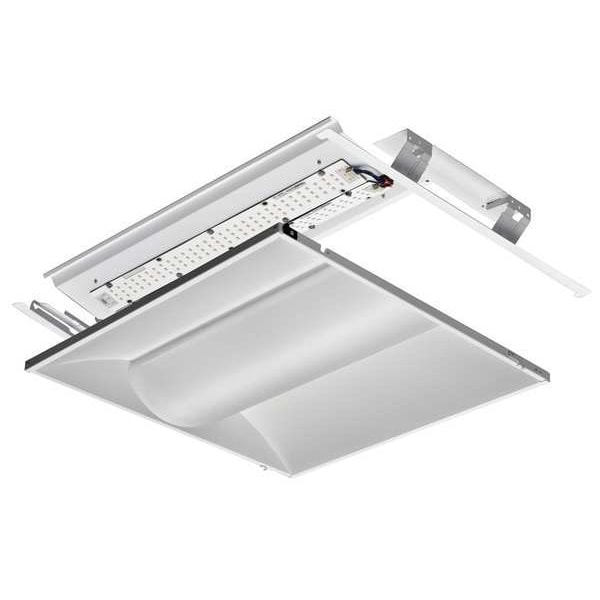

LEDTrffrRetrofitKit, 2ftL, 2ftW, 120/277VAC

  • Mfr # 2VTL2RT 33L ADP EZ1 LP835

  • Zoro # G5107672

product price:
$
179.99
/ea
Free Shipping & Returns

Key Features

Fixture Item
Troffer Fixture Retrofit Kit
Nominal Size - Fixtures
2 ft x 2 ft
Lighting Technology
LED
Voltage
120/277V AC
Watts
35
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2VTL2RT 33L ADP EZ1 LP835
Zoro #
G5107672
UPC #
753573677000
Country of Origin
Mexico

Dimensions

Nominal Size - Fixtures
2 ft x 2 ft
Fixture Length
22 5/8 in
Fixture Height
3 3/4 in
Fixture Width
22 1/2 in
Overall Length
24 in
Overall Height
4 in
Nominal Size
2 ft x 2 ft
Overall Width
22 1/2 in
Nominal Width
2 ft
Nominal Length
2 ft
Wire Rope Length
24 in
Length
24 in

Details

Fixture Item
Troffer Fixture Retrofit Kit
Item
LED Troffer Retrofit Kit
Lighting Technology
LED
Voltage
120/277V AC
Watts
35
Lighting Certification
DesignLights Consortium (DLC)
Dimmable
Yes
Lumens
3,711 lm
Color Temperature
3500K
Color Rendering Index
82
Max. Fixture Wattage
29.3 W
Lumens Per Watt
96.0
Color Temp.
3500K
LED Replacement For
T8 U-Bend
Fixture Voltage
120 to 277
Fixture Temp. Range
0 Degrees to 104 Degrees F
Standards
UL Listed
CRI
82
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
Bulb Technology
LED
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Fixture Warranty
5 yr
Fixture Rated Life
50,000 hr
Lens Type
Diffuser Lens
Rated Life
50,000 hr
Warranty
5 Year
Lumens per Watt
126 lm/W
Light Technology
LED
Max. Ambient Temp.
104 Degrees F
Sensor Type
No Sensor
Emergency Battery Backup
No
Min. Ambient Temp.
0 Degrees F
Dimming Range
100% to 1%
For Bulb Type
Integrated LED
Series
2VTL2RT
Ambient Temperature - Maximum
104 Degrees F
Ambient Temperature - Minimum
0 Degrees F
Light Output
3,711 lm
Dimming Method
0-10V

Description

LED Troffer Retrofit Kit, Lumens 3,711 lm, Lumens Range 2,000 to 3,999 lm, Light Technology LED, 120/277V AC, Lighting Certification DesignLights Consortium (DLC), Dimmable Yes, Emergency Battery Backup No, For Bulb Type Integrated LED, Overall Height 4 in, Overall Length 24 in, Overall Width 22 1/2 in, Color Rendering Index 82, Color Temperature 3500K, Dimming Method 0-10V, Dimming Range 100 Percent to 1 Percent, LED Replacement For T8 U-Bend, Lens Type Diffuser Lens, Lumens per Watt 126 lm/W
