Shop LITHONIA LIGHTING

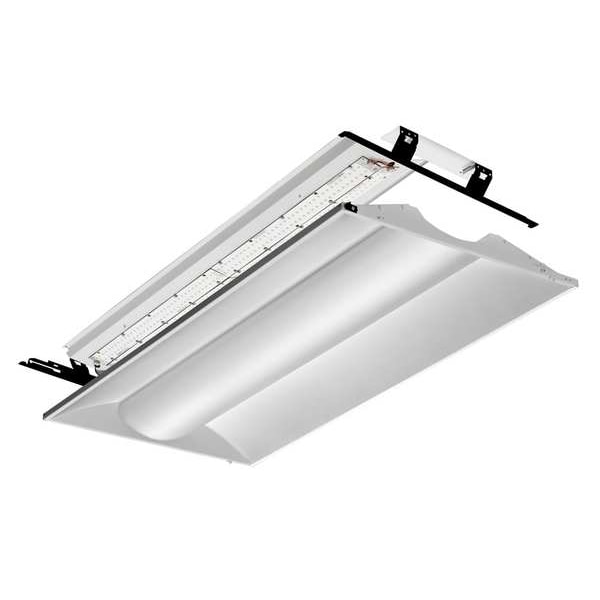

LEDTrffrRetrofitKit, 4ftL, 2ftW, 120/277VAC

  • Mfr # 2VTL4RT 48L ADP EZ1 LP840

  • Zoro # G5107663


product price:  $270.99
/ea
Free Shipping & Returns

Key Features

Fixture Item
Troffer Fixture Retrofit Kit
Nominal Size - Fixtures
2 ft x 4 ft
Lighting Technology
LED
Voltage
120/277V AC
Watts
47
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2VTL4RT 48L ADP EZ1 LP840
Zoro #
G5107663
UPC #
753573776819
Country of Origin
Mexico

Dimensions

Nominal Size - Fixtures
2 ft x 4 ft
Fixture Length
48 in
Fixture Height
3 3/4 in
Fixture Width
22 1/2 in
Overall Width
22 1/2 in
Overall Height
4 in
Nominal Size
2 ft x 4 ft
Overall Length
48 in
Nominal Width
2 ft
Nominal Length
4 ft

Details

Fixture Item
Troffer Fixture Retrofit Kit
Item
LED Troffer Retrofit Kit
Lighting Technology
LED
Voltage
120/277V AC
Watts
47
Lighting Certification
DesignLights Consortium (DLC)
Dimmable
Yes
Lumens
5,209 lm
Color Temperature
4000K
Color Rendering Index
82
Max. Fixture Wattage
39.1 W
Color Temp.
4000K
Lumens Per Watt
107.0
CRI
82
Standards
UL Listed
LED Replacement For
(3) Lamp T8
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
Fixture Voltage
120 to 277
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Fixture Temp. Range
0 Degrees to 104 Degrees F
Fixture Warranty
5 yr
Bulb Technology
LED
Fixture Rated Life
50,000 hr
Lens Type
Diffuser Lens
Warranty
5 Year
Rated Life
50,000 yr.
Lumens per Watt
133 lm/W
Min. Ambient Temp.
0 Degrees F
Dimming Range
100% to 1%
Sensor Type
No Sensor
Light Technology
LED
Emergency Battery Backup
No
Series
2VTL4RT
For Bulb Type
Integrated LED
Max. Ambient Temp.
104 Degrees F
Ambient Temperature - Minimum
0 Degrees F
Dimming Method
0-10V
Light Output
5,209 lm
Ambient Temperature - Maximum
104 Degrees F

Description

LED Troffer Retrofit Kit, Lumens 5,209 lm, Lumens Range 4,000 to 5,999 lm, Light Technology LED, 120/277V AC, Lighting Certification DesignLights Consortium (DLC), Dimmable Yes, Emergency Battery Backup No, For Bulb Type Integrated LED, Overall Height 4 in, Overall Length 48 in, Overall Width 22 1/2 in, Color Rendering Index 82, Color Temperature 4000K, Dimming Method 0-10V, Dimming Range 100 Percent to 1 Percent, LED Replacement For (3) Lamp T8, Lens Type Diffuser Lens, Lumens per Watt 133 lm/W
