Shop LITTLE GIANT PUMP

115 Volt Condensate Pump

  • Mfr # 553201

  • Zoro # G2346881

product price:
$
169.92
/ea
Free Shipping & Returns

Key Features

Condensate Pumps - Type
Condensate
Voltage
115
Reservoir Size - Pumps
Large
HP - Pumps
1/18 hp
Voltage - Pumps
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
553201
Zoro #
G2346881
UPC #
010121539150
Country of Origin
Mexico

Dimensions

Reservoir Size - Pumps
Large
Discharge Size - Pumps
3/8 in Barb
Height
10 1/2 in
Length
12 in
Width
6 in
Cord Length
6 ft
Overall Width
6 in
Overall Height
10.4 in
Overall Length
12.11 in
Compatible Intake Pipe Size
1 1/8 in
Compatible Discharge Pipe Size
3/8 in
Manufacturer Warranty Length
1 yr
For Inlet Pipe Diameter
1 1/8 in
For Discharge Pipe Diameter
3/8 in
Wire Rope Length
12.11 in

Details

Item
Condensate Removal Pump
Condensate Pumps - Type
Condensate
Voltage
115
HP - Pumps
1/18 hp
Voltage - Pumps
115V AC
Reservoir Capacity - Pumps
1 gal
Max. Temp - Pumps
110 Degrees F
Max. Pressure
10.4 psi
Shut-Off
24 ft.
GPH of Water @ 1 Ft. of Head
270
Includes
5 in Lead Wires
GPH of Water @ 12 Ft. of Head
187
Discharge
3/8" Barb
HP
1/18
Max. Temp.
110 Degrees F
Watts
148 W
Shaft Material
Stainless Steel
Reservoir Capacity
1 gal.
Float Material
Polypropylene
Max. Head - Pumps
24 ft
GPH of Water @ 15 Ft. of Head
175
Amps
2.5 A
GPH of Water @ 5 Ft. of Head
250
Pump Type
Standard
GPH of Water @ 9 Ft. of Head
210
Tank Material
Plastic
Application
Condensate Removal
Standards
cCSAus
Intake Connection Style
Open
Maximum Flow Rate @ 5 Feet of Head
4.17 gpm
Body Gasket Material
Stainless Steel
Tank Capacity
1 gal
Compatible Media Type
Water
Horsepower
1/18 hp
Discharge Connection Style
Barbed
Number of Intakes
2
Shut Off Level
2.18 in
Nameplate Voltage
115V AC
Turn On Level
3.8 in
Maximum Feet of Head
24 ft
Phase
Single
Electrical Connection Type
Plug-In
Plenum Rated
No
Maximum Ambient Temperature
120 Degrees F
Maximum Flow Rate @ 10 Feet of Head
3.33 gpm
Maximum Media Temperature
120 Degrees F
Maximum Operating Pressure
10.4 psi
Series Family
VCL
Maximum Flow Rate @ 15 Feet of Head
2.6 gpm
Frequency
60 Hz
Series
VCL-24ULS
Maximum Flow Rate @ 1 Feet of Head
4.5 gpm
Maximum Flow Rate @ 20 Feet of Head
1.66 gpm
For Use With Potable Systems
No
Pump Housing Material
ABS Plastic
Pump Activation Type
Float Switch
Operating Pressure - Maximum
10.4 psi
Installation
Floor Standing
Power Source
Corded Electric
Media Temperature - Minimum
33 Degrees F
Full Load Current
2.5 A
Media Temperature - Maximum
120 Degrees F
Pump Casing Material
Plastic
Number of Inlets
2
Pump Technology
Centrifugal
Feet of Head - Maximum
24 ft
Tank Opacity
Solid
Inlet Standard
Open
Includes Tubing
No Tubing Included
Priming
Self-Priming
For Media Type
Clear Water
For HVAC System Duct
Ducted
Includes Safety Switch
Safety Switch Included
Ambient Temperature - Maximum
120 Degrees F
Product Type
Condensate Removal Pump
Discharge Standard
Barbed
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

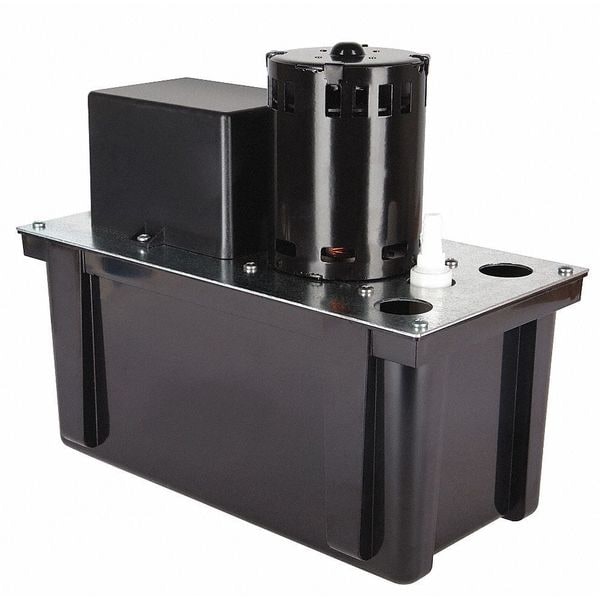

The LITTLE GIANT PUMP 553201 is a condensate removal pump for automatic collection and discharge of condensate when gravity drainage is not practical. It is used with air conditioning, refrigeration, dehumidification equipment, and condensing furnace or boiler equipment. This floor-standing, corded electric pump uses a float switch for automatic operation and includes a 1-gallon tank for condensate collection.

Key Features of the LITTLE GIANT PUMP 553201 Condensate Removal Pump:

  • 1/18 hp motor: Fan-cooled concentric motor powered by 115V AC, single phase.
  • Automatic operation: Float switch activation turns the pump on at 3.8 in and off at 2.18 in.
  • 1-gallon reservoir: Large collection tank supports higher condensate volume applications.
  • 24 ft maximum head: Pumps condensate up to 24 ft vertically.
  • Flow capacity: Up to 270 GPH at 1 ft of head; 187 GPH at 12 ft; 175 GPH at 15 ft.
  • Connection sizes: Open intake for 1-1/8 in inlet pipe and 3/8 in barbed discharge connection.
  • Construction materials: ABS plastic housing, tank, volute, and switch cover with galvanized steel tank cover and stainless steel shaft.
  • Thermal protection: Motor is thermally protected to limit overheating and motor damage.
  • Electrical details: 2.5 A, 60 Hz, 148 W with a 6 ft plug-in power cord.
  • Included switch: Safety switch is included.
