Shop LITTLE GIANT PUMP

1/150 HP, 120 Volt Condensate Pump

  • Mfr # 550521

  • Zoro # G2235633

product price:
$
149.28
/ea
Free Shipping & Returns

Key Features

Condensate Pumps - Type
In-Pan
Reservoir Size - Pumps
No Reservoir
Voltage
120
HP - Pumps
1/150 hp
Voltage - Pumps
120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
550521
Zoro #
G2235633
UPC #
010121119963
Country of Origin
Mexico

Dimensions

Reservoir Size - Pumps
No Reservoir
Discharge Size - Pumps
1/4 in MNPT
Cord Length
9 ft
Length
7.44 in
Height
4 7/16 in
Width
3 3/4 in
Overall Length
7.44 in
Overall Width
3.75 in
Overall Height
4.31 in
Compatible Discharge Pipe Size
1/2 in
Manufacturer Warranty Length
1 yr
For Discharge Pipe Diameter
1/2 in
Wire Rope Length
7.44 in

Details

Condensate Pumps - Type
In-Pan
Item
Condensate Removal Pump
Voltage
120
HP - Pumps
1/150 hp
Voltage - Pumps
120V AC
Reservoir Capacity - Pumps
No Reservoir
Max. Temp - Pumps
120 Degrees F
HP
1/150
Max. Head - Pumps
10 ft
Shaft Material
Stainless Steel
Shut-Off
10 ft.
Max. Temp.
120 Degrees F
Standards
cCSAus
Pump Type
In-Pan
Watts
70 W
Float Material
Plastic
Discharge
1/4" MNPT
GPH of Water @ 1 Ft. of Head
205
GPH of Water @ 9 Ft. of Head
25
Reservoir Capacity
No Reservoir
Amps
1.1 A
Includes
90 Degrees 1/4 in MNPT Adapter, Removable Inlet Filter Screen
Max. Pressure
4.3 psi
GPH of Water @ 5 Ft. of Head
145
Application
Condensate Removal
Pump Activation Type
Float Switch
Compatible Media Type
Water
Pump Housing Material
Aluminum
Maximum Media Temperature
120 Degrees F
Maximum Operating Pressure
4.3 psi
Nameplate Voltage
115V AC
Plenum Rated
No
Maximum Feet of Head
10 ft
Intake Connection Style
Screened Submersible
Series
1-ABS
Phase
Single
Series Family
ABS
Body Gasket Material
Stainless Steel
Discharge Connection Style
MNPT
Horsepower
1/150 hp
Maximum Ambient Temperature
120 Degrees F
Maximum Flow Rate @ 10 Feet of Head
0 gpm
Electrical Connection Type
Plug-In
Frequency
60 Hz
Turn On Level
1.75 in
For Use With Potable Systems
No
Shut Off Level
1.25 in
Maximum Flow Rate @ 5 Feet of Head
2.42 gpm
Maximum Flow Rate @ 1 Feet of Head
3.42 gpm
Power Source
Corded Electric
Ambient Temperature - Maximum
120 Degrees F
Operating Pressure - Maximum
4.3 psi
Pump Casing Material
Aluminum
Full Load Current
1.1 A
Product Type
In-Pan Condensate Removal Pump
For Media Type
Clear Water
Number of Inlets
1
Media Temperature - Maximum
120 Degrees F
Inlet Standard
Screened Submersible
Includes Safety Switch
No Safety Switch Included
Includes Tubing
No Tubing Included
Priming
Self-Priming
Media Temperature - Minimum
33 Degrees F
Installation
Submersible
Feet of Head - Maximum
10 ft
Discharge Standard
MNPT
Pump Technology
Centrifugal
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

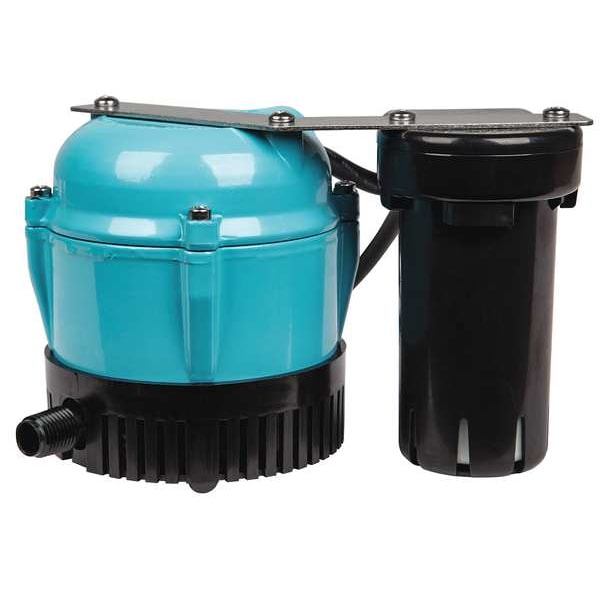

The LITTLE GIANT PUMP 550521 is an in-pan condensate removal pump for removing water from an air conditioner drain pan or reservoir. It uses a sealed, submersible centrifugal pump with a screened intake and float switch activation for automatic start and stop. This 1-ABS Series unit is designed for shallow pan applications and has no reservoir, with turn-on at 1.75 in and shut-off at 1.25 in.

Key Features of the LITTLE GIANT PUMP 550521 Condensate Removal Pump:

  • Application: Built for condensate removal with clear water media.
  • Pump type: In-pan, submersible design for placement in shallow drip trays and pans.
  • Motor: 1/150 hp oil-filled motor, 70 W, 115/120V AC, single phase, 60 Hz.
  • Automatic operation: Mechanical float switch starts and stops the pump automatically.
  • Flow performance: 205 GPH at 1 ft of head, 145 GPH at 5 ft, and 25 GPH at 9 ft; maximum head 10 ft.
  • Construction: Epoxy-coated cast aluminum housing and motor cover, nylon volute, and stainless steel shaft with Nitrile shaft seal.
  • Discharge connection: 1/4 in MNPT discharge; includes a 90 degree 1/4 in MNPT adapter for use with 1/2 in discharge pipe.
  • Intake: Screened submersible inlet with removable inlet filter screen.
  • Electrical connection: 9 ft cord with plug-in connection.
  • Temperature limits: Maximum ambient and media temperature of 120 degrees F; minimum media temperature of 33 degrees F.
  • Protection: Thermal overload protection.
  • Size: 7.44 in L x 3.75 in W x 4.31 in H.
  • Standard: cCSAus.
