MFR # 580603
Zoro # G3106372
UPC # 010121809116
Country of Origin Mexico

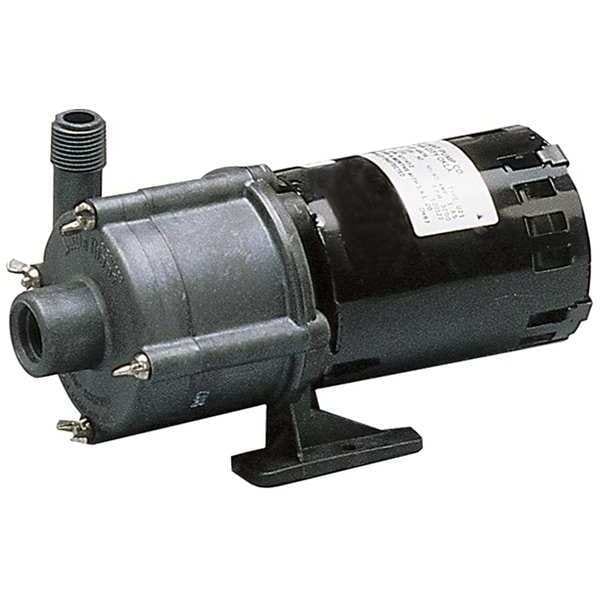

Item Magnetic Drive Pump
HP 1/30 hp
Voltage 115V
Inlet 1/2 in FPT
Outlet 1/2 in MPT
Max. Head 14.6 ft
Operating Pressure 6.3 psi
Housing Material Glass-Filled Polyphenylene
GPM of Water @ 3 Ft. of Head 7.5 gpm
Temp. @ 0 psig 180 Degrees F
Impeller Material Carbon/Polyphenylene
Series MD-HC
Temp. @ 30 psig 135 Degrees F
Temp. @ 10 psig 165 Degrees F
Mounting Horizontal
Motor Enclosure Open Air Over
Max. Viscosity 100 SSU
Application For Highly Corrosive Chemicals, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
Temp. @ 20 psig 145 Degrees F
Max. Specific Gravity 1.1
Gasket Material FKM
Full Load Amps 1.7 A
Cord Type 3-conductor SJO
Design Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
Bearing Type Thrust
GPM of Water @ 6 Ft. of Head 6.5 gpm
GPM of Water @ 9 Ft. of Head 5.5 gpm
Nameplate Voltage 115V AC
Flow Rate @ 6 ft of Head (Maximum) 6.8 gpm
Operating Pressure (Maximum) 6.3 psi
Full Load Current 1.7 A
Flow Rate @ 3 ft of Head (Maximum) 7.8 gpm
Intake Pipe Type FNPT
Ambient Temperature (Maximum) 77 Degrees F
Horsepower (Maximum) 1/30 hp
Feet of Head (Maximum) 14.6 ft
Frequency 60 Hz
Specific Gravity (Maximum) 1.1
Discharge Pipe Type NPT
Motor Mounting Type Horizontal
Phase Single
Viscosity (Maximum) 100 SUS
Flow Rate @ 9 ft of Head (Maximum) 5.5 gpm
Media Temperature (Maximum) 200 Degrees F
Pump Design End Suction
Ambient Temperature - Minimum 32 Degrees F
Best Efficiency Flow 6 gpm Chemical Compatibility
See full list of Chemical Compatibility Acetylene,Acid,Alcohol,Aluminum Chloride,Aluminum Chloride 20%,Aluminum Sulfate,Ammonium Chloride,Ammonium Hydroxide,Antifreeze,Barium Chloride,Barium Hydroxide,Barium Sulfate,Benzene,Borax,Butadiene,Butane,Butylene,Calcium Chloride,Calcium Sulfate,Carbon Disulfide,Chlorobenzene,Copper Cyanide,Copper Sulfate 5%,Cyclohexane,Diesel Fuel,Distilled,Ethyl Chloride,Ethylene Chloride,Ethylene Glycol,Ferric Chloride,Ferrous Chloride,Ferrous Sulfate,Formic Acid,Fuel Oil,Gasoline,Heptane,Hexane,Jet Fuel,Kerosene,Lactic Acid,Lubricants,Magnesium Hydroxide,Magnesium Sulfate,Mine,Naphtha,Naphthalene,Cotton Seed Oil,Mineral Oil,Perchloroethylene,Plating Solutions,Potassium Bicarbonate,Potassium Carbonate,Potassium Chlorate,Potassium Chloride,Potassium Dichromate,Potassium Permanganate,Potassium Sulfate,Salt,Soap,Sodium Aluminate,Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Carbonate,Sodium Chlorate,Sodium Chloride,Sodium Chromate,Sodium Cyanide,Sodium Sulfate,Sodium Sulfide,Sodium Thiosulphate,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 1% to 10%,Tomato Juice,Turpentine,Vinegar,Water,Xylene,Zinc Chloride,Zinc Sulfate
Priming Manual
Inlet Standard FNPT
Number of Stages 1
Media Temperature - Maximum 200 Degrees F
Shaft Seal Type Sealless
Pump Drive Configuration Close-Coupled
Pump Mounting Style Base-Mounted
Best Efficiency Head 8 ft
Ambient Temperature - Maximum 77 Degrees F
Flow Rate (Maximum) 8.5 gpm
Pumping Application Chemical Transfer
Mounting Orientation Horizontal
Case Pressure - Maximum 6.3 psi
Hazardous Location Class Not Rated
Drive Coupling Type Magnetic Coupling
Media Temperature - Minimum 32 Degrees F
Shut Off Pressure - Maximum 6.3 psi
