Little Giant Pump

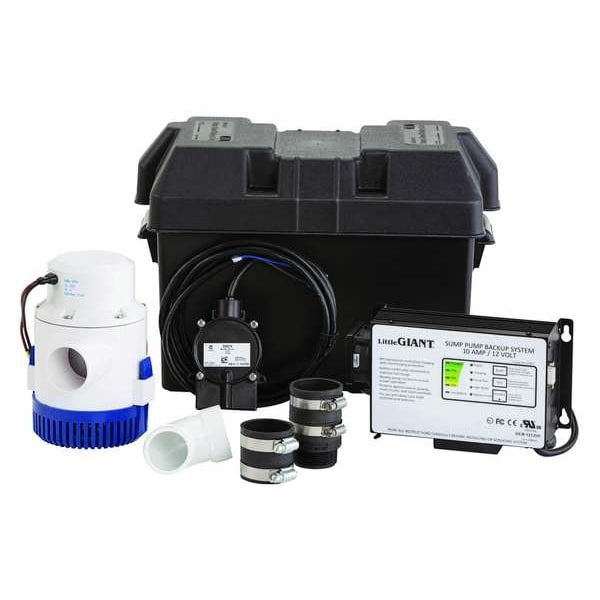

Battery Back Up System, 20 Head ft.

product price: $404.46
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 1/3 (Primary)
  • Body Material Acetal (Primary)
  • Switch Actuation Diaphragm
  • Flow Rate @ 10 Ft. of Head 20.0 gpm (Primary)
  • Min. Sump Pit Dia. 10 in
See all product information

Product Information

Dimensions

Min. Sump Pit Dia. 10 in
Cord Length 6 ft
Max. Diameter Solids 1/8 in
Cord Length - Pumps 6 ft.
Height 7-1/4"
Width 4-1/4"
Length 6"
Max. Dia. Solids (In.) - Back-Up 1/8
Overall Height 7 1/4 in
Width at Widest Point 4 1/4 in
Discharge Dia. 1 1/2 in
Secondary Pump Maximum Solids Diameter 1/8 in
Primary Pump Maximum Solids Diameter 1/8 in
Primary Pump Width at Widest Point 4 1/4 in
Primary Pump Overall Height 7 1/4 in

Details

HP 1/3 (Primary)
Body Material Acetal (Primary)
Switch Actuation Diaphragm
Flow Rate @ 10 Ft. of Head 20.0 gpm (Primary)
Max. Head 20.0 ft (Primary); 20.0 ft (Secondary)
Voltage - Pumps 12VDC
Includes Battery Charger, Check Valve
Max. Flow (GPH) - Pumps 2520
Motor Type Brush
Alarm Included Yes
GPH of Water @ 10 Ft. of Head 1200
Base Material Acetal
Voltage 12
GPM of Water @ 5 Ft. of Head 29 (Primary)
Impeller Material - Pumps Nylon
GPH of Water @ 5 Ft. of Head 1740
Max. Head (Ft.) - Back-Up 20
Item - Sump Pumps Sump/Battery Back-Up System
Impeller Material Nylon (Primary)
Pump Body Material Acetal
Item Sump/Battery Back-Up System
Max. Flow (GPH) 2520
Max. Flow (GPH) - Back-Up 2520
Amps - Pumps 14.00
GPH of Water @ 15 Ft. of Head 600
Amps 14.0 A
Amps - Back-Up 14
Discharge NPT 1-1/2"
Max. Liquid Temp. 120 Degrees F
Shaft Seal Material - Pumps Nitrile Rubber
Max. Head - Pumps 20 ft.
Duty Continuous
Voltage - Back-Up 12VDC
For Use With Sump Pits Above 15" Diameter and 18" Deep
GPH of Water @ 0 Ft. of Head 2520
12VDC Battery Charger 10A
Switch Type - Pumps Diaphragm
Primary Pump Shaft Seal Material Buna-N
Primary Pump Body Material Acetal
Primary Pump Rated Voltage 12V DC
Discharge Gender Female
Primary Pump HP 1/3 hp
Duty Cycle Continuous
Secondary Pump Maximum Head 20 ft
Primary Pump Duty Cycle Continuous
Flow Rate @ 5 Ft. of Head 29.0 gpm (Primary)
Primary Pump Impeller Material Nylon
Secondary Pump Amps 14
Primary Pump Maximum Head 20 ft
Discharge Standard NPT
Switch Electrical Connection Integral
Primary Pump Amps 14.0
Secondary Pump Rated Voltage 12V DC
Primary Pump Flow Rate @ 10 Ft. of Head 20.0 gpm
Discharge 1-1/2 in FNPT
Primary Pump Flow Rate @ 5 Ft. of Head 29.0 gpm

Description

Sump/Battery Back-Up System
