Shop LITTLE GIANT PUMP

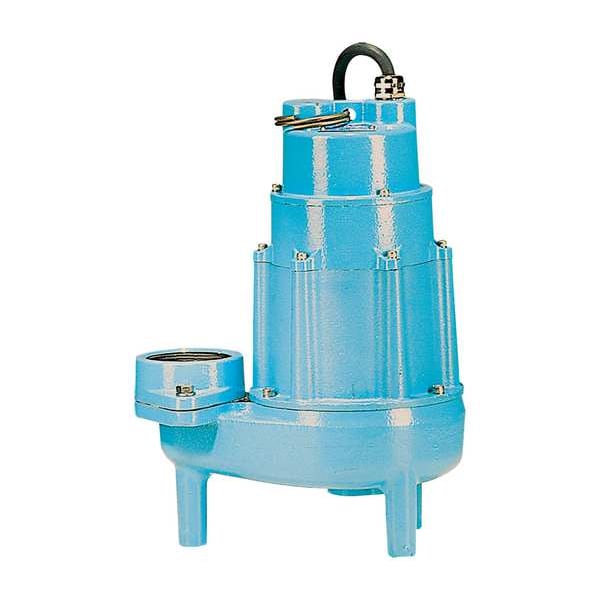

EffluentPump, 20ft, 16.4A, 2hp, 230VAC

  • Mfr # 520200
  • Zoro # G101985210
product price:
$
1,443.99
/ea
Free Shipping & Returns

Key Features

Phase - Pumps
1
Cord Length
20 ft
HP
2
Impeller Material
Brass
Amps
16.4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
520200
Zoro #
G101985210
UPC #
0010121202009
Country of Origin
Multiple

Dimensions

Cord Length
20 ft
Max. Diameter Solids
3/4 in
Manufacturers Warranty Length
3 yr
Width at Widest Point
12 7/8 in
Min. Sump Pit Dia.
18 in
Discharge Dia.
2 in
Overall Height
17 1/8 in
Body Dia.
8 3/8 in
Discharge Diameter
2 in
Solids Diameter - Maximum
3/4 in
Body Diameter
8 3/8 in
Sump Pit Diameter - Minimum
18 in

Details

Item
Effluent Pump
Phase - Pumps
1
HP
2
Impeller Material
Brass
Amps
16.4 A
Body Material
Cast Iron
Max. Head
110 ft
Switch Actuation
No Switch Included
RPM
3,200 RPM
Duty Cycle
Continuous
Flow Rate @ 60 Ft. of Head
89 gpm
Flow Rate @ 100 Ft. of Head
19 gpm
Flow Rate @ 40 Ft. of Head
110 gpm
Gauge/Conductor
14/3
Discharge Gender
Female
Series
20E-CIM
Thermal Protection
Yes
Hz
60 Hz
Flow Rate @ 80 Ft. of Head
62 gpm
Discharge Standard
NPT
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile Rubber
Alarm Included
Yes
Switch Electrical Connection
No Switch Included
Rated Voltage
230V AC
Agency Compliance
cCSAus Listed
Flow Rate @ 20 Ft. of Head
135 gpm
Discharge
2 in FNPT
Phase
Single
Max. Liquid Temp.
140 Degrees F
For Media Type
Effluent Water, Grey Water
Motor Housing Material
Cast Iron
Standards
cCSAus Listed
Current
16.4 A
Frequency
60 Hz
Power Source
Corded Electric
Flow Rate @ 40 ft of Head
110 gpm
Horsepower
2 hp
Requires Control Panel
No Control Panel Required
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Flow Rate @ 20 ft of Head
135 gpm
Liquid Temperature - Maximum
140 Degrees F
Feet of Head - Maximum
110 ft
Includes Alarm
Alarm Included
Shaft Seal Type
Single Mechanical
Volute Material
Cast Iron
Rotation Speed - Maximum
3,200 RPM
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Effluent Pump, HP 2, Rated Voltage 230V AC, Hz 60 Hz, Phase - Pumps 1, Amps 16.4 A, Body Material Cast Iron, Impeller Material Brass, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile Rubber, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 20 Ft. of Head 135 gpm, Flow Rate @ 40 Ft. of Head 110 gpm, Flow Rate @ 60 Ft. of Head 89 gpm, Flow Rate @ 80 Ft. of Head 62 gpm, Flow Rate @ 100 Ft. of Head 19 gpm, Max. Head 110 ft

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
