Shop LITTLE GIANT PUMP

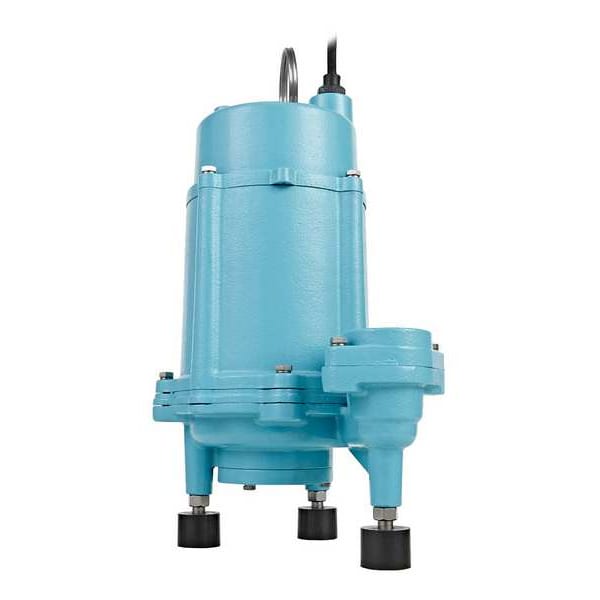

Grinder Pumps, 20 ft, Single, 115V AC

  • Mfr # 509809

  • Zoro # G104420176


product price:
$
1,537.99
/ea
Free Shipping & Returns

Key Features

Impeller Material
Cast Iron
Rated Voltage
115V AC
Off Point
51 ft
Phase - Pumps
1
Max. Head
51 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
509809
Zoro #
G104420176
UPC #
010121004047
Country of Origin
Multiple
Item
Grinder Pumps
Impeller Material
Cast Iron
Rated Voltage
115V AC
Off Point
51 ft
Phase - Pumps
1
Max. Head
51 ft
Duty Cycle
Continuous
Switch Electrical Connection
No Switch Included
Max. Liquid Temp.
140 Degrees F
Shaft Seal Material - Pumps
Nitrile, Silicon Carbide
Hz
60 Hz
Flow Rate @ 10 Ft. of Head
49.3 gpm
Amps
12.5 A
HP
1 hp
Switch Actuation
No Switch Included
RPM
3,450 RPM
Agency Compliance
cULus
Flow Rate @ 20 Ft. of Head
43.9 gpm
Discharge
2 in FNPT
Body Material
Cast Iron
Frequency
60 Hz
Horsepower
1 hp
Feet of Head - Maximum
51 ft
Shaft Seal Material
Nitrile Rubber/Silicon Carbide
Current
12.5 A
Phase
Single
Standards
cULus
Liquid Temperature - Maximum
140 Degrees F
Rotation Speed - Maximum
3,450 RPM
Flow Rate @ 10 ft of Head
49.3 gpm
Pump Body Material
Cast Iron
Number of Pumps
1

Description

Grinder Pumps, HP 1 hp, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Amps 12.5 A, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Nitrile, Silicon Carbide, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Off Point 51 ft, Flow Rate @ 10 Ft. of Head 49.3 gpm, Flow Rate @ 20 Ft. of Head 43.9 gpm, Max. Head 51 ft, Min. Sump Pit Dia. 24 in, Body Dia. 10 in, Cord Length 20 ft, Discharge 2 in FNPT, Max. Diameter Solids 2 in
