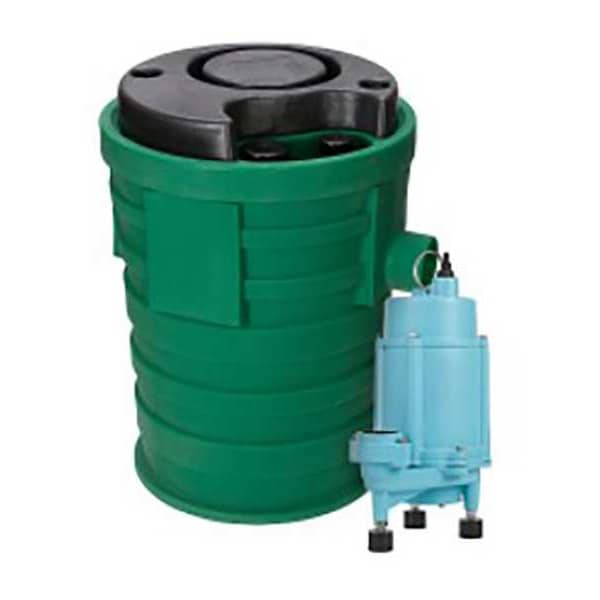

Little Giant Pump GrinderPumpSystem, 20ft, 1hp, 115VAC 509816 - main

GrinderPumpSystem, 20ft, 1hp, 115VAC

  • Mfr # 509816

  • Zoro # G904420147

product price: $2,326.99
/ea
Item requires special delivery charges. A $195.00 per item surcharge will be applied.

Key Features

Phase - Pumps
Single
Cord Length
20 ft
Hz
60 Hz
HP
1 hp
Rated Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
509816
Zoro #
G904420147
UPC #
010121999404
Country of Origin
Multiple

Dimensions

Cord Length
20 ft
Manufacturers Warranty Length
3 yr
Max. Diameter Solids
2 in
Inlet Diameter
4 in
Basin Height
30 in
Solids Diameter - Maximum
2 in
Basin Diameter
20 in
Discharge Diameter
1 1/4 in

Details

Item
Grinder Pump System
Phase - Pumps
Single
Hz
60 Hz
HP
1 hp
Rated Voltage
115V AC
Switch Electrical Connection
Piggyback
Max. Liquid Temp.
140 Degrees F
Flow Rate @ 10 Ft. of Head
49.3 gpm
Switch Actuation
Tether Float
Shaft Seal Material - Pumps
Nitrile, Silicon Carbide
Impeller Material
Cast Iron
Agency Compliance
cULus
Flow Rate @ 20 Ft. of Head
43.9 gpm
Max. Head
51 ft
Duty Cycle
Continuous
Amps
12.5 A
On Point
9 in
Off Point
2 in
RPM
3,450 RPM
Phase
Single
Power Source
Corded Electric
Horsepower
1 hp
Includes Alarm
No Alarm Included
Number of Pumps
1
Compatible Drop-In Replacement Brand
Little Giant
Standards
cULus
Feet of Head - Maximum
51 ft
Flow Rate @ 10 ft of Head
49 gpm
Discharge Gender
Female
Shaft Seal Material
Nitrile Rubber/Silicon Carbide
For Media Type
Sewage Water
Pump Body Material
Cast Iron
Liquid Temperature - Maximum
140 Degrees F
Compatible Drop-In Replacement Series
Pit+Plus Sr.
Basin Capacity
40.8 gal
Current
12.5 A
Basin Material
HDPE
Discharge Standard
NPT
Rotation Speed - Maximum
3,450 RPM
Frequency
60 Hz
Discharge Location
Top

Description

GrinderPumpSystem,20ft,1hp,115VAC
