Shop LITTLE GIANT PUMP

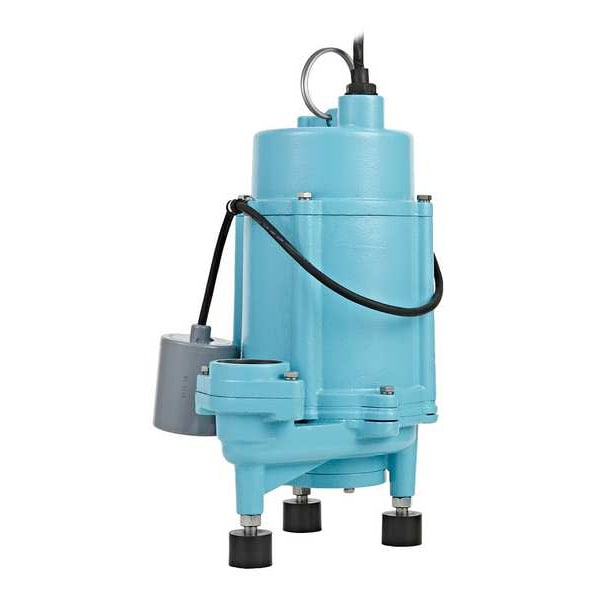

Grinder Pumps, 20 ft, Single, 230V AC

  • Mfr # 509813

  • Zoro # G504420172

product price:
$
1,495.99
/ea
Free Shipping & Returns

Key Features

Max. Liquid Temp.
140 Degrees F
Shaft Seal Material - Pumps
Nitrile, Silicon Carbide
Switch Electrical Connection
Piggyback
Impeller Material
Cast Iron
Off Point
8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
509813
Zoro #
G504420172
UPC #
010121004085
Country of Origin
Multiple
Item
Grinder Pumps
Max. Liquid Temp.
140 Degrees F
Shaft Seal Material - Pumps
Nitrile, Silicon Carbide
Switch Electrical Connection
Piggyback
Impeller Material
Cast Iron
Off Point
8 in
Hz
60 Hz
RPM
3,450 RPM
Agency Compliance
cULus
Flow Rate @ 20 Ft. of Head
43.9 gpm
HP
1 hp
Duty Cycle
Continuous
Max. Head
51 ft
Flow Rate @ 10 Ft. of Head
49.3 gpm
On Point
14 in
Rated Voltage
230V AC
Switch Actuation
Tether Float
Phase - Pumps
1
Amps
6.5 A
Body Material
Cast Iron
Discharge
2 in FNPT
Shaft Seal Material
Nitrile Rubber/Silicon Carbide
Frequency
60 Hz
Standards
cULus
Phase
Single
Liquid Temperature - Maximum
140 Degrees F
Current
6.5 A
Rotation Speed - Maximum
3,450 RPM
Flow Rate @ 10 ft of Head
49.3 gpm
Feet of Head - Maximum
51 ft
Horsepower
1 hp
Number of Pumps
1
Pump Body Material
Cast Iron

Description

Grinder Pumps, HP 1 hp, Rated Voltage 230V AC, Hz 60 Hz, Phase - Pumps 1, Amps 6.5 A, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Nitrile, Silicon Carbide, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point 8 in, On Point 14 in, Flow Rate @ 10 Ft. of Head 49.3 gpm, Flow Rate @ 20 Ft. of Head 43.9 gpm, Max. Head 51 ft, Min. Sump Pit Dia. 24 in, Body Dia. 10 in, Cord Length 20 ft, Discharge 2 in FNPT, Max. Diameter Solids 2 in
