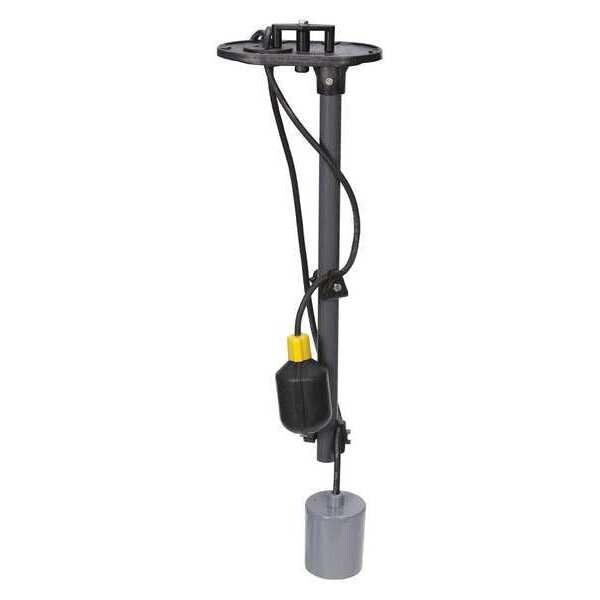

Little Giant Pump NO Float Switch 115VAC 20 psi 513634 - main

NO Float Switch 115VAC 20 psi

  • Mfr # 513634

  • Zoro # G2035680

product price: $146.99
/ea
Free Shipping & Returns

Key Features

Switch Type
Tether Float
Voltage
115VAC
Max. Pressure
20 psi
Amps
13 A
Tether Length Min.-Max.
3-1/2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
513634
Zoro #
G2035680
UPC #
010121149656
Country of Origin
United States

Dimensions

Tether Length Min.-Max.
3-1/2"
Float Switch Cord Length
20 ft.
Float Dia. (In.)
3
Manufacturers Warranty Length
3 yr
Float Dia.
3 in
Float Length
3 5/8 in
Cord Length
20 ft
Tether Length - Minimum
3 1/2 in
Tether Length - Maximum
3 1/2 in
Float Diameter
3 1/8 in

Details

Switch Type
Tether Float
Voltage
115VAC
Max. Pressure
20 psi
Item
Float Switch
Amps
13 A
Body Material
PVC
Float Switch Type
Tether
Electrical Connection (Pumps)
Plug
Float Switch Float Material
PVC
For Use With
Liquid
Max. Liquid Temp.
120 Degrees F
Float Switch On Point
14" Above Base
Max. Pressure (PSI)
20
Teather/Solid State
Tether
Series
Pit+Plus Jr - PPJFWA
Float Switch Off Point
6" Above Base
Max. Wattage
1495
Connection
Plug
Float Material
PVC
Type
Float
Electrical Connection - Pumps
Plug
Operation
Electronic
Mounts
Vertical
Float Switch Contact Form
Normally Open
Wire Gauge
18
Includes
Alarm, Switch
Standards
UL, CSA
Contact Form
Normally Open
Switch Actuation
Tether Float
Rated Voltage
115V AC
Electrical Connection
Piggy-Back Plug
On Point
9 - 14 in
Off Point
2 - 6 in
Contact Default
Normally Open
Actuation Method
Mechanically-Activated
NEC Cord Designation
SJOW
Running Current - Maximum
13 A
Electric Load Current - Minimum
1 A
Number of Floats
2
Liquid Temperature - Maximum
140 Degrees F
Compatible Pump Type
Sewage Pump
Compatible Manufacturer Part Number
JF2V2DA1, Pit+Plus Jr Series
Electric Load Current - Maximum
13A @ 120V AC
Starting Current - Maximum
85 A

Description

Float Switch
