Little Giant Pump NO Mechanical Float Switch 115VAC 599014 - main

NO Mechanical Float Switch 115VAC

  • Mfr # 599014

  • Zoro # G1410841

product price:  $104.99
/ea
Free Shipping & Returns

Key Features

Switch Type
Diaphragm
Voltage
115VAC
Amps
10 A
Float Switch Off Point
Adjustable
Float Switch Cord Length
18 ft.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
599014
Zoro #
G1410841
UPC #
010121999275
Country of Origin
Multiple

Dimensions

Float Switch Cord Length
18 ft.
Manufacturers Warranty Length
1 yr
Float Length
4 3/4 in
Cord Length
18 ft
Float Diameter
3 in

Details

Switch Type
Diaphragm
Voltage
115VAC
Item
Float Switch
Amps
10 A
Float Switch Off Point
Adjustable
Electrical Connection - Pumps
Piggyback
For Use With
Pumps Up To 10 Amps Max And Up To 1/3 hp
Float Switch Type
Diaphragm
Float Switch Float Material
Buna-N
Electrical Connection (Pumps)
Piggyback
Type
Diaphragm
Float Material
Nylon
Wire Gauge
18
Float Switch Contact Form
Normally Open
Max. Liquid Temp.
120 Degrees F
Float Switch On Point
Adjustable
Pumping Range Min./Max.
1.5
Standards
CSA
Contact Form
Normally Open
Series
RS-5LL
Includes
Mounting Hardware
Mounting Bracket Material
Stainless Steel
Switch Actuation
Diaphragm
Rated Voltage
115V AC
Electrical Connection
Piggy-Back Plug
Contact Default
Normally Open
On Point
2 in to 3 in
Off Point
1/2 in to 1-1/2 in
Running Current - Maximum
10 A
Liquid Temperature - Maximum
120 Degrees F
Starting Current - Maximum
16 A
Number of Floats
1
NEC Cord Designation
SJTW
Compatible Manufacturer Part Number
5-ASP-LL, 6-CIA-ML, WRSC-6
Actuation Method
Sensor
Electric Load Current - Maximum
10A @ 115V AC
Compatible Pump Type
Dewatering Pump, Sump Pump

Description

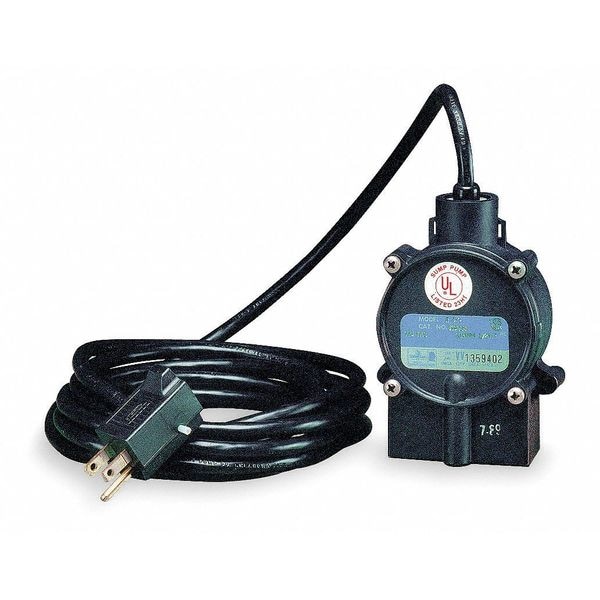

The LITTLE GIANT PUMP 599014 is an RS-5-LL low-level diaphragm float switch that converts a manual pump to automatic operation. It is designed for pumps up to 1/3 hp and 10 amps at 115V AC, and can be used with dewatering and sump pumps. This piggy-back switch provides an on level between 2 in. and 3 in. and an off level between 1/2 in. and 1-1/2 in., and it includes mounting hardware for installation.

Key features:

  • Diaphragm switch type: Sensor-actuated float switch for automatic pump control.
  • Piggy-back plug connection: Connects through a piggy-back electrical plug arrangement.
  • Electrical rating: 115V AC, 10A maximum running/load current, 16A maximum starting current.
  • Switch operation: Normally open contact form.
  • Low-level switching range: Turns pump on at 2 in. to 3 in. and off at 1/2 in. to 1-1/2 in.
  • Compatible pump types: For use with dewatering pumps and sump pumps.
  • Cord length: 18 ft. cord for switch connection.
  • Materials: Nylon float with Buna-N float switch material and stainless steel mounting bracket.
  • Maximum liquid temperature: 120 degrees F.
  • Includes: Mounting hardware.
  • Standards: CSA.
