Submersible Pump, 0.6 A, 115V AC, 1/125 hp, 7 ft Max Head, 1/4 in Intake and Disch, Epoxy Encap

Mfr # 518200
Zoro # G2523385

82.35

Key Features

1/125 hp

Voltage

115V

Full Load Amps

0.6 A

Cord Length

6 ft

Impeller Material

Polypropylene

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 518200
Zoro #: G2523385
UPC #: 010121189003
Country of Origin: Mexico

Dimensions

Cord Length: 6 ft
Height: 3 5/8 in
Length: 3.5 in
Width: 2 3/4 in
Overall Height: 3.6 in
Overall Width: 2.8 in
Overall Length: 3.5 in
Compatible Discharge Pipe Size: 1/4 in
Discharge Diameter: 1/4 in
Wire Rope Length: 3.5 in

Details

Item: Centrifugal Pump
HP: 1/125 hp
Voltage: 115V
Full Load Amps: 0.6 A
Impeller Material: Polypropylene
Duty: Continuous
Max. Head: 7 ft
Seal Material: Nitrile
Inlet Type: Screened
GPH of Water @ 5 Ft. of Head: 100
Agency Compliance: UL
Overload Protection: yes
GPH of Water @ 1 Ft. of Head: 170
Inlet: Screened
Outlet: 1/4 in (M)NPT
Housing Material: Polypropylene
Features: Submersible
Hz: 60 Hz
Amps: 0.6 A
Standards: cCSAus Listed
Series: PE-1
Nameplate Voltage: 115V AC
Pumping Application: Coolant Recirculating, Liquid Transfer
Pump Housing Material: Plastic
Seal Type: Mechanical
Discharge Type: NPT
Maximum Flow Rate: 170 gph
Motor Sealing: Epoxy Encapsulated
Intake Type: Screened
Maximum Feet of Head: 7 ft
Minimum Flow Rate: 0 gph
Feet of Head (Minimum): 0 ft
Flow Rate @ 5 ft of Head (Maximum): 100 gph
Horsepower: 1/125 hp
Maximum Media Temperature: 120 Degrees F
Duty Cycle: Continuous
Frequency: 60 Hz
Flow Rate @ 1 ft of Head (Maximum): 170 gph
Electrical Connection Type: Plug-In
Ambient Temperature - Maximum: 120 Degrees F
Full Load Current: .6A
Ambient Temperature - Minimum: 30 Degrees F
Pump Design: Submersible
Chemical Compatibility: Machine Oil, Water
Shaft Seal Material: Buna-N
Media Temperature - Maximum: 120 Degrees F
Suction Lift (Maximum): 0 ft
Flow Rate (Minimum): 0 gph
Feet of Head (Maximum): 7 ft
Media Temperature - Minimum: 30 Degrees F
Number of Stages: 1
Case Pressure - Maximum: 3.03 psi
Shaft Seal Type: Mechanical
Inlet Standard: Screened
Drive Coupling Type: No Coupling
Flow Rate (Maximum): 170 gph
Phase: Single

Description

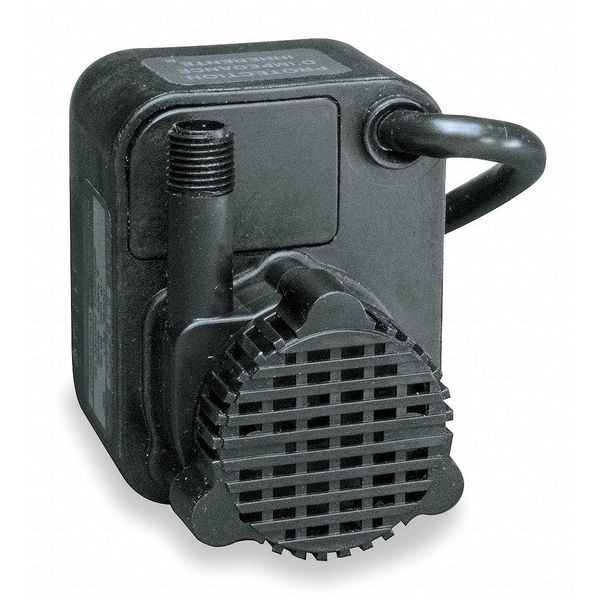

The LITTLE GIANT PUMP 518200 PE-1 Series is a compact submersible centrifugal pump for water transfer, recirculation, and water displays. It uses a 1/125 hp epoxy encapsulated direct-drive motor and operates on 115V AC with a plug-in 6 ft power cord. This pump delivers up to 170 gph at 1 ft of head, up to 100 gph at 5 ft of head, and has a maximum head of 7 ft. It is used in applications such as statuary fountains, water displays, air conditioners, and machine tools.

Key features:

Submersible design: Intended for operation while submerged in water.
Flow rate: 170 gph at 1 ft of head and 100 gph at 5 ft of head.
Maximum head: 7 ft shut-off head capability.
Motor: 1/125 hp direct-drive motor with epoxy encapsulation.
Power supply: 115V AC, 60 Hz, 0.6 A.
Electrical connection: Plug-in design with 6 ft power cord.
Discharge connection: 1/4 in male NPT outlet; accepts 1/2 in ID flexible tubing.
Screened inlet: Helps limit debris from entering the pump.
Materials: Polypropylene housing and impeller with a nitrile mechanical seal.
Duty: Continuous duty operation.
Overload protection: Impedance protected motor with overload protection.
Size: Approximately 3.5 in long, 2.8 in wide, and 3.6 in high.
Listings: UL and cCSAus listed.
