Shop LITTLE GIANT PUMP

Pump, 4-5/8 In. L, 2-7/8 In. W, 5-1/4 In. H

  • Mfr # 518600

  • Zoro # G1998647

product price:  $168.99
/ea
Free Shipping & Returns

Key Features

HP
1/28 hp
Voltage
115V
Full Load Amps
1.4 A
Cord Length
6 ft
Impeller Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
518600
Zoro #
G1998647
UPC #
010121189690
Country of Origin
Mexico

Dimensions

Cord Length
6 ft
Width
2 7/8 in
Height
5 1/4 in
Length
4 5/8 in
Overall Length
4.6 in
Overall Width
2.9 in
Overall Height
5.3 in
Compatible Discharge Pipe Size
3/8 in
Discharge Diameter
3/8 in
Wire Rope Length
4.6 in

Details

Item
Centrifugal Pump
HP
1/28 hp
Voltage
115V
Full Load Amps
1.4 A
Impeller Material
Nylon
Duty
Continuous
Max. Head
13.4 ft
Seal Material
Fluoroelastomer
GPH of Water @ 10 Ft. of Head
205
Hz
60
Outlet
3/8 (M)NPT
Features
Snap-Off-Screen Covers Intake
GPH of Water @ 5 Ft. of Head
395
Agency Compliance
UL
Inlet
Smooth
Overload Protection
yes
GPH of Water @ 1 Ft. of Head
475
Inlet Type
Smooth
Housing Material
Polypropylene
Amps
1.4 A
Standards
cCSAus Listed
Minimum Flow Rate
0 gph
Flow Rate @ 10 ft of Head (Maximum)
205 gph
Frequency
60 Hz
Series
PE-2.5F
Discharge Type
NPT
Nameplate Voltage
115V AC
Thermal Overload Protection
Yes
Intake Type
Screened
Seal Type
Mechanical
Flow Rate @ 5 ft of Head (Maximum)
395 gph
Maximum Media Temperature
120 Degrees F
Flow Rate @ 1 ft of Head (Maximum)
475 gph
Pumping Application
Coolant Recirculating, Liquid Transfer
Maximum Feet of Head
13.4 ft
Pump Housing Material
Glass Filled Nylon
Motor Sealing
Epoxy Encapsulated
Electrical Connection Type
Plug-In
Duty Cycle
Continuous
Feet of Head (Minimum)
0 ft
Horsepower
1/28 hp
Maximum Flow Rate
475 gph
Full Load Current
1.4A
Media Temperature - Maximum
120 Degrees F
Number of Stages
1
Drive Coupling Type
No Coupling
Pump Design
Submersible
Case Pressure - Maximum
5.81 psi
Shaft Seal Type
Mechanical
Flow Rate (Minimum)
0 gph
Inlet Standard
Screened
Ambient Temperature - Minimum
30 Degrees F
Media Temperature - Minimum
30 Degrees F
Phase
Single
Feet of Head (Maximum)
13.4 ft
Chemical Compatibility
Machine Oil, Water
Flow Rate (Maximum)
475 gph
Shaft Seal Material
Fluoroelastomer
Ambient Temperature - Maximum
120 Degrees F
Suction Lift (Maximum)
0 ft

Description

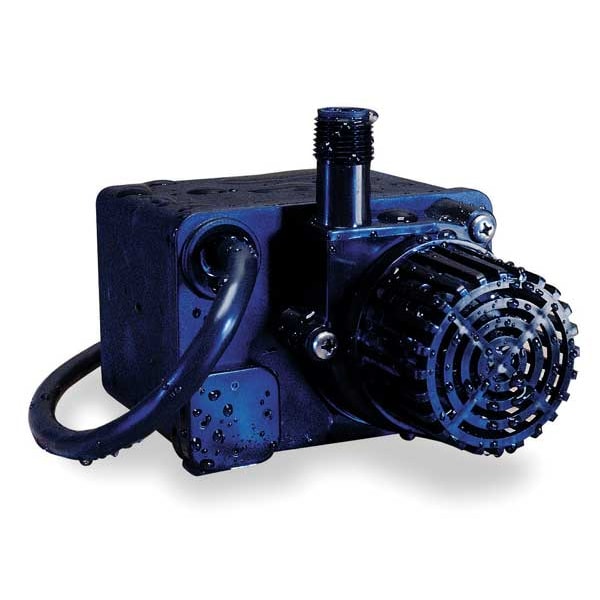

The LITTLE GIANT PUMP 518600 is a compact submersible centrifugal pump for transferring or recirculating liquids in commercial, industrial, and residential applications. It is used for statuary fountains, water displays, air conditioners, and machine tool coolants. This epoxy encapsulated, direct-drive pump delivers up to 475 gph, has a maximum head of 13.4 ft, and includes a screened intake, 3/8 in. MNPT discharge, and 6 ft power cord for plug-in 115V operation.

Key features of the LITTLE GIANT PUMP 518600:

  • 1/28 hp motor: Epoxy encapsulated direct-drive motor for submersible operation.
  • Flow performance: Delivers up to 475 gph at 1 ft of head, 395 gph at 5 ft, and 205 gph at 10 ft.
  • Maximum head: Rated for up to 13.4 ft shut-off head.
  • Discharge connection: 3/8 in. male NPT outlet.
  • Screened intake: Screened inlet with snap-off screen cover helps keep debris out of the pump.
  • Materials: Polypropylene housing, nylon impeller, and fluoroelastomer mechanical shaft seal.
  • Electrical: 115V AC, 60 Hz, 1.4 A with plug-in connection and 6 ft cord.
  • Duty rating: Continuous duty operation.
  • Temperature limit: Handles media temperatures up to 120 degrees F.
  • Protection/listing: Thermal overload protection; UL and cCSAus listed.
