Shop DAYTON

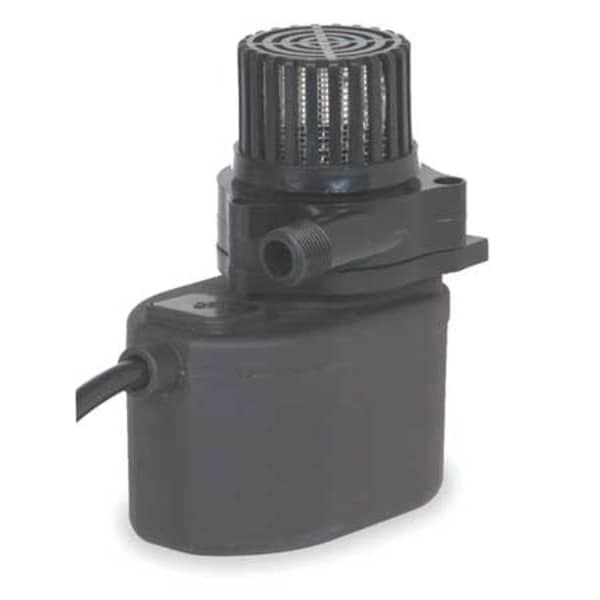

Pump, Compact Submersible, 1/70 HP

  • Mfr # 2HNN8

  • Zoro # G2061875

product price:  $163.99
/ea
Free Shipping & Returns

Key Features

HP
1/70 hp
Voltage
230V
Full Load Amps
0.8 A
Cord Length
6 ft
Impeller Material
POM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2HNN8
Zoro #
G2061875
UPC #
190735220153
Country of Origin
China

Dimensions

Cord Length
6 ft
Height
5 1/4 in
Width
2 7/8 in
Length
4 5/8 in
Compatible Discharge Pipe Size
3/8 in
Compatible Intake Pipe Size
3/4 in
Overall Length
4.6 in
Overall Width
2.9 in
Overall Height
5.3 in
Manufacturer Warranty Length
1 yr
Discharge Diameter
3/8 in
Inlet Diameter
3/4 in
Wire Rope Length
4.6 in

Details

Item
Centrifugal Pump
HP
1/70 hp
Voltage
230V
Full Load Amps
0.8 A
Impeller Material
POM
Duty
Continuous
Seal Material
Viton
Overload Protection
Thermal
Hz
50/60
GPH of Water @ 1 Ft. of Head
375
GPH of Water @ 10 Ft. of Head
244
Agency Compliance
UL and CSA
Inlet Type
Screened
Inlet
Screened
Electrical Connection - Pumps
Wire Leads
Outlet
3/8 in (M)NPT
GPH of Water @ 5 Ft. of Head
334
Electrical Connection (Pumps)
Wire Leads
Housing Material
Acetal
Features
Thermoplastic Motor Housing Handles Water with a Higher Mineral Content
Amps
0.8 A
Flow Rate @ 10 ft of Head (Maximum)
244 gph
Thermal Overload Protection
Yes
Pumping Application
Condensate Removal, Decorative Water, Evaporative Cooling, Coolant Recirculating, Vaporizers
Horsepower
1/70 hp
Duty Cycle
Continuous
Maximum Flow Rate
375 gph
Motor Sealing
Epoxy Encapsulated
Compatible with Media Type
Oil
Feet of Head (Minimum)
1 ft
Nameplate Voltage
230V AC
Maximum RPM
3,400 RPM
Standards
cCSAus Certified
Maximum Feet of Head
12.5 ft
Discharge Type
NPT
Flow Rate @ 5 ft of Head (Maximum)
334 gph
Electrical Connection Type
Hardwired
Intake Type
Screened
Pump Housing Material
Plastic
Flow Rate @ 1 ft of Head (Maximum)
375 gph
Frequency
60 Hz
Feet of Head (Maximum)
12.5 ft
Chemical Compatibility
Oil
Shaft Seal Material
FKM
Drive Coupling Type
No Coupling
Number of Stages
1
Phase
Single
Full Load Current
0.8 A
Inlet Standard
Screened
Flow Rate (Maximum)
375 gph

Description

Centrifugal Pump, Pump Housing Material Plastic, Horsepower 1/70 hp, Nameplate Voltage 230V AC, Flow Rate @ 1 ft of Head (Maximum) 375 gph, Flow Rate @ 5 ft of Head (Maximum) 334 gph, Flow Rate @ 10 ft of Head (Maximum) 244 gph, Maximum Feet of Head 12.5 ft, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 3/8 in, Intake Type Screened, Discharge Type NPT, Cord Length 6 ft, Motor Sealing Epoxy Encapsulated, Amps 0.8 A, Compatible with Media Type Oil, Duty Cycle Continuous
