Shop LITTLE GIANT PUMP

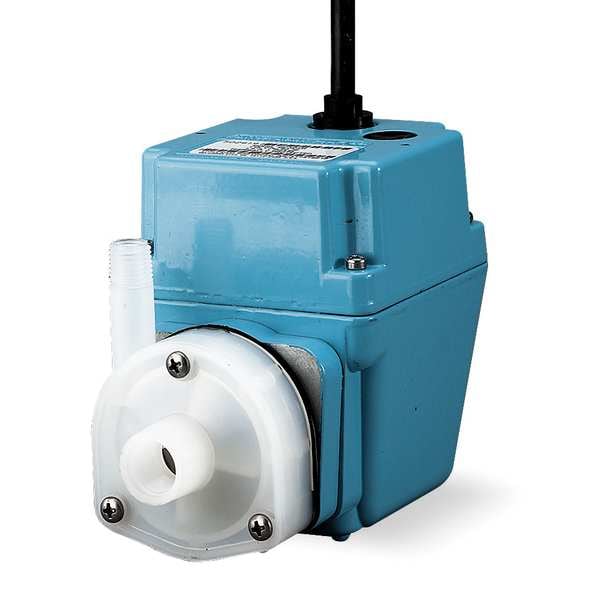

Submersible Centrifugal Pump, 1/40 HP

  • Mfr # 502303

  • Zoro # G3409576

product price:  $189.99
/ea
Free Shipping & Returns

Key Features

HP
1/40 hp
Voltage
115
Cord Length
6 ft
Impeller Material
Nylon
Duty
Intermittent
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
502303
Zoro #
G3409576
UPC #
010121029194
Country of Origin
Mexico

Dimensions

Cord Length
6 ft
Width
3 1/2 in
Manufacturers Warranty Length
1 yr
Height
4 1/2 in
Length
5 1/2 in
Discharge Diameter
1/4 in
Inlet Diameter
3/8 in

Details

Item
Centrifugal Pump
HP
1/40 hp
Voltage
115
Impeller Material
Nylon
Duty
Intermittent
Max. Head
11.8 ft
Seal Material
Viton
Housing Material
Aluminum
Motor Type
Shaded Pole
Bearing Type
Sleeve
Phase
Single
Max. Specific Gravity
1.1
Hz
60
Outlet
1/4 in (M)NPT
Impeller Type
Semi Open
Inlet Type
3/8 in (F)NPT
Features
submersible when pumping water or machine oils only.
Port Rotation
CW
Wetted Materials
Nitrile, Nylon, SSTL, Viton
Inlet
3/8 in (F)NPT
Amps
1.7 A
Motor RPM
3,400 RPM
Includes
3 Conductor SJTOW-A Cord Set, 6 ft
Seal Type
Lip
Horsepower
1/40 hp
Wetted Material
Buna-N, Nylon, Stainless Steel, FKM
Flow Rate @ 5 ft of Head (Maximum)
205 gph
Maximum RPM
3,400 RPM
Flow Rate @ 10 ft of Head (Maximum)
70 gph
Duty Cycle
Intermittent
Flow Rate @ 1 ft of Head (Maximum)
300 gph
Nameplate Voltage
115V AC
Shaft Seal Material
FKM
Ambient Temperature - Minimum
30 Degrees F
Suction Lift (Maximum)
0 ft
Full Load Current
1.7A
Number of Stages
1
Pumping Application
Coolant Recirculating, Liquid Transfer
Media Temperature - Minimum
30 Degrees F
Feet of Head (Maximum)
11.8 ft
Standards
CSA/UL
Ambient Temperature - Maximum
120 Degrees F
Media Temperature - Maximum
120 Degrees F
Pump Design
Submersible
Chemical Compatibility
Machine Oil, Water
Case Pressure - Maximum
5.12 psi
Flow Rate (Maximum)
300 gph
Drive Coupling Type
No Coupling
Motor Sealing
Oil-Filled
Pump Housing Material
Aluminum

Description

Compact Submersible Centrifugal Pump, Horsepower 1/40 hp, Nameplate Voltage 115V AC, Flow Rate @ 1 ft of Head (Maximum) 300 gph, Flow Rate @ 5 ft of Head (Maximum) 205 gph, Flow Rate @ 10 ft of Head (Maximum) 70 gph, Cord Length 6 ft, Amps 1.7 A, Duty Cycle Intermittent, Features submersible when pumping water or machine oils only., Impeller Material Nylon, Includes 3 Conductor SJTOW-A Cord Set, 6 ft

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
