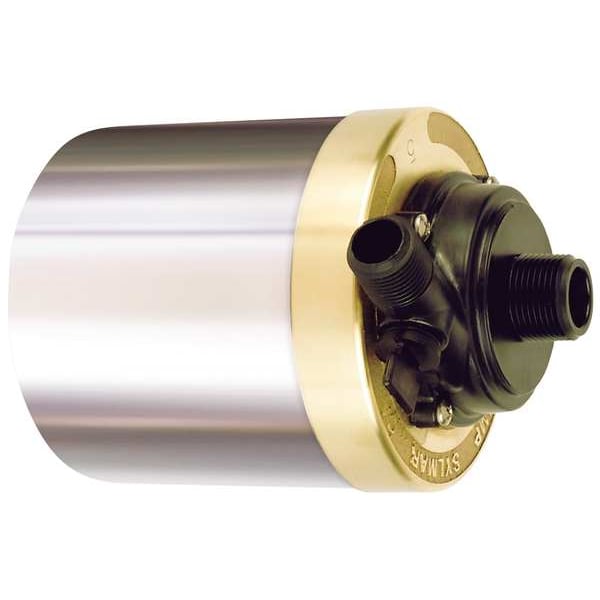

Pump, 6-1/4 In. L, 4-1/2 In. W, 4-1/2 In. H

  • Mfr # 517100002

  • Zoro # G3331106


product price:  $448.99
/ea
Free Shipping & Returns

Key Features

HP
1/12 hp
Voltage
115V
Full Load Amps
2.2 A
Cord Length
20 ft
Impeller Material
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
517100002
Zoro #
G3331106
UPC #
010121137776
Country of Origin
Multiple

Dimensions

Cord Length
20 ft
Width
4 1/2 in
Length
6 1/4 in
Height
4 1/2 in
Overall Height
4.5 in
Compatible Discharge Pipe Size
1/2 in
Manufacturer Warranty Length
2 yr
Overall Length
6.5 in
Compatible Intake Pipe Size
3/4 in
Overall Width
4.5 in

Details

Item
Marine Centrifugal Pump
HP
1/12 hp
Voltage
115V
Full Load Amps
2.2 A
Impeller Material
Nylon
Duty
Continuous
Max. Head
12 ft
Seal Material
Viton
Inlet Type
Threaded
Inlet
Threaded
Overload Protection
yes
Motor Type
Shaded Pole
Housing Material
Nylon
Cord Type
SJTOW
GPH of Water @ 10 Ft. of Head
320
Hz
60
Motor RPM
3,450 RPM
GPH of Water @ 1 Ft. of Head
725
GPH of Water @ 5 Ft. of Head
590
Amps
2.2 A
Electrical Connection Type
Plug-In
Maximum Flow Rate
830 gph
Maximum Feet of Head
12 ft
Maximum Media Temperature
120 Degrees F
Intake Type
NPT
Flow Rate @ 10 ft of Head (Maximum)
320 gph
Compatible with Media Type
Freshwater, Saltwater
Discharge Type
NPT
Nameplate Voltage
115V AC
Pump Housing Material
Bronze
Maximum RPM
3,450 RPM
Thermal Overload Protection
Yes
Series
S
Frequency
60 Hz
Duty Cycle
Continuous
Standards
CSA Certified, UL Listed
Flow Rate @ 5 ft of Head (Maximum)
590 gph
Seal Type
Oil Seal
Flow Rate @ 1 ft of Head (Maximum)
755 gph
Horsepower
1/15 hp
Pumping Application
Air Conditioners, Machine Tool Coolants and Mild Acids, Water Displays
Pump Type
Submersible Centrifugal

Description

Marine Centrifugal Pump, Pump Housing Material Bronze, Horsepower 1/15 hp, Nameplate Voltage 115V AC, Maximum Feet of Head 12 ft, Flow Rate @ 5 ft of Head (Maximum) 590 gph, Flow Rate @ 10 ft of Head (Maximum) 320 gph, Flow Rate @ 15 ft of Head (Maximum) Not Applicable, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 1/2 in, Intake Type NPT, Discharge Type NPT, Cord Length 20 ft, Pump Type Submersible Centrifugal, Series S, Amps 2.2 A
