  9. Pump, Utility, Nickel-Plated Brass, 12 VDC

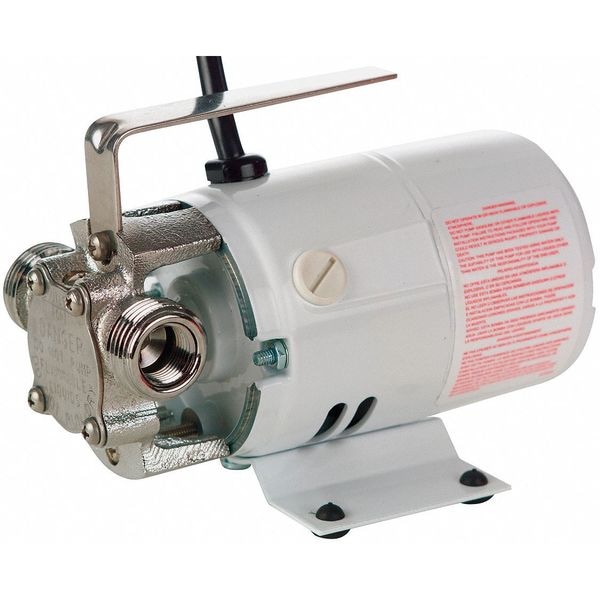

Little Giant Pump Pump, Utility, Nickel-Plated Brass, 12 VDC 555602 - main

Pump, Utility, Nickel-Plated Brass, 12 VDC

  • Mfr # 555602

  • Zoro # G2952223

product price: $148.99
/ea
Free Shipping & Returns

Key Features

Power Source
Vehicle Battery
HP
1/10 hp
Body Material
Nickel-Plated Brass
Cord Length
1 ft
GPH of Water @ 5 Total Ft. of Head
258 gph
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
555602
Zoro #
G2952223
UPC #
010121106642
Country of Origin
Multiple

Dimensions

Cord Length
1 ft
Width (In.)
4 in
Length (In.)
6 11/16 in
Height (In.)
3 3/8 in
Overall Length
5.9 in
Overall Height
4.2 in
Overall Width
3 in
Discharge Connection Size
3/8 in
Media Intake Connection Size
3/4 in
Discharge External Diameter
3/4 in
Discharge Internal Diameter
3/8 in
Inlet Internal Diameter
3/8 in
Inlet External Diameter
3/4 in

Details

Power Source
Vehicle Battery
HP
1/10 hp
Body Material
Nickel-Plated Brass
GPH of Water @ 5 Total Ft. of Head
258 gph
GPH of Water @ 10 Ft. of Head
240 gph
GPH of Water @ 1 Ft. of Head
300 gph
Item
Utility Pump
Self-Priming
Yes
Pumps Up To (Ft.)
46 ft
Cord
12 in Leads
GPH of Water @ 40 Total Ft. of Head
80 gph
Max. Head (Ft.)
46 ft
GPH of Water @ 20 Ft. of Head
202 gph
Shaft Material
Stainless Steel
Inlet/Outlet (In.)
3/4 in Male GHT / 3/8 in FNPT
Type
Compact Utility
Impeller
Buna-N
Max. Liquid Temp. (F)
120 Degrees F
RPM
4,000 RPM
Bearings
Sleeve Bearings
Seals
Buna-N
Thermal Protection
Y
Motor Type
DC
Application
Water Transfer
Voltage
12 V DC
GPH of Water @ 30 Total Ft. of Head
150 gph
Motor Enclosure
Open Drip Proof
Amps AC
7.0
Includes
2 Extra Gaskets and 2 Impellers
Duty
Intermittent
Max. Suction Lift (Ft.)
7 ft
Bearing Type
Sleeve
Housing Material
Brass
Impeller Material
Buna-N
Operating Pressure - Maximum
10.8 psi
For Media Type
Clear Water
Flow Rate @ 20 ft of Head - Maximum
202 gph
Priming
Self-Priming
Flow Rate @ 40 ft of Head - Maximum
80 gph
Media Intake Connection Type
FNPT
Media Temperature - Maximum
140 Degrees F
Flow Rate @ 1 ft of Head - Maximum
300 gph
Nameplate Voltage
12V DC
Feet of Head - Maximum
25 ft
Horsepower - Maximum
1/10 hp
Viscosity - Maximum
1 cSt
Seal Material
Buna-N
Wetted Material
Brass, Buna-N
Discharge Connection Type
FNPT
Flow Rate @ 10 ft of Head - Maximum
5 gpm
Current
1.6 A
Motor Speed - Maximum
4,000 RPM
Frequency
60 Hz
Suction Lift - Maximum
7 ft
Seal Type
Lip
Inlet External Standard
Garden Hose Thread
Discharge Internal Standard
NPT
Discharge Internal Gender
Female
Inlet External Gender
Male
Discharge External Gender
Male
Discharge External Standard
Garden Hose Thread
Inlet Internal Gender
Female
Motor Housing Material
Stainless Steel
Inlet Internal Standard
NPT

Description

Utility Pump, Housing Material Brass, Horsepower - Maximum 1/10 hp, Nameplate Voltage 12V DC, Flow Rate @ 10 ft of Head - Maximum 5 gpm, Viscosity - Maximum 1 cSt, Feet of Head - Maximum 25 ft, Discharge Connection Size 3/8 in, Media Intake Connection Size 3/4 in, Media Intake Connection Type FNPT, Impeller Material Buna-N, Discharge Connection Type FNPT, Cord Length 1 ft, Priming Self-Priming, Operating Pressure - Maximum 10.8 psi, Suction Lift - Maximum 7 ft

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
