  5. Plug-In Utility Pump, 10ft, 8.125 in H, 115V AC

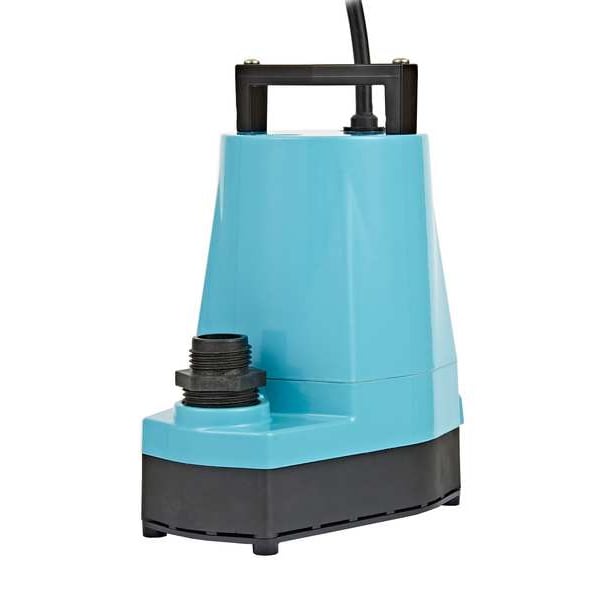

Little Giant Pump Plug-In Utility Pump, 10ft, 8.125 in H, 115V AC 505723 - main

Plug-In Utility Pump, 10ft, 8.125 in H, 115V AC

  • Mfr # 505723

  • Zoro # G901985212

product price:  $169.99
/ea
Free Shipping & Returns

Key Features

Power Source
Corded Electric
HP
1/6
Switch Actuation
No Switch Included
Body Material
Cast Aluminum
Cord Length
10 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
505723
Zoro #
G901985212
UPC #
0029753004585
Country of Origin
China

Dimensions

Cord Length
10 ft
Manufacturers Warranty Length
1 yr
Width at Widest Point
6 1/8 in
Overall Height
8 1/8 in
Discharge Dia.
1 in
Sump Pit Diameter - Minimum
7 in
Solids Diameter - Maximum
1/16 in
Discharge Internal Diameter
1 in
Depth Pumped - Minimum
1/16 in
Operating Water Depth - Minimum
1/2 in
Body Diameter
4 3/8 in

Details

Power Source
Corded Electric
HP
1/6
Switch Actuation
No Switch Included
Body Material
Cast Aluminum
Max. Head
26 ft
RPM
3,450 RPM
Hz
60 Hz
Phase
Single
Max. Liquid Temp.
120 Degrees F
Amps
2 AC A
Series
5-MSP
Impeller Material
Nylon
Includes
3/4 in GHT
Shaft Seal Material - Pumps
Fluoroelastomer
Agency Compliance
cULus
Item
Plug-In Utility Pump
Duty Cycle
Continuous
Discharge
1 in FNPT
Flow Rate @ 20 Ft. of Head
8.8 gpm
Discharge Gender
Female
Discharge Standard
NPT
Flow Rate @ 10 Ft. of Head
19.85 gpm
Rated Voltage
115V AC
Flow Rate @ 5 Ft. of Head
23.25 gpm
Rotation Speed - Maximum
3,450 RPM
Shaft Seal Material
Fluoroelastomer
Flow Rate @ 5 ft of Head
23.3 gpm
Flow Rate - Maximum
25 gpm
Feet of Head - Maximum
26 ft
Frequency
60 Hz
Liquid Temperature - Maximum
86 Degrees F
Motor Housing Material
Aluminum
Includes Garden Hose Adapter
No Garden Hose Adapter Included
Horsepower
1/6 hp
Current
2.00 A
Flow Rate @ 10 ft of Head
19.9 gpm
For Media Type
Clear Water
Standards
cULus
Volute Material
Nylon

Description

The LITTLE GIANT PUMP 505723 is a corded, plug-in utility pump from the 5-MSP series for clear water removal, transfer, and circulation in residential and light commercial applications. It has a 1/6 hp continuous-duty motor, a maximum flow rate of 25 gpm (1500 gph), and a maximum head of 26 ft. The pump is fully submersible and uses a cast aluminum body with nylon impeller and volute components.

Key Features:

  • Continuous duty: Rated for ongoing operation where extended run time is needed.
  • Flow performance: Delivers up to 25 gpm, with 23.3 gpm at 5 ft. of head, 19.9 gpm at 10 ft., and 8.8 gpm at 20 ft.
  • Low water removal: Pumps down to 1/16 in minimum depth and operates in as little as 1/2 in of water.
  • Discharge connection: 1 in FNPT discharge; listed with 3/4 in GHT included.
  • Motor and power: 115V AC, single-phase, 60 Hz motor drawing 2.00 A and operating at 3,450 RPM.
  • Construction: Cast aluminum body and motor housing with a nylon impeller and volute.
  • Media handling: Intended for clear water with solids up to 1/16 in diameter.
  • Cord length: 10 ft power cord for plug-in operation.
  • Size: Measures 8 1/8 in high, 6 1/8 in wide, with a 4 3/8 in body diameter.
  • Switch configuration: No switch included.
  • Listing: cULus.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
