Shop LITTLE GIANT PUMP

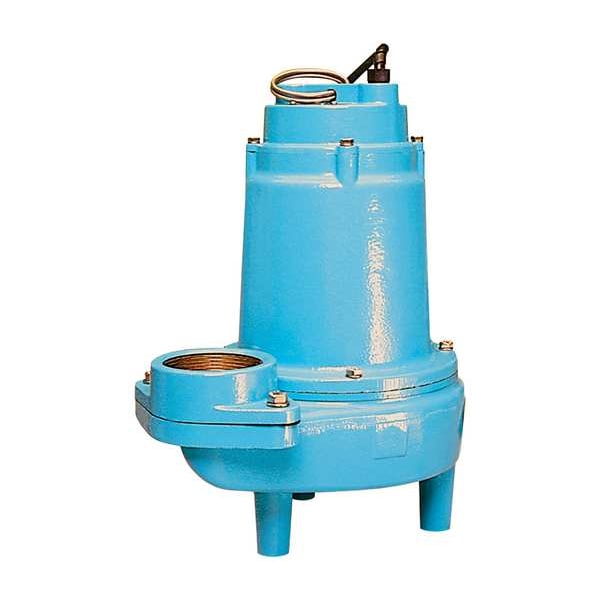

Sewage Ejector Pump, 40 ft, 1hp, Single, 230V AC

  • Mfr # 514630

  • Zoro # G301977190

product price:  $1,276.99
/ea
Free Shipping & Returns

Key Features

HP
1
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
160 gpm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
514630
Zoro #
G301977190
UPC #
0010121146303
Country of Origin
Mexico

Dimensions

Max. Diameter Solids
2 in
Manufacturers Warranty Length
3 yr
Min. Sump Pit Dia.
18 in
Cord Length
40 ft
Overall Height
17 1/4 in
Width at Widest Point
14 1/8 in
Discharge Dia.
3 in
Body Dia.
9 89/100 in
Solids Diameter - Maximum
2 in
Sump Pit Diameter - Minimum
18 in
Body Diameter
9 7/8 in
Discharge Diameter
3 in

Details

HP
1
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
160 gpm
Max. Head
35 ft
Impeller Material
Cast Iron
Discharge
3 in FNPT
Amps
11 A
Discharge Standard
NPT
Motor Type
Permanent Split Capacitor
Hz
60 Hz
Flow Rate @ 20 Ft. of Head
100 gpm
Discharge Gender
Female
Gauge/Conductor
16/3
Duty Cycle
Continuous
Max. Liquid Temp.
140 Degrees F
Agency Compliance
cCSAus Listed
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile Rubber
Switch Electrical Connection
No Switch Included
Phase
Single
Series
16S-CIM
Item
Sewage Ejector Pump
Thermal Protection
Auto
RPM
1,625 RPM
Flow Rate @ 15 Ft. of Head
130 gpm
Rated Voltage
230V AC
Standards
cCSAus Listed
Feet of Head - Maximum
35 ft
Motor Housing Material
Cast Iron
Frequency
60 Hz
Volute Material
Cast Iron
For Media Type
Sewage Water
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Horsepower
1 hp
Power Source
Corded Electric
Liquid Temperature - Maximum
140 Degrees F
Current
11.00 A
Requires Control Panel
No Control Panel Required
Flow Rate @ 10 ft of Head
160 gpm
Rotation Speed - Maximum
1,625 RPM
Discharge Orientation
Vertical
Impeller Design
Non-Clog
Motor Design
Permanent Split Capacitor
Shaft Seal Type
Single Mechanical
Application
Dewatering, Transfer, Waste Removal
Installation
Submersible
Power Source - TS Only
Corded Electric

Description

Sewage Ejector Pump, HP 1, Rated Voltage 230V AC, Hz 60 Hz, Phase - Pumps 1, Amps 11 A, Motor Type Permanent Split Capacitor, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile Rubber, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 10 Ft. of Head 160 gpm, Flow Rate @ 15 Ft. of Head 130 gpm, Flow Rate @ 20 Ft. of Head 100 gpm
