Shop LITTLE GIANT PUMP

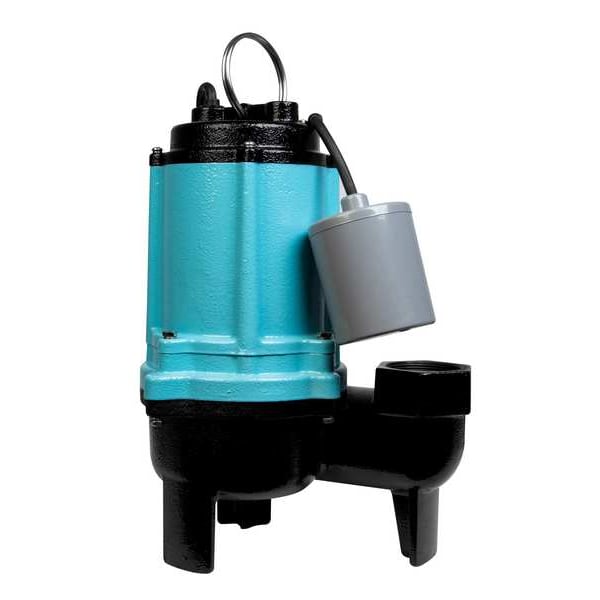

SewageEjectorPump, 20ft, 0.5hp, 115VAC

  • Mfr # 511433

  • Zoro # G501968820

product price:
$
505.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Phase - Pumps
1
Switch Actuation
Piggyback Mechanical Float Switch
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
100 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
511433
Zoro #
G501968820
UPC #
0010121002913
Country of Origin
China

Dimensions

Max. Diameter Solids
2 in
Min. Sump Pit Dia.
18 in
Manufacturers Warranty Length
3 yr
Cord Length
20 ft
Body Dia.
8 3/5 in
Width at Widest Point
10 1/2 in
Overall Height
14 in
Solids Diameter - Maximum
2 in
Body Diameter
8 5/8 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
2 in

Details

HP
1/2
Phase - Pumps
1
Switch Actuation
Piggyback Mechanical Float Switch
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
100 gpm
Max. Head
25 ft
Impeller Material
Nylon
Phase
Single
Item
Sewage Ejector Pump
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile
Thermal Protection
Auto
Amps
11 A
Hz
60 Hz
Agency Compliance
cCSAus Listed
Max. Liquid Temp.
140 Degrees F
Motor Type
Permanent Split Capacitor
Gauge/Conductor
16/3
Discharge
2 in FNPT
Rated Voltage
115V AC
Switch Electrical Connection
Piggyback
Flow Rate @ 20 Ft. of Head
44 gpm
Duty Cycle
Continuous
RPM
3,450 RPM
Flow Rate @ 15 Ft. of Head
80 gpm
Series
10SC-CIA-RF
Rotation Speed - Maximum
3,450 RPM
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Frequency
60 Hz
Current
11 A
Flow Rate @ 10 ft of Head
100 gpm
Horsepower
1/2 hp
Liquid Temperature - Maximum
140 Degrees F
Standards
cCSAus Listed
Feet of Head - Maximum
25 ft
Application
Dewatering, Transfer, Waste Removal
Discharge Orientation
Vertical
Requires Control Panel
No Control Panel Required
For Media Type
Sewage Water
On Point
19 in
Shaft Seal Type
Single Mechanical
Motor Design
Permanent Split Capacitor
Impeller Design
Vortex
Off Point
9 in
Power Source
Corded Electric
Motor Housing Material
Cast Iron
Volute Material
Cast Iron
Installation
Submersible
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Sewage Ejector Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Amps 11 A, Motor Type Permanent Split Capacitor, Body Material Cast Iron, Impeller Material Nylon, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, On Point 19 in, Off Point 9 in, Flow Rate @ 10 Ft. of Head 100 gpm, Flow Rate @ 15 Ft. of Head 80 gpm, Flow Rate @ 20 Ft. of Head 44 gpm, Max. Diameter Solids 2 in, Min. Sump Pit Dia. 18 in
