Shop DAYTON

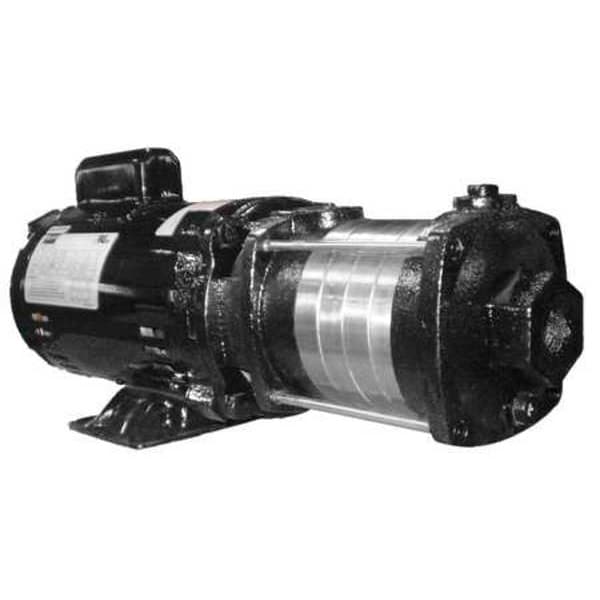

Booster Pump, 3/4 hp, 120/240V AC, 1 Phase, 3/4 in NPT Inlet Size, 5 Stage, 93 psi Max Pressure

  • Mfr # 5UXF5

  • Zoro # G2626827

product price:  $745.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
3/4 hp
Voltage - Pumps
120/240V AC
Phase - Pumps
1
Inlet Size - Pumps
3/4 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5UXF5
Zoro #
G2626827
UPC #
190735353042
Country of Origin
India

Dimensions

Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
Width
6 1/2 in
Manufacturers Warranty Length
1 yr
Length
18 11/16 in
Max. Dia. Solids
5/64 in
Height
6 5/16 in
Overall Width
6.5 in
Overall Height
6.31 in
Overall Length
18.69 in
Solid Diameter (Maximum)
0.07 in
Compatible Discharge Pipe Size
3/4 in
Intake Size
3/4 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
3/4 in
Solids Diameter - Maximum
0.07 in
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in

Details

Item
Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
3/4 hp
Voltage - Pumps
120/240V AC
Phase - Pumps
1
Number of Stages - Pumps
5
Max. Pressure - Pumps
93 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Open Dripproof
Stages
5
Motor Type
Capacitor-Start
Motor Ambient Temp. Rating
40 Degrees C
Motor Enclosure
Open Dripproof (ODP)
Phase
Single
Includes
Manual
Suction Lift
5 ft with a Foot Valve
Bearing Type
Ball
GPM @ 40 PSI
17.5
Seal Material
Buna-N/Carbon/Ceramic/Stainless Steel
Pump Mounting Position
Horizontal or Vertical with Inlet Down
GPM @ 60 PSI
13.5
Impeller Type
Closed
Inlet
3/4" FNPT
Agency Compliance
c UL us
GPM @ 10 PSI
20
Wetted Materials
Buna N, Carbon/Ceramic, Cast Iron, Stainless Steel
Housing Material
Cast iron
Max. Pressure
93 psi
Max. Case Pressure
150 psi
Motor RPM
3,450 RPM
Hz
60
GPM @ 80 PSI
7
Best Efficiency GPM @ PSI
12 @ 64
GPM @ 20 PSI
19.5
Voltage
115/230
Max. Liquid Temp.
194 Degrees F
Duty
Continuous
Outlet
3/4" FNPT
Amps
11.3/5.6 A
HP
3/4
Frame
56J
Impeller Material
Cast Iron
Standards
cULus Listed
Flow Rate @ 20 psi
19.5 gpm
Nameplate Voltage
115/230V AC
Intake Type
NPT
Priming
Manual
Compatible with Media Type
Non-Flammable Liquids, Water
Motor Frame Designation
56J NEMA
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Pump Housing Material
Cast Iron
Duty Cycle
Continuous
Flow Rate @ 10 psi
20 gpm
Flow Rate @ 50 psi
15.7 gpm
Maximum Media Temperature
194 Degrees F
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Flow Rate @ 40 psi
17.5 gpm
Flow Rate @ 70 psi
10.5 gpm
Shut Off Pressure (Maximum)
93 psi
Flow Rate @ 80 psi
7 gpm
Best Efficiency Pressure
64 psi
Case Pressure (Maximum)
150 psi
Discharge Type
NPT
Horsepower
3/4 hp
Motor Ambient Temperature (Minimum)
40 Degrees F
Mounting Orientation
Horizontal
Flow Rate @ 60 psi
13.5 gpm
Impeller Design
Closed
For Use With Potable Systems
No
Motor Ambient Temperature (Maximum)
104 Degrees F
Suction Lift (Maximum)
5 ft
Flow Rate @ 90 psi
2 gpm
Maximum RPM
3,450 RPM
Flow Rate @ 30 psi
18.6 gpm
Frequency
60 Hz
Number of Stages
5
Suction Lift - Maximum
5 ft
Inlet Gender
Female
Case Pressure - Maximum
150 psi
Motor Ambient Temperature - Maximum
104 Degrees F
Motor Ambient Temperature - Minimum
40 Degrees F
Discharge Standard
NPT
Shut Off Pressure - Maximum
93 psi
Media Temperature - Minimum
0 Degrees F
Motor Enclosure Design
Open Drip Proof
Inlet Standard
NPT
Media Temperature - Maximum
194 Degrees F
Best Efficiency Flow
10 gpm
Pump Casing Material
Cast Iron
Full Load Current
11.3/5.6 A
Power Source
Corded Electric
Revolutions Per Minute - Maximum
3,450 RPM
Installation
Floor Standing
Motor Design
Capacitor-Start
Feet of Head - Maximum
215 ft
Flow Rate - Maximum
20 gpm
Power Source - TS Only
Corded Electric

Description

Booster Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 3/4 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 10 psi 20 gpm, Flow Rate @ 20 psi 19.5 gpm, Flow Rate @ 30 psi 18.6 gpm, Flow Rate @ 40 psi 17.5 gpm, Flow Rate @ 50 psi 15.7 gpm, Flow Rate @ 60 psi 13.5 gpm, Flow Rate @ 70 psi 10.5 gpm, Flow Rate @ 80 psi 7 gpm, Flow Rate @ 90 psi 2 gpm, Shut Off Pressure (Maximum) 93 psi, Compatible Intake Pipe Size 3/4 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
