  9. SubmersibleSumpPump, 25ft, 6in, 115VAC

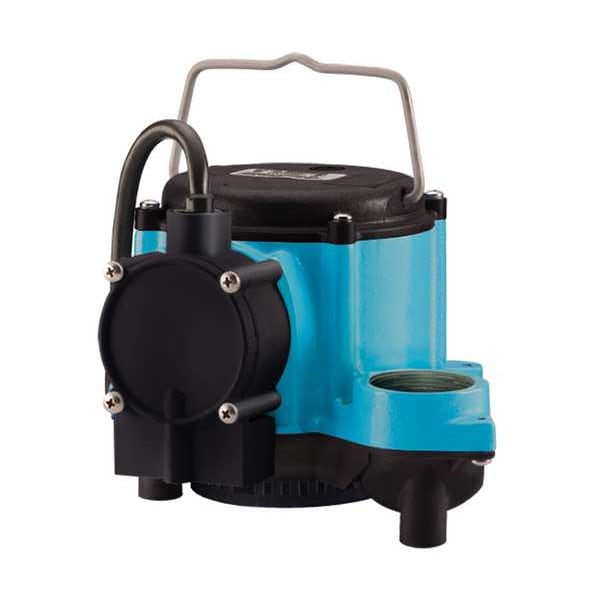

Little Giant Pump SubmersibleSumpPump, 25ft, 6in, 115VAC 506125 - main

SubmersibleSumpPump, 25ft, 6in, 115VAC

  • Mfr # 506125

  • Zoro # G101968855

product price: $245.99
/ea
Free Shipping & Returns

Key Features

Cord Length
25 ft
HP
1/3
Impeller Material
Nylon
Max. Head
18 ft
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
506125
Zoro #
G101968855
UPC #
0010121061255
Country of Origin
Mexico

Dimensions

Cord Length
25 ft
Min. Sump Pit Dia.
12 in
Manufacturers Warranty Length
3 yr
Solids Diameter - Maximum
0 in
Width at Widest Point
9 1/2 in
Body Diameter
7 1/2 in
Overall Height
6 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in

Details

HP
1/3
Impeller Material
Nylon
Max. Head
18 ft
Phase
Single
Agency Compliance
cCSAus Listed
Thermal Protection
Auto
Off Point
1 - 4 in
Application
Dewatering, Transfer
On Point
7 - 10 in
Gauge/Conductor
18/3
Base Material
Polypropylene
Item
Submersible Sump Pump
NEC Cord Designation
SJTW
Flow Rate @ 10 Ft. of Head
29 gpm
Body Material
Cast Iron
Switch Electrical Connection
Integral
Switch Actuation
Diaphragm
Rated Voltage
115V AC
Series
6-CIA
Flow Rate @ 10 ft of Head
29 gpm
Includes Alarm
No Alarm Included
Duty Cycle
Continuous
Current
9.0 A
Volute Material
Plastic
Motor Housing Material
Cast Iron
Liquid Temperature - Maximum
140 Degrees F
Standards
cCSAus
Installation
Submersible
Frequency
60 Hz
For Media Type
Clear Water
Impeller Design
Non-Clog
Shaft Seal Material
Ceramic/Nitrile Rubber
Operation
Automatic
Requires Control Panel
No Control Panel Required
For Industry
Residential
Shaft Seal Type
Single Mechanical
Hazardous Location Class
Not Rated
Discharge Gender
Female
Feet of Head - Maximum
18 ft
Discharge Standard
NPT
Power Source
Corded Electric
Horsepower
1/3 hp
Rotation Speed - Maximum
1,500 RPM

Description

Submersible Sump Pump, HP 1/3, Rated Voltage 115V AC, Switch Actuation Diaphragm, Switch Electrical Connection Integral, Off Point 1 - 4 in, On Point 7 - 10 in, Body Material Cast Iron, Impeller Material Nylon, Flow Rate @ 10 Ft. of Head 29 gpm, Max. Head 18 ft, Min. Sump Pit Dia. 12 in, Overall Height 6 in, Thermal Protection Auto, Width at Widest Point 9 1/2 in, Duty Cycle Continuous, Cord Length 25 ft, NEC Cord Designation SJTW, Gauge/Conductor 18/3, Agency Compliance cCSAus Listed
