Shop ZOELLER

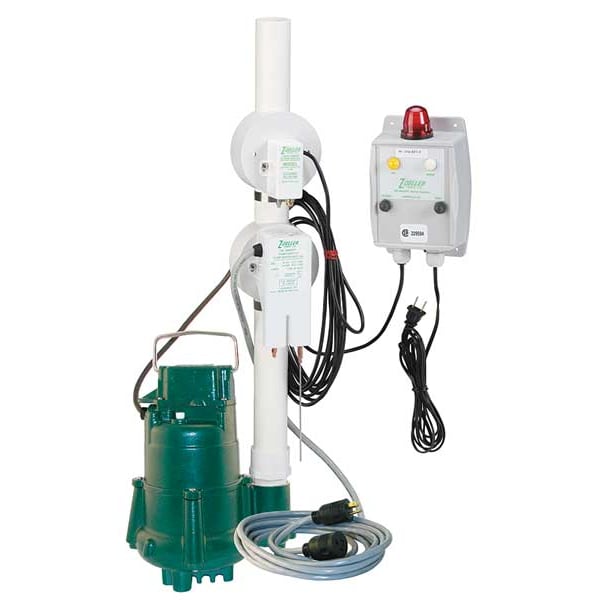

4/10 HP 1-1/2" Elevator Sump Pump 115V Piggyback

  • Mfr # 940-0006

  • Zoro # G1701664

product price:
$
2,673.99
/ea
Free Shipping & Returns

Key Features

Cord Length
20 ft
Discharge NPT
1-1/2"
Housing Material
Cast iron
HP
4/10
Hz
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
940-0006
Zoro #
G1701664
UPC #
053514264604
Country of Origin
United States
Discharge NPT
1-1/2"
Housing Material
Cast iron
HP
4/10
Hz
60
Impeller Material
Polypropylene
Includes
Alarm Panel and Pump Switch
Max. Head
38.0 ft
Motor RPM
3450
Motor Type
Permanent Split Capacitor
Shaft Seal
Carbon Ceramic
Voltage
115V
Phase
1
Amps - Pumps
8.50
GPM of Water @ 35 Ft. of Head
8
Handle
yes
Item - Sump Pumps
Elevator Sump Pump with Oil Sensor
Alarm Output - Pumps
Audible, Dry Contact Remote Terminal, Visual
Agency Compliance
CSA/UL
Thermal Protection
Yes
Alarm Duration
Continuous
Switch Type - Pumps
Piggyback Float
Alarm Output
Audible, Dry Contact Remote Terminal, Visual
Off Point
18-1/8 in
Pump RPM
3450
Max. Head - Pumps
38 ft.
Base Material
Cast Iron
Check Valve
Not included
Application
Elevator Sumps, Transformer Vaults and Commercial Applications
GPM of Water @ 25 Ft. of Head
34
Item
Elevator Sump Pump
GPM of Water @ 5 Ft. of Head
69
Voltage - Pumps
120VAC
GPM of Water @ 15 Ft. of Head
53
Shaft Seal Material - Pumps
Carbon, Ceramic
Alarm Included
Yes
Impeller Material - Pumps
Glass Filled Polypropylene
Input Phase AC
1
Duty
Continuous
GPM of Water @ 30 Ft. of Head
23
Switch Type
Piggyback
Amps
8.5 A
Pump HP
4/10
GPM of Water @ 20 Ft. of Head
44
Housing
Cast Iron
On Point
12 1/8 in
Max. Liquid Temp.
130 Degrees F
Pump Body Material
Cast Iron
Alarm Duration - Pumps
Continuous
Alarm
Audio 71 db Visual
Features
Sensors Have a Preset On/Off Range of 6" but Level of Where Sensors Go is Adjustable
Bearing Type
Upper Sleeve/Lower Ball
GPM of Water @ 10 Ft. of Head
61
RPM
3,450 RPM
Flow Rate @ 10 Ft. of Head
61 gpm
Discharge Gender
Female
Switch Electrical Connection
Piggyback
Discharge
1-1/2 in FNPT
Flow Rate @ 30 Ft. of Head
23.0 gpm
Body Material
Cast Iron
Switch Actuation
Oil Probe Sensor
Flow Rate @ 20 Ft. of Head
44.0 gpm
Duty Cycle
Continuous
Discharge Standard
NPT
Rated Voltage
115V AC
Rotation Speed - Maximum
3,450 RPM
Horsepower
2/5 hp
Liquid Temperature - Maximum
130 Degrees F
Frequency
60 Hz
Standards
CSA/UL
Feet of Head - Maximum
38 ft
Flow Rate @ 10 ft of Head
61 gpm
Volute Material
Cast Iron
Includes Alarm
Alarm Included
Shaft Seal Material
Carbon/Ceramic
Power Source
Corded Electric
Current
8.5 A
Motor Housing Material
Cast Iron
For Media Type
Clear Water, Hydraulic Oil
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Elevator Sump Pump, HP 4/10, Rated Voltage 115V AC, Hz 60, Amps 8.5 A, Flow Rate @ 10 Ft. of Head 61 gpm, Flow Rate @ 20 Ft. of Head 44.0 gpm, Flow Rate @ 30 Ft. of Head 23.0 gpm, Max. Head 38.0 ft, Switch Actuation Oil Probe Sensor, Switch Electrical Connection Piggyback, Off Point 18-1/8 in, On Point 12 1/8 in, Body Material Cast Iron, Impeller Material Polypropylene, Shaft Seal Material - Pumps Carbon, Ceramic, Min. Sump Pit Dia. 18 in, Minimum Water Depth 14 in
