  9. Rotary Barrel Pump, 55gal, 1:18 Pump Ratio

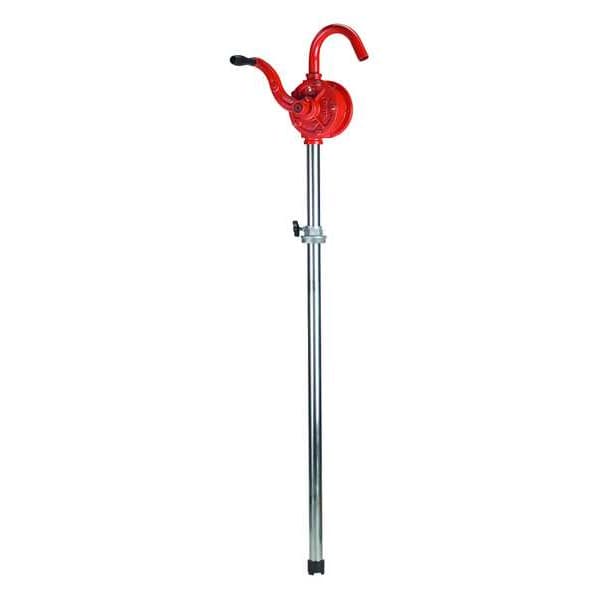

Lubrimatic Rotary Barrel Pump, 55gal, 1:18 Pump Ratio 55-303 - main

Rotary Barrel Pump, 55gal, 1:18 Pump Ratio

  • Mfr # 55-303

  • Zoro # G1824737

product price: $91.99
/ea
Free Shipping & Returns

Key Features

Action Type
Rotary
For Media Type
Hydraulic Oil, Motor Oil
For Container Size
30 gal, 55 gal
Max. Flow Rate
7 oz per stroke
Diesel Exhaust Fluid Compatible
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
55-303
Zoro #
G1824737
UPC #
-
Country of Origin
China

Dimensions

For Container Size
30 gal, 55 gal
Suction Tube Length
42 in
Spout Connection Size
3/4 in
Spout Length
11 in
Height Above Container
18 in
Bung Connection Dia.
2 in

Details

Item
Hand Operated Drum Pump
Action Type
Rotary
For Media Type
Hydraulic Oil, Motor Oil
Max. Flow Rate
7 oz per stroke
Diesel Exhaust Fluid Compatible
No
Wetted Materials
Cast Iron, Plated Steel
Includes Suction Tube
Yes
For Use With
Non-Corrosive Petroleum Based Fluids of Light to Medium Viscosity
Discharge Tube Outlet ID
7/8 in
Discharge Tube Outlet OD
1 1/8 in
Pump Ratio
1:18
Ounces per Stroke
7 oz.
Type
Single Direction
Features
42 in Steel Suction Pipe
Adapter Material
Aluminum
Suction Tube Material
Steel
Self-Priming
Yes
Metered
No
Suction Tube ID
1 1/8 in
Power Source
Hand Operated
Discharge Connection Type
FNPT
Max. Oil Flow
7 oz per stroke
For Container Type
Drum
Includes Nozzle
No
Housing Material - Pumps
Cast Iron
Duty Cycle
Continuous
Includes Spout
Yes
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Antifreeze (Coolant), Biodiesel, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethylene Glycol, Formic Acid, Fresh Water, Gasoline, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lithium Grease, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Salt Water, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Windshield Washer Fluid
Compatible Chemicals
Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil
Includes Bung Adapter
Yes
Suction Tube OD
1 1/4 in
Food Grade
No
Spout Material
Steel
Runs Dry
Yes
Includes Discharge Hose
No
Adapter Connection Type
MNPT
Gear Lube
NT

Description

Hand Pump, Spout Connection Size 3/4 in, Self-Priming Yes, Metered No, Hose Length Not Applicable, Includes Discharge Hose Yes, Piston Material Cast Iron, Features 42 in Steel Suction Pipe, Housing Finish Sand Blasted, Seal Material Buna-N, For Use With Non-Corrosive Petroleum Based Fluids of Light to Medium Viscosity, Adapter Connection Type MNPT, Discharge Connection Type FNPT, For Container Type Drum, Hose Cover Material Not Applicable, Includes Bung Adapter Yes, Includes Nozzle No
