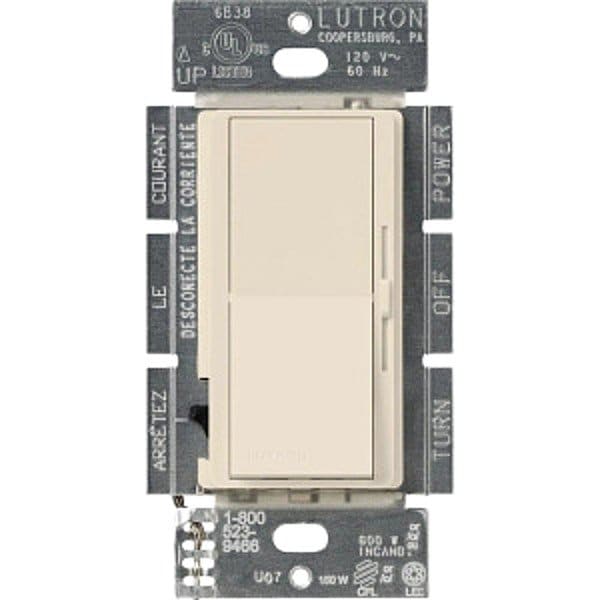

Lutron Lighting Dimmer, Decora Rocker, Lgt Almond DVCL-253P-LA - main

Lighting Dimmer, Decora Rocker, Lgt Almond

  • Mfr # DVCL-253P-LA

  • Zoro # G9753947

product price: $55.61
/ea

Key Features

Item - Motion Sensing and Dimming
Lighting Dimmer
Switch Style - Motion Sensing and Dimming
Concealed with On/Off Rocker
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DVCL-253P-LA
Zoro #
G9753947
UPC #
784276092036
Country of Origin
Mexico

Dimensions

Wall Box Size
Single Gang
Overall Height
4.69 in
Overall Depth
0.3 in
Overall Width
2.94 in

Details

Item - Motion Sensing and Dimming
Lighting Dimmer
Switch Style - Motion Sensing and Dimming
Concealed with On/Off Rocker
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
Max. Capacity @ 120VAC
250 W (CFL, LED), 600 W (Incandescent, Halogen)
Color - Motion Sensing and Dimming
Light Almond
Color
Light Almond
Item
Lighting Dimmer
Switch Type
1-Pole, 3-Way
Standards
CSA Certified, UL Listed
Installation Location - Motion Sensor
Wall Switch Box
Voltage
120V AC
Style
Decora Rocker
Description/Special Features
For Indoor Use Only, HED(TM) Technology That Dims Circuitry Designed for Compatibility with Most High Efficacy Light Bulbs
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Wall Plate
Not included
Max. Capacity
250W (CFL/LED), 600W (Incandescent/Halogen)
Lamp Type
CFL, LED, Halogen, Incandescent
Switch Style
Rocker On/Off, Mini-Slide Dimming
Ballast Type
Compact Fluorescent Ballast, Hi-lume LED Driver
Includes Wall Plate
Wall Plate Not Included
Load Rating @ 120V AC
250W (CFL, LED), 600W (Incandescent, Halogen)
Rated Frequency
60 Hz
Neutral Required
No
Dimming Method
Line Voltage
Dimming Type
Full Continuous Dimming
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
Series
Diva
Compatible with Series
Claro
Number of Switches
1
Application Type
Single-Pole or 3-Way
Maximum Wattage
250W for Dimmable CFL/LED bulbs; 600W for Incandescents/Halogens
Bulb Compatibility
Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens
Coordinating Wallplates
Single Gang Wallplate CW-1-XX (Gloss); SC-1-XX (Satin) 2-Gang Wallplate CW-2-XX (Gloss); SC-2-XX (Satin)
Operating Voltage
120V AC

Description

Lighting Dimmer, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Switch Type 1-Pole, 3-Way, Operating Voltage 120V AC, Load Rating @ 120V AC 250W (CFL, LED), 600W (Incandescent, Halogen), Switch Style Rocker On/Off, Mini-Slide Dimming, Neutral Required No, Color Light Almond, Load Rating @ 277V AC Not Applicable, Dimming Method Line Voltage, Dimming Type Full Continuous Dimming, Includes Wall Plate Wall Plate Not Included, Series Diva, Number of Gangs 1, Compatible with Series Claro
