  11. Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED

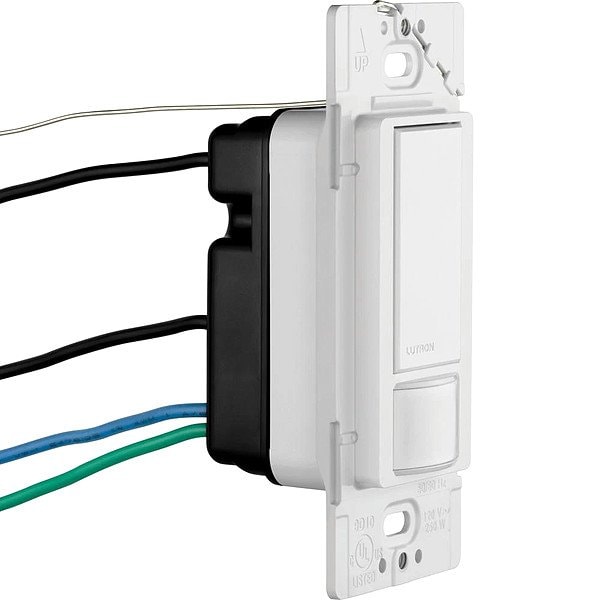

Lutron Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED MS-OPS5M-WH - main

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED

  • Mfr # MS-OPS5M-WH

  • Zoro # G4711332

product price: $34.25
/ea

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Standards
NOM, UL Listed
Time Delay
Adjustable
Viewing Angle
180 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS-OPS5M-WH
Zoro #
G4711332
UPC #
027557983570
Country of Origin
Multiple

Dimensions

Overall Width
2.94 in
Overall Depth
0.31 in
Overall Height
4.69 in
Maximum Mounting Height
4 ft

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Standards
NOM, UL Listed
Time Delay
Adjustable
Viewing Angle
180 Degrees
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Coverage Angle - Motion Sensor
180 Degrees
For Use With
Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent, and Electronic Fluorescent
Sensor Type
Passive Infrared
Includes
Wire Nuts
Item
Occupancy Sensor
Watts @ 120V
600
Color
White
Max. Capacity @ 120VAC
3.0A (Fan Motor), 5A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Communication Method
Hard Wired
Number of Gangs
1
Time Delay Adjustment Method
Adaptive
Includes Wall Plate
Wall Plate Not Included
Manufacturer Warranty
5 yr
Includes Dimming Switch
Dimming Switch Not Included
Load Rating @ 120V AC
3.0A, Fan, 5A, Lighting
Minimum Time Delay
1 min
Series
Maestro
Coverage Angle
180 Degrees
Sensor Operation
Occupancy, Photocell, Vacancy
Fan Rated
Yes
Maximum Detection Distance
30 ft
Maximum Operating Temperature
104 Degrees F
Nightlight
No
Compatible with Series
Universal
Maximum Coverage Area
900 sq ft
Minimum Coverage Area
400 sq ft
Includes Motion Sensor
Yes
Number of Buttons
1
Maximum Time Delay
30 min
Neutral Required
No
Minimum Operating Temperature
32 Degrees F
Rated Frequency
50/60 Hz
Installation Location
Wall Mount
Operating Voltage
120V AC

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Universal, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 3.0A (Fan), 5A (Lighting), Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
