Shop TELEMECANIQUE SENSORS

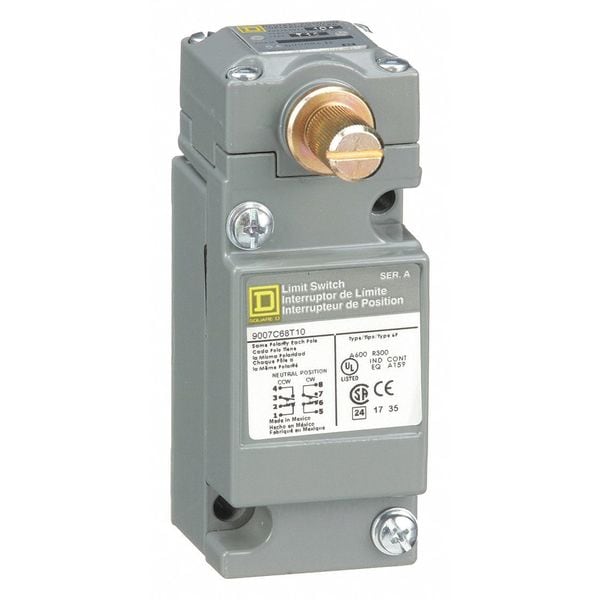

Limit Switch, Plug In, Rotary Head, 10 A at 600V AC, 2NO/2NC, No Actuator Included

  • Mfr # 9007C68T10

  • Zoro # G1939743

product price:  $239.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9007C68T10
Zoro #
G1939743
UPC #
785901812098
Country of Origin
Mexico

Dimensions

Body Width - Limit Switch
0.83 in
Body Height - Limit Switch
2.5 in
Body Depth - Limit Switch
1.14 in
Height
4.02"
Width
1.55"
Depth
1.79"
Mounting Hole Diameter
0.2 in
Overall Height
4.02 in
Body Depth
1.14 in
Body Width
0.83 in
Manufacturer Warranty Length
18 mo
Body Height
2.5 in
Overall Width
1.55 in
Overall Depth
2.5 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Contact Form
2NO/2NC
Contact Form - Limit Switch
2NC/2NO
Actuator Style
Rotary Head, No Lever
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Amps
10
Operating Force
4.0 in-lb
Travel
Total Travel 90 Degrees
Actuator Location
Side
Operating Temp. Range
-20 Degrees to 185 Degrees F
Wiring Entry
1/2 in NPT
Electrical Connection
Screw Terminal
Mounting Hole - Limit Switch
(2) 0.20 in dia
Boot Sealed Actuator - Limit Switch
No
Voltage Rating
600VAC/DC
Boot Sealed Actuator (Limit Switch)
No
Actuator Style (Limit Switch)
Rotary, No Lever
IP Rating
IP67
Actuator Location (Limit Switch)
Side
Basic Actuator Style (Limit Switch)
Rotary
DC Contact Rating
10 A @ 600 V
Movement
CCW, CW, Neutral
Body Material
Zinc
AC Contact Rating
10 A @ 600 V
Stem Thread - Limit Switch
No Stem
Limit Switch Style
Heavy Duty Limit Switch
Body Style (Limit Switch)
Miniature
Series
9007C
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Standards
C22-2-14-95, CE, CSA, EN 60947-1, EN 60947-5-1, IEC 60947, NEMA 250, UL Listed, UL 508
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Contact Material
silver contacts
Special Features
lateral approach, 2 directions
Head Material
zinc
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Contact Action
snap action
Min. Actuation Velocity Horizontal
90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Short Circuit Protection
10 A CC non-time delay
Head Type
rotary head
Electrical Durability
1000000 cycles
Weight
1.25 lb(US)
Mechanical Durability
10000000 cycles
Actuation Type
CW and CCW || from left and right
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included
Directional Movement
CCW/Center Neutral/CW
Total Travel
90 Degrees
Includes Actuator
No Actuator Included
Body Configuration
Plug-In
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Hole Horizontal Center to Center Distance
30 mm
Pretravel
10 Degrees
Operating Temperature - Maximum
185 Degrees F
Mounting Hole Vertical Center to Center Distance
60 mm
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Number of Mounting Holes
2
Operating Temperature - Minimum
-20 Degrees F
Operating Torque - Maximum
4 in-lb
Type Of Operator
zinc spring return without operating lever 9007C lever
Number Of Poles
2

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 2NC/2NO, Body Height - Limit Switch 2.5 in, Body Width - Limit Switch 0.83 in, Body Depth - Limit Switch 1.14 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Mounting - Limit Switch Surface
