  11. Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED

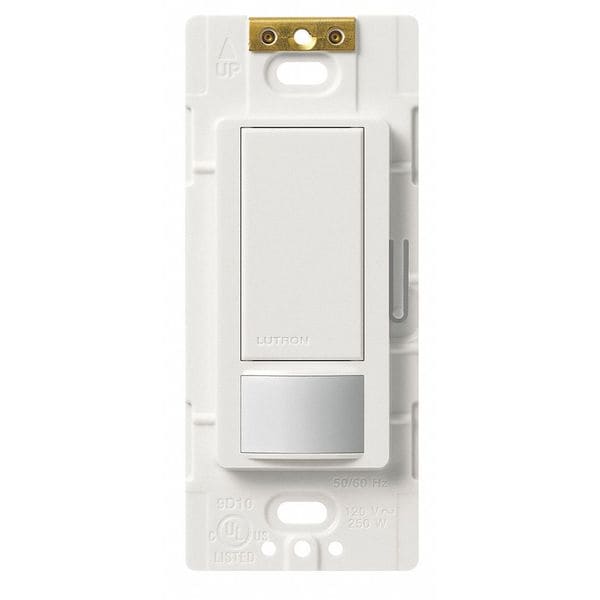

Lutron Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED MS-OPS6M2-DV-WH - main

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED

  • Mfr # MS-OPS6M2-DV-WH

  • Zoro # G4653065

product price: $43.59
/ea

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Sensor Type
Passive Infrared
Includes
Wire Nuts
Standards
NOM, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS-OPS6M2-DV-WH
Zoro #
G4653065
UPC #
027557984324
Country of Origin
Multiple

Dimensions

Overall Depth
0.31 in
Overall Width
2.94 in
Maximum Mounting Height
4 ft
Overall Height
4.69 in

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Sensor Type
Passive Infrared
Includes
Wire Nuts
Standards
NOM, UL Listed
Max. Capacity @ 120VAC
4.4A (Fan Motor), 6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
For Use With
Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent, and Electronic Fluorescent
Watts @ 120V
720
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Color
White
Time Delay
Adjustable
Description/Special Features
Single-Pole/Multi-Location, Auto-On/Auto-Off or Manual-On/Auto-Off, No Neutral Required, High-Low Sensitivity Adjustment, Crush/Tamper Resistant Lens
Viewing Angle
180 Degrees
Coverage Angle - Motion Sensor
180 Degrees
Watts @ 277V
1650
Item
Occupancy Sensor
Max. Capacity @ 277VAC
6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Communication Method
Hard Wired
Number of Gangs
1
Rated Frequency
50/60 Hz
Installation Location
Wall Mount
Manufacturer Warranty
5 yr
Sensor Operation
Occupancy, Photocell, Vacancy
Includes Wall Plate
Wall Plate Not Included
Maximum Operating Temperature
104 Degrees F
Compatible with Series
Universal
Fan Rated
Yes
Coverage Angle
180 Degrees
Maximum Coverage Area
900 sq ft
Minimum Operating Temperature
32 Degrees F
Load Rating @ 277V AC
6A (Lighting)
Maximum Detection Distance
30 ft
Neutral Required
No
Includes Dimming Switch
Dimming Switch Not Included
Includes Motion Sensor
Yes
Series
Maestro
Nightlight
No
Load Rating @ 120V AC
3A, Fan, 6A, Lighting
Minimum Time Delay
1 min
Number of Buttons
1
Time Delay Adjustment Method
Adaptive
Maximum Time Delay
30 min
Minimum Coverage Area
400 sq ft
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Universal, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 3A (Fan), 6A (Lighting), Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
