  13. Pump Seal Failure Relay, SPDT, 8Pin, 120VAC

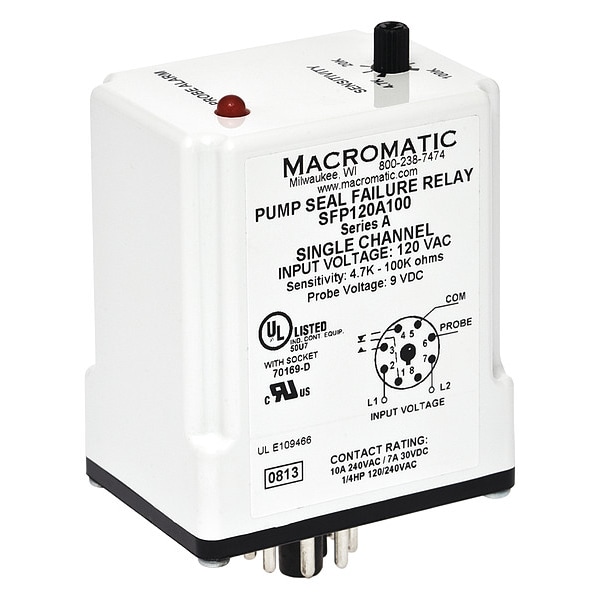

Macromatic Pump Seal Failure Relay, SPDT, 8Pin, 120VAC SFP120A100 - main

Pump Seal Failure Relay, SPDT, 8Pin, 120VAC

  • Mfr # SFP120A100

  • Zoro # G1233951

product price: $85.19
/ea
Free Shipping & Returns

Key Features

Voltage
120VAC
Max. Amps
10
Switch Type
SPDT
Contact Form
SPDT
Input Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SFP120A100
Zoro #
G1233951
UPC #
801262035232
Country of Origin
United States

Dimensions

Body Width
1.71 in
Body Depth
2.9 in
Body Height
2.33 in

Details

Voltage
120VAC
Max. Amps
10
Item
Pump Seal Failure Relay
Switch Type
SPDT
Contact Form
SPDT
Input Voltage
120V AC
For Use With
Submersible Pumps
Rated Voltage
120V AC
Socket Code
A
Current Rating
10 A
Features
Full Status Indication, Pulsed Probes, Automatic Reset when Fault Condition Clears
Status Indicator
LED Indicator
Mounting Style
Plug-In
Power Consumption
3 VA
Number of Pins
8
Seal Leak Minimum Resistance
4,700 ohm
Contact Rating (DC)
7 A @ 28V
Base Shape
Octal
Number of Channels
Single Channel
Response Time
1 sec
Minimum Operating Temperature
-18 Degrees F
Maximum Operating Temperature
149 Degrees F
Mechanical Operating Durability
10,000,000
Seal Leak Maximum Resistance
100,000 ohm
Burden
3 VA at 10 A
Operating Current
10 A at 240V AC (Resistive Load), 7 A at 28V DC (Resistive Load)
Contact Rating (AC)
10 A @ 240V
Relay Function
Seal Leakage
Frequency
50/60 Hz
Adjustment Method
Rotary Knob
Electrical Connection
8-Pin Terminal
Standards
CE, cULus, cURus, UL Listed
Coil Voltage
120V AC
Electrical Operating Durability
100,000

Description

Pump Seal Failure Relay, Contact Form SPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Input Voltage 120V AC, Number of Channels Single Channel, Number of Pins 8, Relay Function Seal Leakage, Seal Leak Minimum Resistance 4,700 ohm, Seal Leak Maximum Resistance 100,000 ohm, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 7 A @ 28V, Mounting Style Plug-In, Adjustment Method Rotary Knob, Base Shape Octal, Body Depth 2.9 in, Body Height 2.33 in
