  13. Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V AC/DC, DPDT

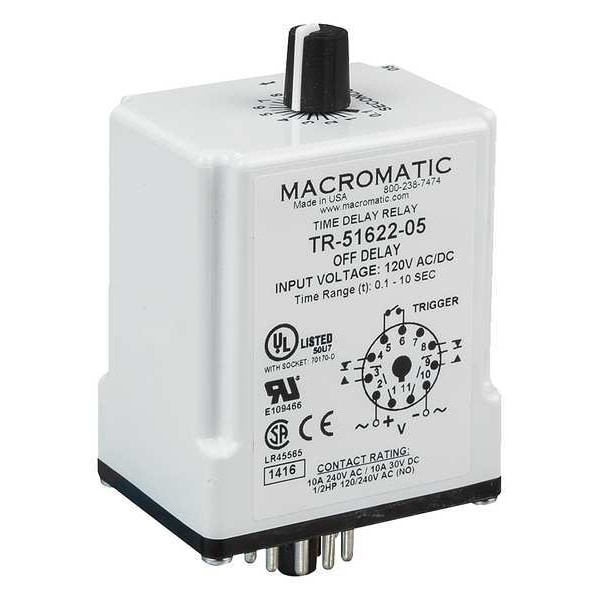

Macromatic Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V AC/DC, DPDT TR-51622-14 - main

CAD Viewer & Download Files

Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V AC/DC, DPDT

  • Mfr # TR-51622-14

  • Zoro # G5268033

CAD Available
product price: $38.79
/ea

Key Features

CAD Drawing
Delay Function
Off Delay
Number of Delay Functions
1
Minimum Time Setting
9 sec
Maximum Time Setting
15 min
Base Shape
Octal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TR-51622-14
Zoro #
G5268033
UPC #
801262083998
Country of Origin
United States

Dimensions

Overall Height - Relay
3.1 in
Body Width
2.3 in
Overall Depth
3.5 in
Body Height
1.7 in
Body Depth
2.9 in

Details

Item
Single Function Time Delay Relay
Delay Function
Off Delay
Number of Delay Functions
1
Minimum Time Setting
9 sec
Maximum Time Setting
15 min
Base Shape
Octal
Number of Pins
11
Coil Voltage
120V AC/DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 240V AC
Contact Rating (DC)
10 A @ 30V
Coil Rating
2VA
Operating Functions
2
Contact Amp Rating (Resistive)
10A
Contact Material
Silver Nickel
Standards
CE Certified, CSA Certified, UL Listed, UL Socket
Socket Code
A
Adjustment Method
Rotary Knob
Status Indicator
None
Socket
1EGP2, 1EGP4, 6X156
Electrical Connection
Socket
Input Voltage
120V AC/DC
Sealing
Enclosed
Reset Method
Time-Limit Reset
Minimum Operating Temperature
-18 Degrees F
Mechanical Operating Durability
10,000,000
Frequency
50/60 Hz
Mounting Style
Plug-In
Maximum Operating Temperature
122 Degrees F
Operating Time Accuracy
+0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Power Consumption
2 VA
Electrical Operating Durability
100,000
Adjustment Interface
Analog
IP Rating
IP20
Temperature
-28°to 65°C (-18°to 149°F)
Mount
Plug-in
Minimum Setting (Adjustable)
+0%, -50%.
Enclosure Style
Plug-in case utilizing industry-standard 8 or 11 pin octal sockets
Voltage Tolerance
AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal.
Timing Adjustment
Analog
Control Voltage
120V AC/DC
Timing Range
9 - 900 seconds
Maximum Setting (Adjustable)
+5%, -0%;
Repeat Accuracy (Constant Voltage & Temperature)
+1% or 50ms, whichever is greater
Output Contacts
10A @ 240V AC, 8A @ 28V DC, 1/2HP @ 240V AC, 1/4HP @ 120V AC, B300 & R300
Life
Mechanical: 2,000,000 operations; Full Load: 100,000 operations
Fixed
+2% or 100ms, whichever is greater
Load (Burden)
2 VA
Reset Time
0.1 Seconds
CAD Available
Yes

Description

Single Function Time Delay Relay, Adjustment Method Rotary Knob, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 9 sec, Maximum Time Setting 15 min, Number of Pins 11, Sealing Enclosed, Mounting Style Plug-In
