Shop TELEMECANIQUE SENSORS

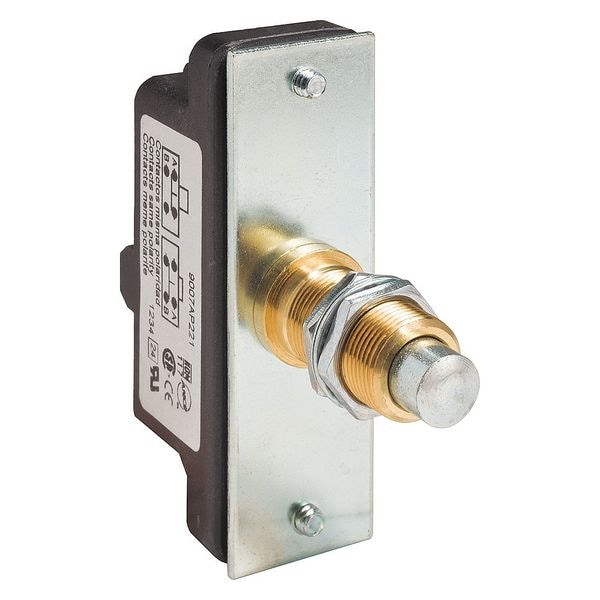

Limit Switch, Plunger, Spring Return, 1NC/1NO, 15A at 600V AC

  • Mfr # 9007AP221

  • Zoro # G8493493

product price:  $88.85
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Spring Return
Contact Form- Switches
1NC/1NO
AC Contact Rating - Limit Switch
15A @ 600V
Mounting - Limit Switch
panel mounting
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9007AP221
Zoro #
G8493493
UPC #
785901759324
Country of Origin
Mexico

Dimensions

Height - Snap Action Switch
2.2 in
Height
2.50"
Width - Snap Action Switch
2.5 in
Depth - Snap Action Switch
0.83 in
Mounting Dimension - Snap Action Switch
2.13 in Centers
Depth
1.32"
Width
0.83"
Body Height - Limit Switch
2.5 in
Body Depth - Limit Switch
2.2 in
Overall Height
2.5 in
Manufacturer Warranty Length
18 mo
Body Height
2.5 in
Body Width
0.83 in
Body Depth
2.2 in
Overall Depth
2.2 in
Overall Width
0.83 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Spring Return
Contact Form- Switches
1NC/1NO
AC Contact Rating - Limit Switch
15A @ 600V
Mounting - Limit Switch
panel mounting
Voltage Rating
600VAC
Travel
0.27"
Actuator Location
Top
Housing Material
Plastic
IP Rating
No IP Rating
Differential Travel
0.035 in to 0.046 in
Actuator Type - Snap Action Switch
Panel Mount, Plunger
Watertight - Snap Action Switch
No
DC Contact Rating - Snap Action Switch
0.1A at 600V
AC Contact Rating - Snap Action Switch
6A at 480V
Over Travel
0.015 in
DC Contact Rating
0.02 A @ 600 V, 0.2 A @ 250 V, 0.5 A @ 125 V
Wiring Entry
Screw Terminals
Series
9007AO/CO
Contact Form
1NO/1NC
Operating Temp. Range
0 Degrees to 185 Degrees F
Movement
Vertical
Number of Poles
1
Actuator Style
Plunger
Amps
15
Contact Form - Limit Switch
1NC/1NO
Body Material
Cast Zinc
Standards
C22-2-14, CE, CSA, UL Listed
Electrical Connection
Screw Terminal
NEMA Rating
Open Style
Max. Pretravel
0.089 in
Operating Force
10 to 14 oz
AC Contact Rating
10 A @ 240 V, 15 A @ 120 V, 5 A @ 600 V, 6 A @ 480 V
Electrical Connection - Snap Action Switch
Screw
Body Style (Limit Switch)
fixed
Special Features
vertical approach, 1 direction
Contact Material
silver contacts
Weight
0.1 lb(US)
Contact Action
snap action
Actuation Type
on end
Head Type
plunger head
Pretravel
0.09 in
Operating Force - Minimum
2.8 N
Center Mounting Hole Distance
2.13 in
Operating Temperature - Minimum
-20 Degrees F
Overtravel
0.015 in
Differential Travel - Maximum
0.046 in
Differential Travel - Minimum
0.035 in
Operating Temperature - Maximum
185 Degrees F
Operating Force - Maximum
3.91 N
Type Of Operator
spring return plunger metal bushing mounted
Pre-Travel - Linear
0.089 in
Over Travel - Linear
0.18 in
Mounting Hole Horizontal Center to Center Distance
54 mm

Description

Snap Action Switch, Panel Mount, Plunger, AC Contact Rating - Snap Action Switch 6 A @ 480 V, DC Contact Rating - Snap Action Switch 0.1 A @ 600 V, Contact Form- Switches 1NC/1NO, Height - Snap Action Switch 2.2 in, Width - Snap Action Switch 2.5 in, Depth - Snap Action Switch 0.83 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 2.13 in Centers
