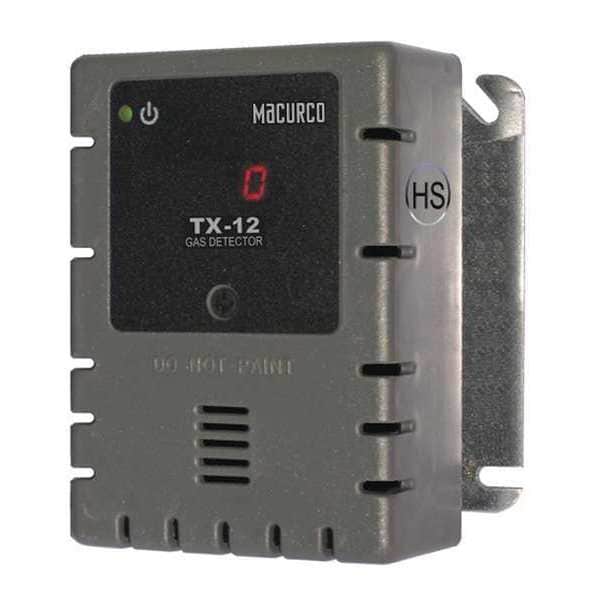

Macurco Fixed Gas Detector, H2S, 4-1/2in.Hx4in.W TX-12-HS - main

Fixed Gas Detector, H2S, 4-1/2in.Hx4in.W

  • Mfr # TX-12-HS

  • Zoro # G0461548

product price: $802.99
/ea
Free Shipping & Returns

Key Features

For Use With
Macurco Control Panel
Gas Detected
Hydrogen Sulfide
Chemical Formula
H2S
Sensor Range
0 to 50 ppm
Operating Temp. Range
0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TX-12-HS
Zoro #
G0461548
UPC #
783748834501
Country of Origin
United States

Dimensions

Depth
2 1/8 in
Height
4 1/2 in
Width
4 in
Overall Height
4.5 in
Manufacturer Warranty Length
2 yr
Overall Depth
4 in
Overall Width
2.12 in

Details

Item
Fixed Gas Detector
For Use With
Macurco Control Panel
Gas Detected
Hydrogen Sulfide
Chemical Formula
H2S
Sensor Range
0 to 50 ppm
Operating Temp. Range
0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)
Resolution
1 ppm
Features
0.5 A N.O. or N.C. Alarm Relay, 5 A SPDT Fan Control Relay, Selectable Fan and Alarm Relay Actuation Settings
Gas Type
H2S
Includes
Manual
Status Indicator
LED
Standards
cETLus Certified
Display
LED
Alarm Type
Audible and Visual
Power Required
100 to 240V AC (50 to 60 Hz)
Connection
Plugs/Terminals
Color
Gray
Number of Channels
2
IP Rating
Not Rated
Product Type
Stand-Alone Detector & Controller or Transducer
Market
Commercial
NEMA Enclosure Rating
Not Rated
Input Current
1.0 A
Interchangeable Sensors
Yes
Ties Into
Building Automation Panels, Fire Alarm Panels
Sensor Type
Electrochemical
Operating Frequency
50 to 60 Hz
Coverage Area
900 sq ft
For Environment
Hazardous Locations
Measurement Range
Hydrogen Sulfide (0 to 50 ppm)
Series
Commercial Series
Housing Color
Gray
Sensor Life
2 yr
Alarm Setting Adjustment
Adjustable Alarm Setting
Operating Humidity - Minimum
10 %
Alert Type
Internal Buzzer
Display Screen Type
LED
Sub-Brand
Macurco
Mount Type
Bolts/Screws
Output Type
SPDT Relay
Number of Relays
2
Operating Temperature - Minimum
-4 Degrees F
Power Source
Hardwired
Number of Gases Detected
1
Display Type
Digital
Operating Humidity - Maximum
90 %
Output Current
4 to 20 mA
Operating Temperature - Maximum
122 Degrees F
Visual Alert Type
Green LED
Output Channels
2
Number of Digits
3
Operating Voltage
100 to 240V AC
Voltage
100 to 240V AC

Description

Fixed Gas Detector, For Use With Macurco Control Panel, Gas Detected Hydrogen Sulfide, Standards cETLus Certified, Includes Manual, Product Type Stand-Alone Detector & Controller or Transducer, Mounting Location Wall, Number of Relays 2, Sensor Type Electrochemical, Visual Alert Type Green LED, Display Type Digital, Operating Temperature - Minimum -4 Degrees F, Operating Temperature - Maximum 122 Degrees F, Number of Gases Detected 1, Coverage Area 900 sq ft, Interchangeable Sensors Yes
