  11. Fixed Gas Detector, NH3, 4-1/2in.Hx4in.W

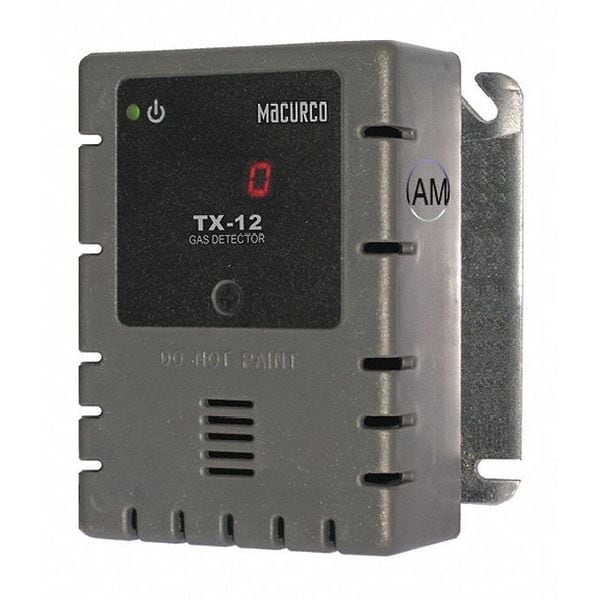

Macurco Fixed Gas Detector, NH3, 4-1/2in.Hx4in.W TX-12-AM - main

Fixed Gas Detector, NH3, 4-1/2in.Hx4in.W

  • Mfr # TX-12-AM

  • Zoro # G0461557

product price: $774.99
/ea
Free Shipping & Returns

Key Features

For Use With
Macurco Control Panel
Gas Detected
Ammonia
Chemical Formula
NH3
Sensor Range
0 to 100 ppm
Operating Temp. Range
0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TX-12-AM
Zoro #
G0461557
UPC #
783748831203
Country of Origin
United States

Dimensions

Depth
2 1/8 in
Width
4 in
Height
4 1/2 in
Overall Width
2.12 in
Manufacturer Warranty Length
2 yr
Overall Depth
4 in
Overall Height
4.5 in

Details

Item
Fixed Gas Detector
For Use With
Macurco Control Panel
Gas Detected
Ammonia
Chemical Formula
NH3
Sensor Range
0 to 100 ppm
Operating Temp. Range
0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)
Resolution
1 ppm
Features
0.5 A N.O. or N.C. Alarm Relay, 5 A SPDT Fan Control Relay, Selectable Fan and Alarm Relay Actuation Settings
Gas Type
NH3
Includes
Manual
Power Required
100 to 240V AC (50 to 60 Hz)
Connection
Plugs/Terminals
Color
Gray
Status Indicator
LED
Display
LED
Number of Channels
2
Alarm Type
Audible and Visual
Standards
cETLus Certified
IP Rating
Not Rated
Product Type
Stand-Alone Detector & Controller
Operating Temperature - Maximum
122 Degrees F
Input Current
1.0 A
Measurement Range
Ammonia (0 to 100 ppm)
Display Screen Type
LED
Operating Frequency
50 to 60 Hz
Output Current
4 to 20 mA
Operating Humidity - Minimum
10 %
Sensor Type
Electrochemical
Alert Type
Internal Buzzer
NEMA Enclosure Rating
Not Rated
Number of Digits
3
For Environment
Hazardous Locations
Alarm Setting Adjustment
Adjustable Alarm Setting
Coverage Area
900 sq ft
Output Type
SPDT Relay
Visual Alert Type
Green LED
Number of Gases Detected
1
Output Channels
2
Sensor Life
2 yr
Market
Commercial
Series
Commercial Series
Power Source
Hardwired
Ties Into
Building Automation Panels, Fire Alarm Panels
Number of Relays
2
Display Type
Digital
Sub-Brand
Macurco
Interchangeable Sensors
Yes
Operating Humidity - Maximum
90 %
Housing Color
Gray
Operating Temperature - Minimum
-4 Degrees F
Mount Type
Bolts/Screws
Operating Voltage
100 to 240V AC
Voltage
100 to 240V AC

Description

Fixed Gas Detector, For Use With Macurco Control Panel, Gas Detected Ammonia, Standards cETLus Certified, Includes Manual, Product Type Stand-Alone Detector & Controller, Mounting Location Wall, Number of Relays 2, Sensor Type Electrochemical, Visual Alert Type Green LED, Display Type Digital, Operating Temperature - Minimum -4 Degrees F, Operating Temperature - Maximum 122 Degrees F, Number of Gases Detected 1, Coverage Area 900 sq ft, Interchangeable Sensors Yes
