  11. Gas Detector, Carbon Monoxide, Audible and Visual Alarm, 9-32V DC, Residential/Light Commercial

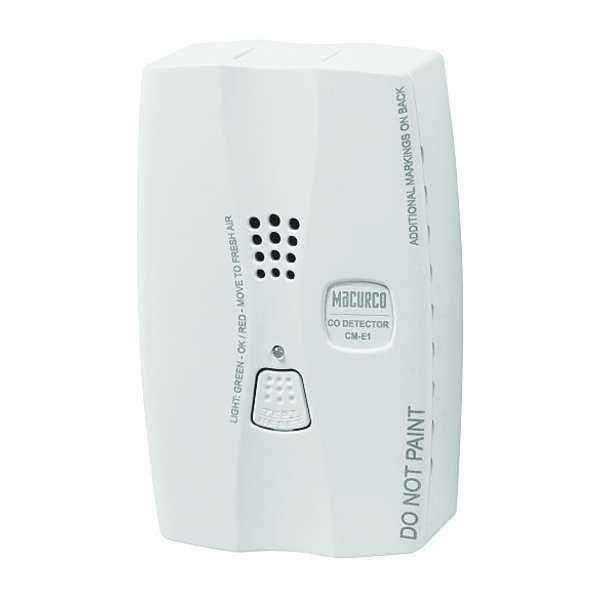

Macurco Gas Detector, Carbon Monoxide, Audible and Visual Alarm, 9-32V DC, Residential/Light Commercial CM-E1 - main

Gas Detector, Carbon Monoxide, Audible and Visual Alarm, 9-32V DC, Residential/Light Commercial

  • Mfr # CM-E1

  • Zoro # G9476582

product price: $81.19
/ea
Free Shipping & Returns

Key Features

For Use With
Fire and Security Systems
Gas Detected
Carbon Monoxide
Chemical Formula
CO
Sensor Range
0 to 400 ppm
Operating Temp. Range
40 Degrees to 100 Degrees F (4.4 Degrees to 37.8 Degrees C)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CM-E1
Zoro #
G9476582
UPC #
051131172876
Country of Origin
United States

Dimensions

Width
3 1/8 in
Height
5 1/8 in
Depth
3 1/8 in
Overall Height
5.12 in
Overall Width
3.12 in
Manufacturer Warranty Length
2 yr
Overall Depth
0.33 in

Details

Item
Fixed Gas Detector
For Use With
Fire and Security Systems
Gas Detected
Carbon Monoxide
Chemical Formula
CO
Sensor Range
0 to 400 ppm
Operating Temp. Range
40 Degrees to 100 Degrees F (4.4 Degrees to 37.8 Degrees C)
Features
N.C. Trouble/Supervisory Relay, N.O. or N.C. Alarm Relay, Optional Cm-E1-Iak Allows Easy Replacement of Earlier Macurco Models
Gas Type
CO
Includes
Screw
Standards
UL Listed
Alarm Type
Audible and Visual
Power Required
9 to 32V DC
Color
White
Display
No
Status Indicator
LED
Number of Channels
2
Connection
Wire Harness
Product Type
Fixed Gas Detector
Output Channels
2
Power Source
Wire Harness
Measurement Range
Carbon Monoxide (0 to 400 ppm)
Visual Alert Type
Amber LED, Green LED, Red LED
Number of Relays
2
Coverage Area
900 sq ft
Operating Temperature - Minimum
40 Degrees F
Operating Temperature - Maximum
100 Degrees F
Alert Type
Light, Sound
Output Current
15 mA @ 9 to 32 V (Normal); 35 mA @ 9 to 32 V (Alarm)
Sensor Life
10 yr
Market
Commercial
Number of Gases Detected
1
Mount Type
Mid-Plate
Housing Color
White
Sensor Type
Electrochemical
Input Channels
2
Alarm Volume Level
85 dBA
Includes Mounting Hardware
Yes
Ties Into
Burglary Alarm Panels, Fire Alarm Panels
Voltage
9 to 32V DC
Operating Voltage
9 to 32V DC

Description

Fixed Gas Detector, For Use With Fire and Security Systems, Gas Detected Carbon Monoxide, Standards UL Listed, Includes Screw, Product Type Fixed Gas Detector, Mounting Location Flush, Surface, Number of Relays 2, Sensor Type Electrochemical, Visual Alert Type Amber LED, Green LED, Red LED, Operating Temperature - Minimum 40 Degrees F, Operating Temperature - Maximum 100 Degrees F, Number of Gases Detected 1, Coverage Area 900 sq ft, Power Source Wire Harness, Mount Type Mid-Plate
